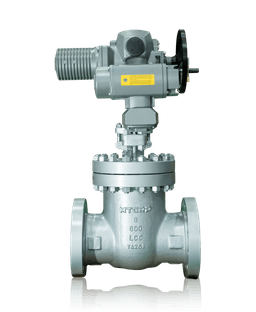

MT Group Gate Valve – 2" Class 150 RF, Bolted Bonnet, WCB Body, CA15 Disc, F6a Stem

The MT Group 2-inch Class 150 gate valve is a compact and high-integrity valve engineered for dependable shutoff in industrial pipeline systems. Featuring a robust A216 WCB carbon steel body and raised face flanged (RF) ends, this valve is equipped with a bolted bonnet and a flexible wedge design for effective sealing under fluctuating thermal conditions. The disc is made from A217 CA15 stainless steel, providing excellent resistance to corrosion and erosion. The seat features a combination of A105N carbon steel with Stellite 6 (STL.6) overlay, ensuring extended service life and sealing integrity. An A182 F6a stainless steel stem adds superior strength and corrosion resistance. This valve is ideal for use in water, oil, steam, and general-purpose industrial flow control systems.

Specifications:

– Manufacturer: MT Group
– Valve Type: Gate Valve
– Size: 2 inches
– Pressure Class: ANSI Class 150
– End Connection: Raised Face (RF) Flanged
– Operation: Handwheel (HW)
– Bonnet Type: Bolted Bonnet
– Disc Type: Flexible Wedge
– Body Material: ASTM A216 WCB (Carbon Steel)
– Disc Material: ASTM A217 CA15 (Stainless Steel)
– Seat Material: ASTM A105N + STL.6 (Stellite Overlay)
– Stem Material: ASTM A182 F6a (13% Cr Stainless Steel)
– Design Standard: API 600
– Face-to-Face Standard: ASME B16.10
– Flange Standard: ASME B16.5
– Pressure-Temperature Rating: ASME B16.34
