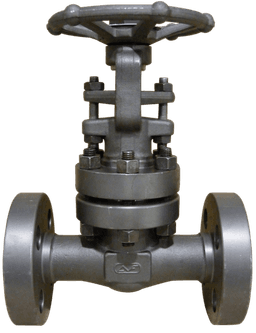

3/4" Gate Valve #1500 – A105N, FNPT Ends, Trim 8, LVF Valves

The LVF 3/4" Gate Valve is a precision-engineered forged steel valve rated for Class 1500 pressure applications. It features a rugged A105N carbon steel body and Trim 8 seating surfaces for optimal sealing performance and extended durability under high pressure. Designed with a rising stem (OS&Y) for visible valve position and a bolted bonnet for service access, it includes FNPT threaded ends for convenient connection in piping systems. This valve is suitable for use in sour service applications as it complies with NACE MR0103 and MR0175 standards. Operated via a manual handwheel, this valve is ideal for demanding industrial environments including oil & gas, petrochemical, and process systems.

Specifications:

– Valve Type: Gate Valve
– Size: 3/4 inch
– Pressure Class: Class 1500
– Body Material: ASTM A105N (Forged Carbon Steel)
– Trim: Trim 8 (A105N with STL.6 Hard-Faced Seats)
– Ends: FNPT – Female NPT Threaded Ends
– Stem Type: Rising Stem – OS & Y (Outside Screw and Yoke)
– Bonnet Type: Bolted Bonnet (BB)
– Operator: Manual Handwheel
– Design Standard: API 602 / ASME B16.34
– Thread Standard: ASME B1.20.1
– NACE Compliance: MR0103 / MR0175 – suitable for sour service
– Application: High-pressure shut-off service in critical systems
– Manufacturer: LVF Valves
