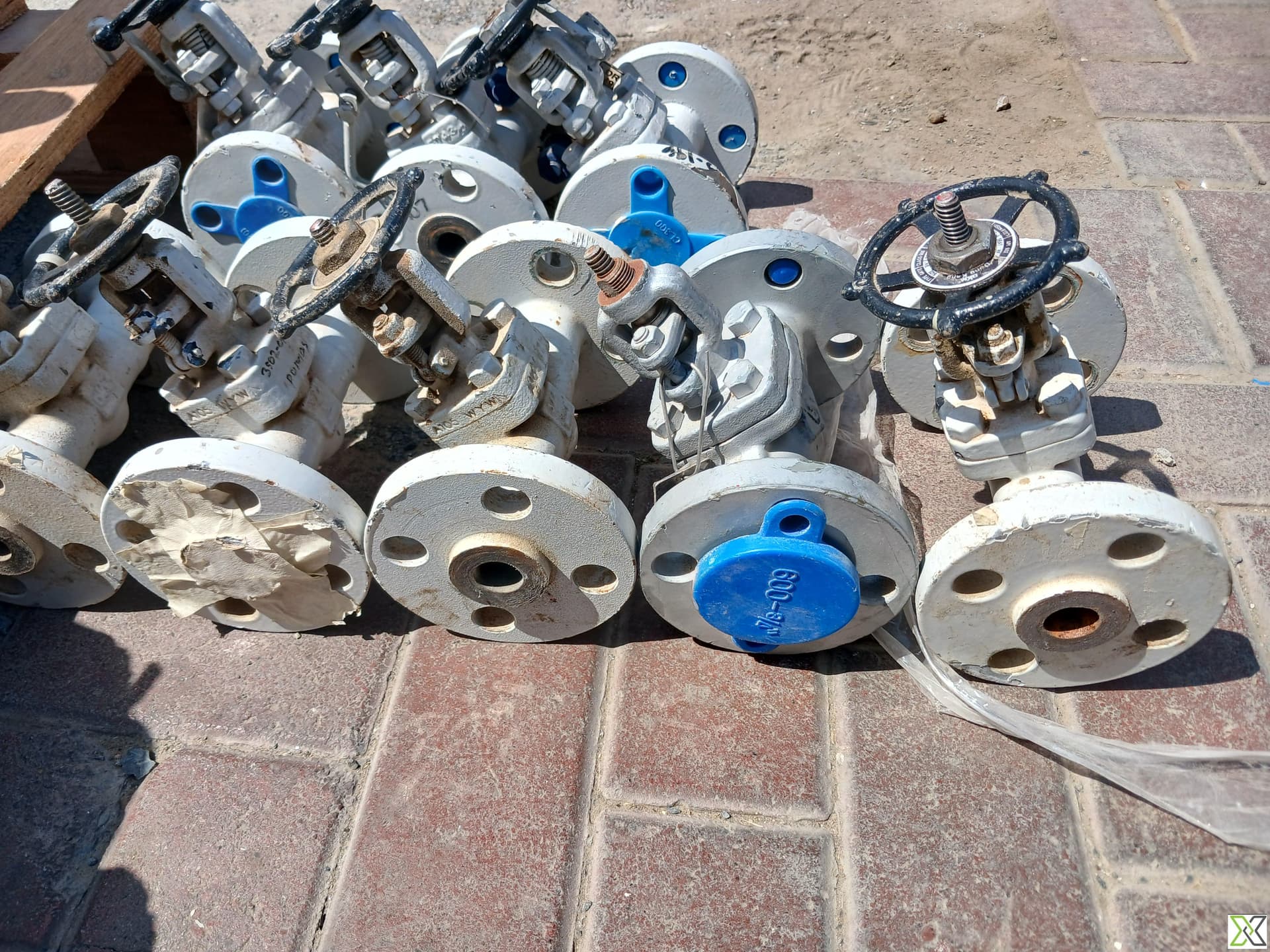

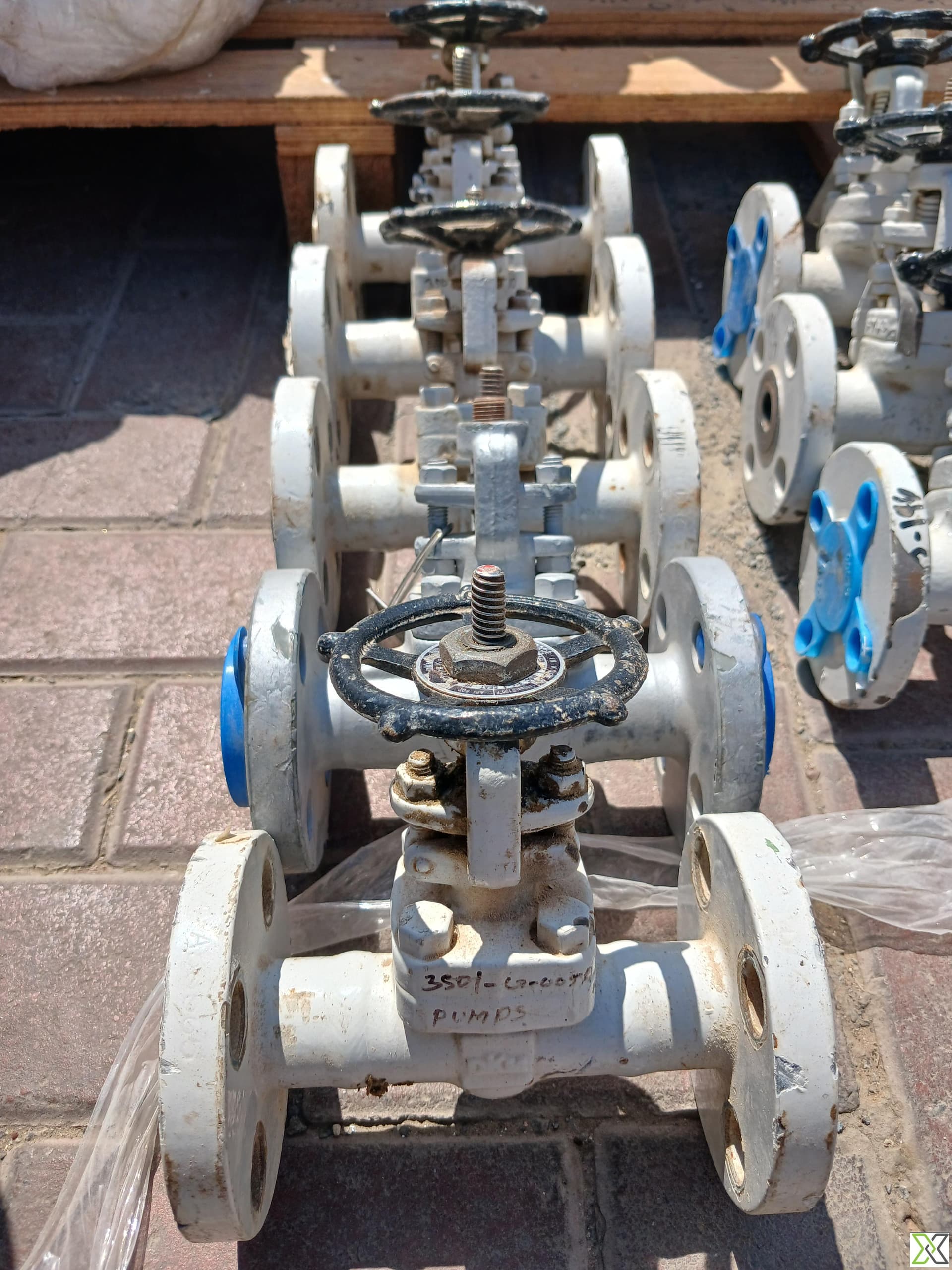

¾" Forged Steel Gate Valve – OS&Y, Class 600, Flanged Ends, API 602

This ¾-inch forged steel gate valve features an Outside Screw & Yoke (OS&Y) design with a bolted bonnet and ANSI B16.5 Class 600 raised face flanged ends. Constructed from A105N normalized carbon steel, it is engineered for robust industrial use where high-pressure performance is essential. Designed in accordance with API 602 and face-to-face dimensions per ASME B16.10, this valve ensures reliable, bidirectional shutoff through metal-to-metal seating. Operation is manual via a handwheel, and sealing integrity is maintained with a spiral wound bonnet gasket. The valve meets API 598 leakage test standards and is ideal for general purpose, high-pressure service lines.

Specifications:

– Design: Gate Valve, OS&Y (Outside Screw & Yoke)

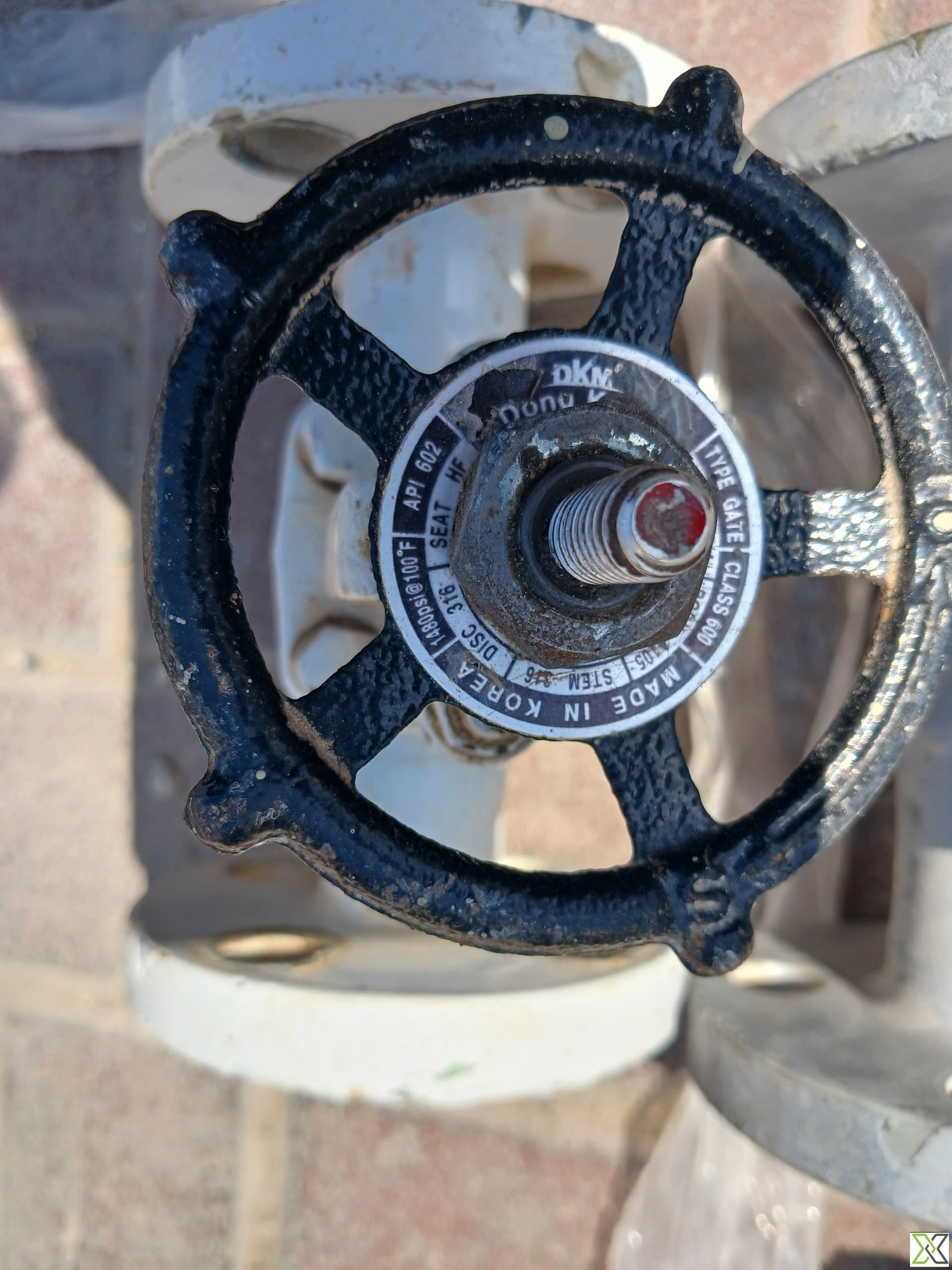

– Operation: Manual Handwheel
– Flow Direction: Bidirectional
– Sealing Type: Metal-to-metal
– Leakage Class: API 598 compliant
– Body Material: ASTM A105N – Forged Carbon Steel (Normalized)
– Bonnet Type: Bolted Bonnet
– Bonnet Gasket: Spiral Wound (suitable for Class 600)
– Face-to-Face: As per ASME B16.10
– Type: Flanged Ends
– Flange Standard: ANSI B16.5 Raised Face
– Pressure Class: Class 600
– Max Working Pressure: 1975 PSI @ 100°F (136 bar @ 38°C)
– Valve Design: API 602
– Flanged Ends: ANSI B16.5
– Face-to-Face Dimension: ASME B16.10
– Testing Standard: API 598
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
