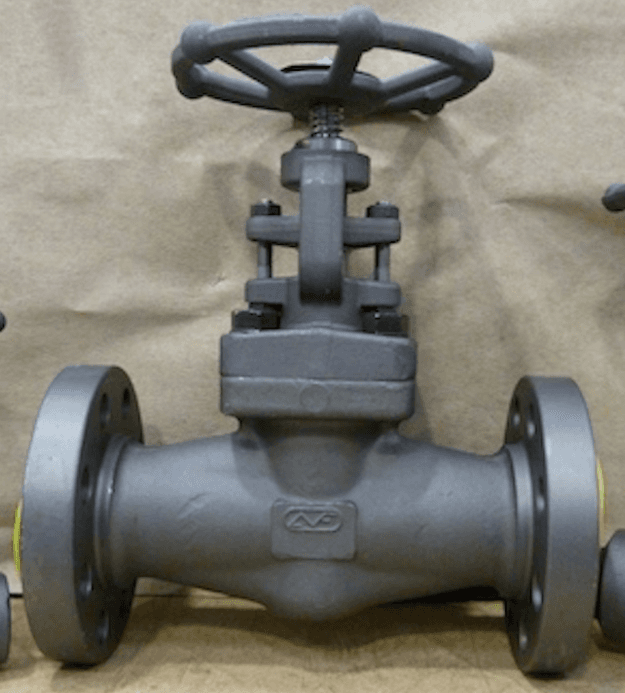

Globe Valve 1" Class 800 – LVF A105N FNPT Trim 8, Handwheel Operated
The LVF 1" #800 Globe Valve is a durable and high-pressure valve designed for fluid control in critical process systems. Constructed from forged A105N carbon steel, this valve features FNPT (female pipe thread) end connections, a reduced bore (RB) for throttling efficiency, and Trim 8 components that ensure reliability in harsh environments. The valve is equipped with a bolted bonnet (BB), OS&Y (Outside Screw & Yoke) design, and a handwheel operator for precise manual control. Its compliance with NACE MR0103 and MR0175 makes it ideal for sour gas and corrosive applications across oil & gas, chemical, and industrial sectors.
Specifications:
– Valve Type: Globe Valve
– Size: 1 inch
– Pressure Class: 800
– Body Material: A105N Forged Carbon Steel
– End Connections: FNPT (Female NPT Threads)
– Bore Type: Reduced Bore (RB)
– Trim Type: Trim 8
– Bonnet Type: Bolted Bonnet (BB)
– Stem Design: OS&Y (Outside Screw & Yoke)
– Operator: Handwheel
– Standards Compliance: NACE MR0103 / MR0175
– Typical Applications: Oil & gas, petrochemical, process piping, sour gas environments
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
