Hydraulic Hose Reel Skid – Manual Valve Control with Lubricated Gear-Driven Drum

ReflowX SKU: REF-7615

Product Details

Quantity

1
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Skid-mounted hydraulic hose reel featuring manual lever-type control valves and a gear-driven drum with lubricated casing for smooth and reliable operation.

Description

Hydraulic Hose Reel Skid – Manual Valve Control with Lubricated Gear-Driven Drum

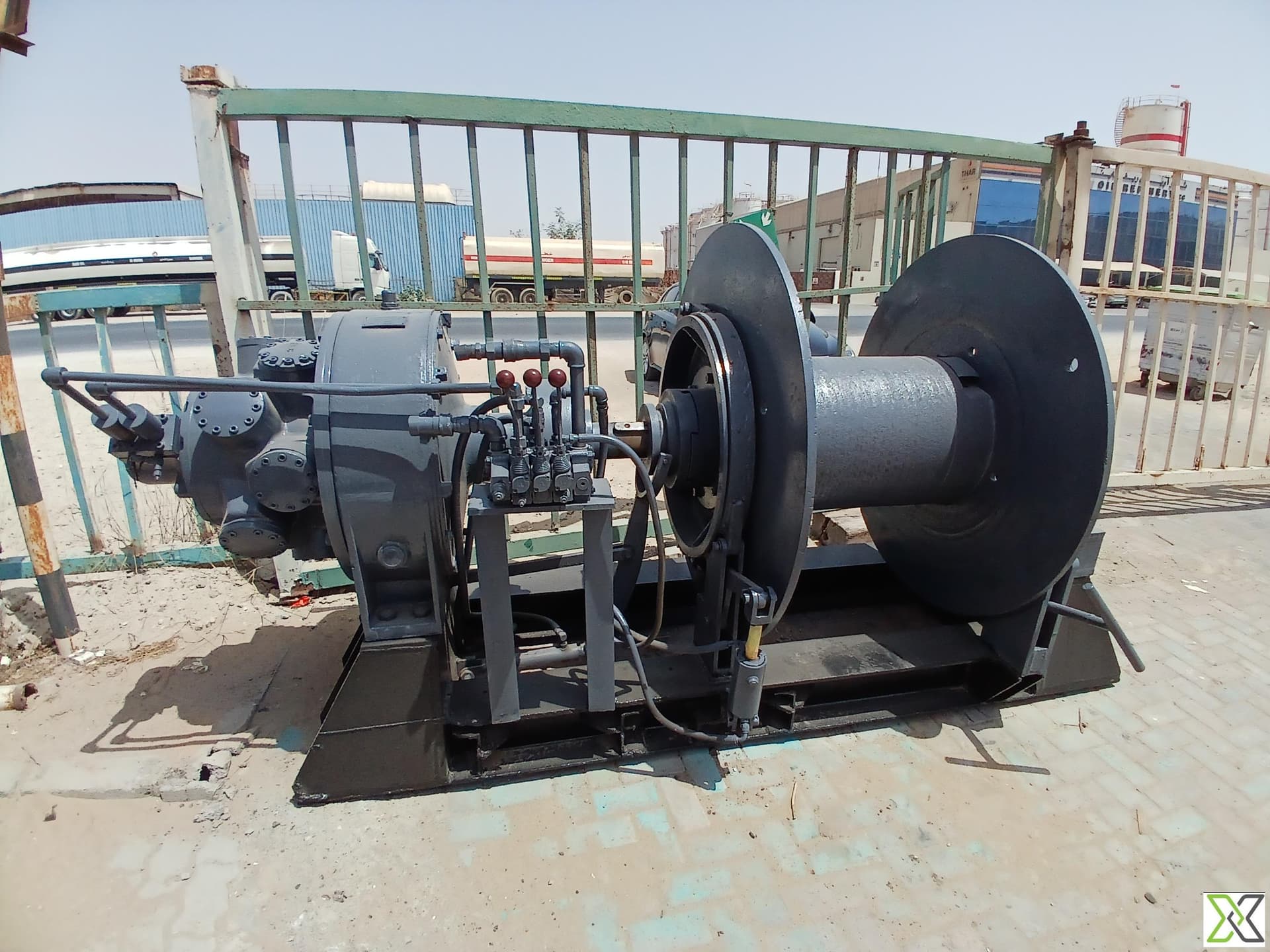

This Hydraulic Hose Reel Skid unit is designed for efficient and durable fluid handling in industrial and mobile applications. Mounted securely on a skid base, the reel provides easy deployment and retrieval of hydraulic hoses. Manual lever-type hydraulic control valves offer precise and straightforward control of hose flow and pressure, allowing operators to manage operations safely and effectively. The drum drive is gear-driven, enclosed within a lubricated casing to ensure long-lasting performance and minimal wear. The lubrication plate indicates a viscosity of 10°E at 50°C, with an oil quantity of 7.5 kg to maintain optimal gear function and protection.

Specifications:

– Equipment Type: Hydraulic Hose Reel Unit
– Mounting: Skid-mounted
– Control Type: Manual lever-type hydraulic control valves
– Drive Type: Gear-driven drum with lubricated casing
– Lubrication Viscosity: 10°E @ 50°C
– Oil Quantity in Gear Casing: 7.5 kg
– Drum Material: Not specified (typically steel or heavy-duty metal)
– Hose Capacity: Not specified (depends on hose size and length)
– Operating Pressure: Not specified (typical hydraulic hose operating range applies)
– Operating Temperature Range: Not specified
– Flow Direction: Bi-directional (typical for hose reels)
– Manual Operation: Yes
– Condition: Used
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	630 mm
Width	620 mm
Length	800 mm
Weight	50 kg
Design Specification	Gear-driven drum
Failure Action	Manual valves hold
Fluid Name	Hydraulic/mineral oil
Full Opening Valve	Yes
Nominal Diameter	½–2" hose
Normal Operating Pressure	600 bar
Normal Operating Temperature	–20 °C to +107 °C
Piping Class	Hydraulic fitting standard
