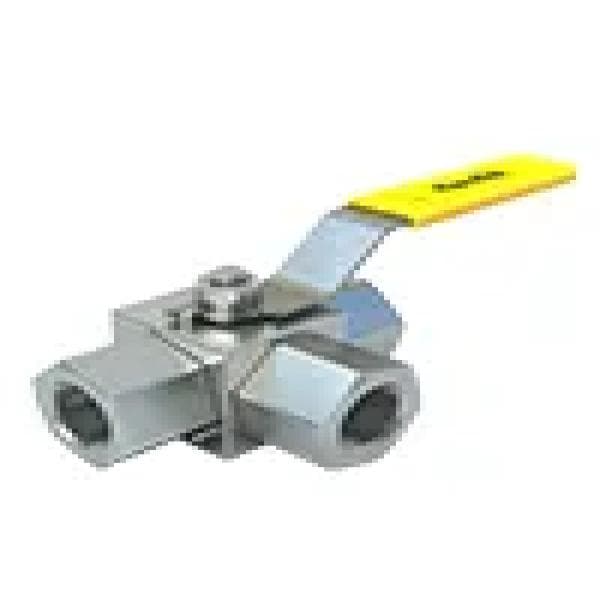

Multi-Port Ball Valve – Series 3HP (Bray), High Pressure, 3-Way, Threaded Ends

The Bray Series 3HP Multi-Port Ball Valve is engineered for high-pressure applications that require precise directional control of flow. Featuring a 3-way configuration (L-port or T-port), this valve offers flexible routing of media through a compact body with threaded NPT ends. The 3HP series is ideal for mixing, diverting, or distributing fluids in high-pressure industrial systems.

Constructed from stainless steel, the valve features a rugged body design for increased strength and corrosion resistance. The full port construction allows for minimal pressure drop, and PTFE seats ensure excellent chemical compatibility and sealing performance. The 3HP also incorporates a blowout-proof stem design and a manual lever handle with safety lockout options.

Compact and reliable, this valve series is especially suited for hydraulic systems, chemical lines, and general industrial use where space, pressure, and flow flexibility are all critical.

Specifications:

– Valve Type: High-pressure multi-port ball valve
– Series: 3HP (Bray)
– Port Configuration: 3-way (L-port or T-port)
– Size Range: 1/4” to 1”
– End Connections: NPT threaded ends
– Body Material: Stainless steel (CF8M or equivalent)
– Ball Port: Full port
– Pressure Rating: Up to 3000 psi (model-specific)
– Seat Material: PTFE
– Stem: Blowout-proof, anti-static design
– Operation: Manual lever (lockable), actuator mounting optional
– Temperature Range: -29°C to +200°C (depending on seat and seal material)
– Applications: Hydraulic systems, high-pressure process lines, gas and liquid diversion or mixing

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
