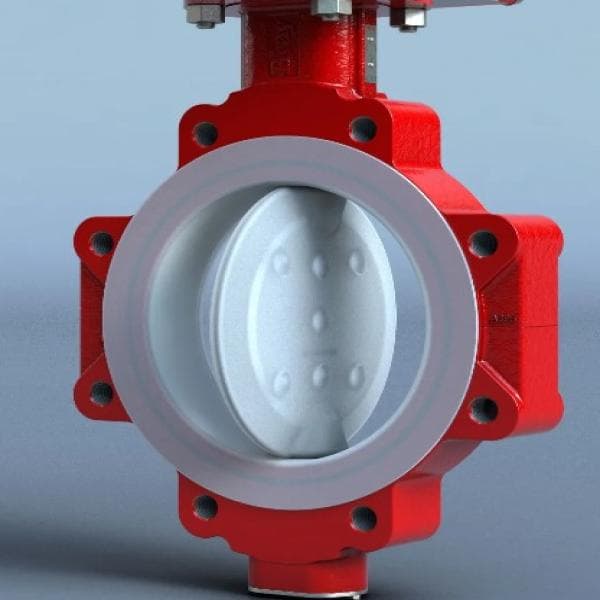

PFA Lined Butterfly Valve – Acris® Series 24/25, High Purity, Anti-Corrosive

Product Details

Quantity

100
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition
OEM

Bray International
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Premium PFA-lined butterfly valve for ultra-pure and corrosive media applications. Acris® Series 24 (wafer type) and Series 25 (lug type) designed for high chemical resistance, reliability, and durability.

Description

PFA Lined Butterfly Valve – Acris® Series 24/25, High Purity, Anti-Corrosive

The PFA Lined Butterfly Valve Acris® Series 24/25 is engineered for the most demanding corrosive and ultra-pure service environments. This valve features a fully molded, chemically bonded PFA liner that provides superior resistance to nearly all chemicals, making it ideal for semiconductor, chemical processing, and pharmaceutical industries.

The valve body is made of ductile iron or stainless steel with precision PFA lining to withstand aggressive media. The disc is also fully encapsulated in PFA, ensuring a contamination-free, leak-tight performance with extremely low friction during operation. The Acris® design ensures zero cavities and no media entrapment, enhancing safety and cleanliness in sensitive processes.

Available in wafer (Series 24) and lug (Series 25) configurations, the valve complies with international standards and is designed for both manual and automated actuation. The smooth, non-stick PFA surface eliminates buildup, while the robust seat ensures tight shutoff even under vacuum or pressure fluctuations.

Specifications:

– Valve Type: PFA Lined Butterfly Valve
– Series: Acris® 24 (Wafer), Acris® 25 (Lug)
– Size Range: 2" to 12" (DN50 to DN300)
– Body Material: Ductile Iron ASTM A536 / Stainless Steel
– Lining Material: Injection-molded virgin PFA
– Disc Material: Ductile Iron or SS encapsulated in PFA
– Shaft Material: AISI 316 / 17-4 PH Stainless Steel
– Pressure Rating: 10 bar (150 PSI)
– Temperature Range: -20°C to +200°C
– End Connection: Wafer & Lug – ANSI 150# / EN 1092 PN10/PN16 compatible
– Face-to-Face: ISO 5752 (Short Pattern)
– Design Standard: ISO 5211, EN 593, API 609
– Seat: PFA-encapsulated, bubble-tight shutoff
– Operation: Manual, Pneumatic, Electric, or Hydraulic actuators
– Clean Service: Suitable for ultrapure chemical, deionized water, semiconductor processes
– Leakage Class: Zero leakage (Bubble-tight)
– Applications: Chemical processing, semiconductor, pharmaceutical, demineralized water, acid and caustic fluid handling

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
