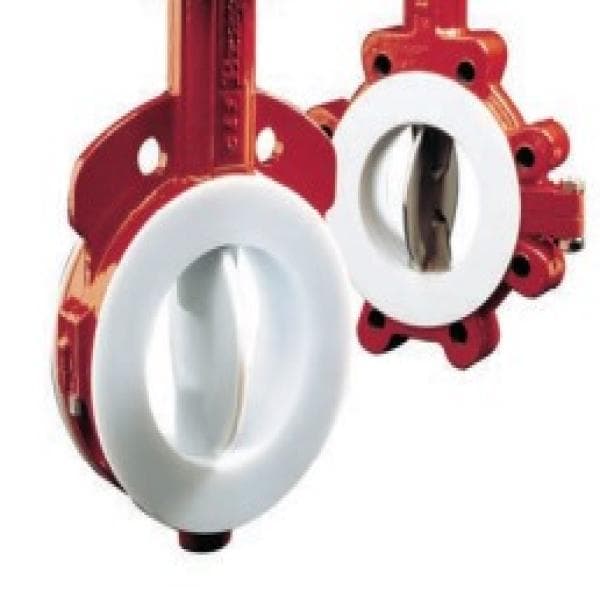

PTFE Lined Butterfly Valve – Series 22/23, Chemical Resistant, Lug & Wafer Type

The PTFE Lined Butterfly Valve Series 22/23 is specifically engineered for use in highly corrosive and aggressive fluid service conditions. Designed with a full bore body, integrally molded PTFE seat, and a polished disc surface, this valve provides exceptional sealing performance and chemical resistance.

The valve’s robust construction features a ductile iron or stainless steel body fully encapsulated with PTFE lining, ensuring maximum protection against corrosive media such as acids, alkalis, and solvents. Its low-friction, non-stick PTFE surfaces allow for smooth operation, reduced torque, and extended service life, even in the most challenging environments.

Series 22 (wafer type) and Series 23 (lug type) offer versatility for installation in ANSI 150 flanged pipelines and are suitable for manual or automated actuation. With a leak-tight shutoff and bubble-tight performance, this valve is a top choice for chemical plants, water treatment facilities, and pharmaceutical industries.

Specifications:

– Valve Type: PTFE Lined Butterfly Valve
– Series: 22 (Wafer), 23 (Lug)
– Size Range: 2" to 24" (DN50 to DN600)
– Body Material: Ductile Iron ASTM A536 or Stainless Steel
– Liner/Seat Material: Virgin PTFE (Teflon), PFA optional
– Disc Material: Stainless Steel (A351 CF8M) with PTFE/PFA coating
– Shaft Material: SS AISI 316 / 17-4 PH
– Pressure Rating: 150 PSI (PN10/PN16 compatible)
– Temperature Range: -29°C to +200°C
– End Connection: Wafer & Lug, compatible with ASME B16.5 150# flanges
– Face-to-Face Dimension: As per ISO 5752
– Design Standard: API 609, ISO 5211, ASME B16.34
– Leakage Class: Bubble-tight shutoff
– Actuation Options: Manual (lever/gear), Pneumatic, Electric, Hydraulic
– Fire Safe: Not applicable (non-metallic lining)
– Applications: Chemical processing, acid handling, wastewater, pharmaceutical, corrosive fluid transport
