Short Description

Bray Series 30 (wafer) and 31 (lug) resilient seated butterfly valves with ISO 5211 mounting pad, ductile iron body, and elastomer-lined seal. Designed for tight shutoff and reliable automated or manual operation.

Description

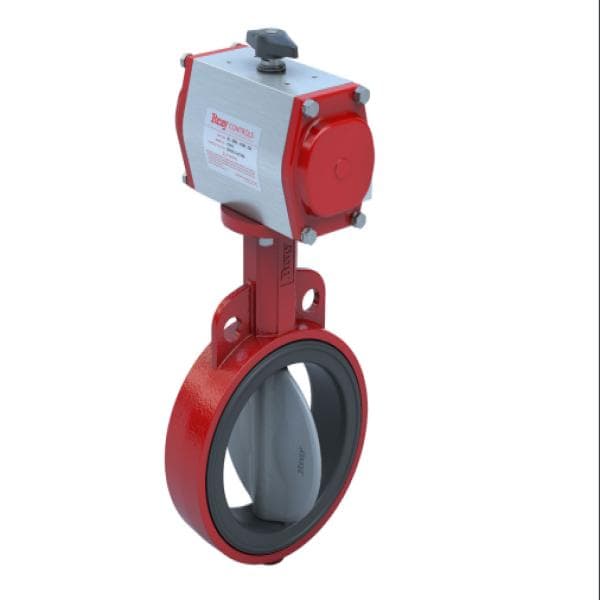

Resilient Seated Butterfly Valve – Series 30/31 (Bray), Wafer & Lug Style, Actuator-Ready

The Bray Series 30 and 31 Resilient Seated Butterfly Valves provide high-performance flow control in both manual and automated systems. Designed for dependability and ease of installation, Series 30 (wafer) and Series 31 (lug) models feature a robust epoxy-coated ductile iron body with concentric disc and resilient seat for bubble-tight shutoff in both directions.

Engineered with an ISO 5211 actuator mounting pad, these valves accommodate direct mounting of Bray pneumatic or electric actuators, enhancing automation efficiency. The high-strength stem design, blowout-proof shaft, and replaceable seat and bushings contribute to extended service life and low maintenance.

With full compliance to industry flange standards and a wide range of disc and seat materials, Series 30/31 valves are ideal for HVAC, water treatment, fire protection, and process piping systems requiring precise shutoff and throttling performance.

Specifications:

– Valve Type: Resilient seated butterfly valve
– Series: 30 (Wafer), 31 (Lug)
– Size Range: 2” to 48”
– Body Material: Ductile iron (ASTM A536), fusion bonded epoxy-coated
– Disc Options: 316 stainless steel, aluminum bronze, nylon-coated ductile iron
– Seat Options: EPDM, NBR, Viton®, other elastomers
– Pressure Rating: 200 psi (standard), size-dependent
– Temperature Range: -29°C to +120°C (depending on seat material)
– Mounting: ISO 5211 actuator mounting pad
– End Connections: ANSI 125/150 flange compatibility
– Operation: Manual lever/gear or Bray pneumatic/electric actuator
– Features: Bi-directional bubble-tight shutoff, blowout-proof stem, field-replaceable seat
– Applications: Water, wastewater, chemical processing, HVAC, fire systems
