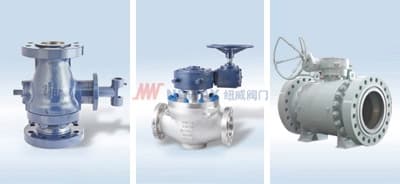

Trunnion Mounted Ball Valve – 3", Full Bore, Class 600, Neway

The Neway 3" Class 600 trunnion mounted ball valve is engineered for reliable shut-off performance in high-pressure applications across oil & gas, chemical, and utility sectors. Featuring a full bore design, this valve reduces flow resistance and minimizes pressure drop. The forged A105N carbon steel body delivers structural strength, while the F316 stainless steel ball and stem ensure corrosion resistance in aggressive media. RPTFE seats offer excellent sealing performance and chemical compatibility. Equipped with raised face flanges for easy integration, this valve complies with major international standards and includes safety features like anti-static design and blowout-proof stem construction.

Specifications:

– Valve Type: Trunnion Mounted Ball Valve
– Size: 3 inch
– Bore: Full Bore (FB)
– Pressure Rating: Class 600 (ANSI B16.5)
– Body Material: Forged Carbon Steel A105N
– Seat Material: RPTFE (Reinforced PTFE)
– Ball Material: F316 Stainless Steel
– Stem Material: F316 Stainless Steel
– End Connection: Flanged, Raised Face (RF)
– Design Code: API 6D / ASME B16.34
– Face-to-Face: ASME B16.10
– Fire Safe Option: API 607 (on request)
– Stem Features: Blowout-proof and anti-static
– Operation: Manual or Actuator Ready
– Application Areas: Oil & Gas, Petrochemical, Refinery, High-Pressure Fluid Systems
– Model Code: BS-V5
– Manufacturer: Neway Valve Co., Ltd.
