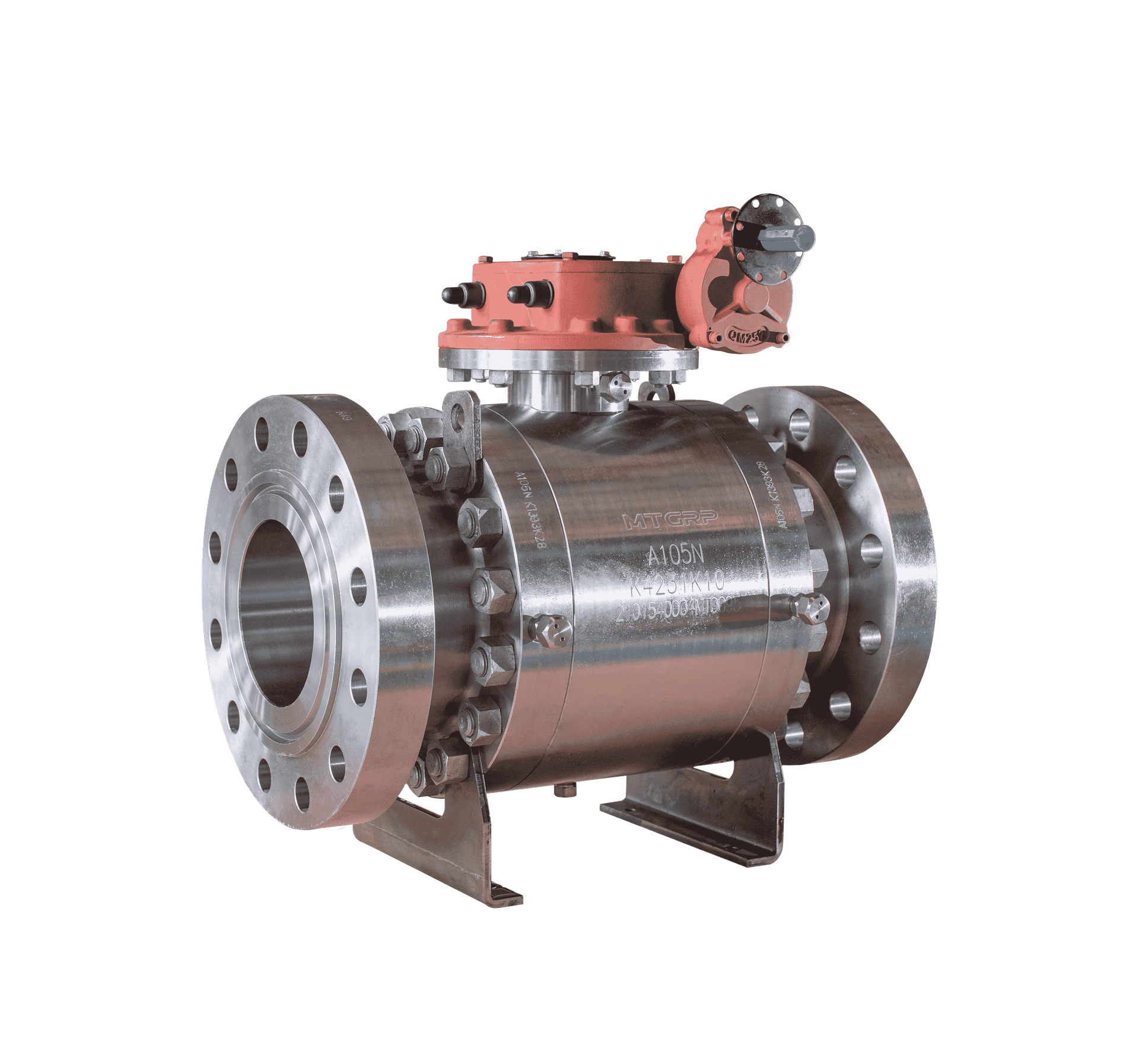

Trunnion Gear Operated Ball Valve: 4" #900 (MT Group)
The MT Group Trunnion Gear Operated Ball Valve is engineered for demanding high-pressure systems, offering reliable shut-off performance. This 4-inch, Class 900 valve features a forged A105N carbon steel body and a split-body, side-entry design for enhanced structural integrity. It includes an A182 F316 stainless steel ball and stem, with matching A182 F316 seats for superior corrosion resistance and durability. Designed with RTJ (Ring-Type Joint) flanged ends, this valve ensures tight, leak-proof sealing in critical pipeline applications. The gear-operated mechanism enables smooth, controlled operation even under high pressure, making it ideal for petrochemical, oil & gas, and industrial process applications.
Specifications:
– Valve Type: Trunnion-mounted ball valve
– Operation: Gear-operated
– Size: 4 inch
– Pressure Class: 900#
– Body Material: ASTM A105N (Forged Carbon Steel)
– Ball Material: ASTM A182 F316 (Stainless Steel)
– Seat Material: ASTM A182 F316 (Stainless Steel)
– Stem Material: ASTM A182 F316 (Stainless Steel)
– Body Design: Split body, side entry
– End Connection: Ring-Type Joint (RTJ) Flanged
– Face-to-Face: ASME B16.10
– Flange Standard: ASME B16.5
– Design Standard: API 6D / ASME B16.34
– Temperature Rating: As per ASME B16.34 Class 900
– Applications: High-pressure oil & gas systems, petrochemical units, offshore facilities, refineries
