Trunnion Gear Operated Ball Valve 6" #900 RTJ – MT Group

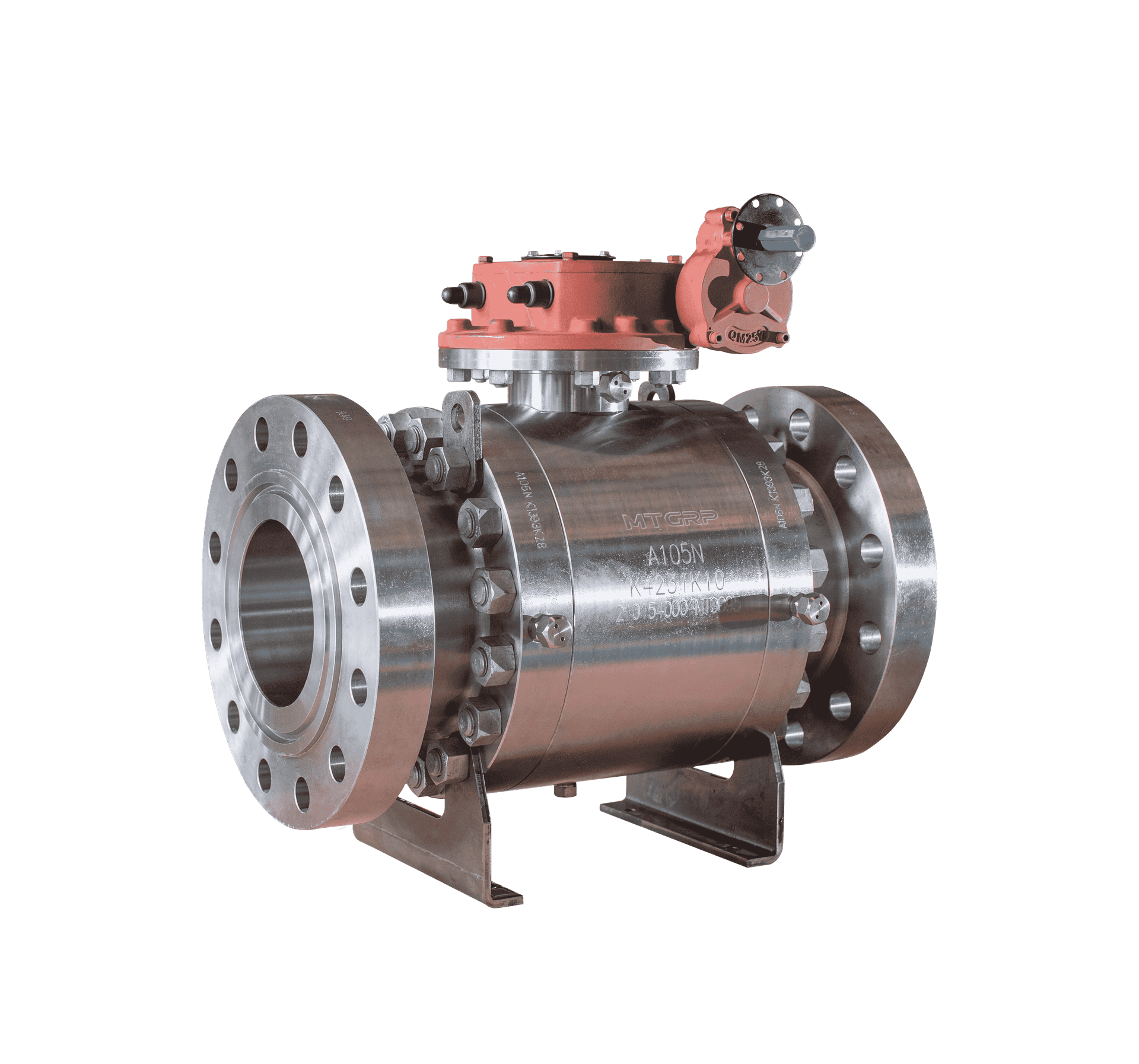

The MT Group 6" Trunnion Gear Operated Ball Valve is a precision-engineered valve designed for high-pressure fluid handling systems. Rated for ANSI Class 900, this valve features a forged ASTM A105N carbon steel body with a split-body, side-entry configuration, offering superior mechanical strength and ease of maintenance. Internally, it is equipped with an ASTM A182 F316 stainless steel ball, seat, and stem, providing exceptional resistance to corrosion and ensuring reliable shut-off in harsh environments. The valve employs a ring-type joint (RTJ) flanged end connection for high-integrity sealing in demanding pipeline systems. Ideal for oil and gas, petrochemical, and industrial utility applications.

Specifications:

– Valve Type: Trunnion-mounted ball valve
– Operation: Gear-operated
– Size: 6 inch
– Pressure Class: 900#
– Body Material: ASTM A105N (Forged Carbon Steel)
– Ball Material: ASTM A182 F316 (Stainless Steel)
– Seat Material: ASTM A182 F316 (Stainless Steel)
– Stem Material: ASTM A182 F316 (Stainless Steel)
– Body Design: Split body, side entry
– End Connection: RTJ (Ring-Type Joint) Flanged
– Face-to-Face: ASME B16.10
– Flange Standard: ASME B16.5
– Design Standard: API 6D / ASME B16.34
– Temperature Rating: As per ASME B16.34 Class 900
– Applications: Oil & gas pipelines, petrochemical plants, refineries, high-pressure industrial utilities

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
