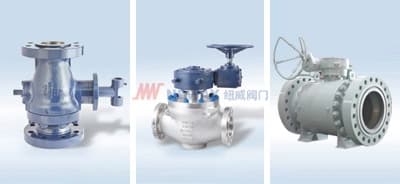

Trunnion Gear Operated Ball Valve – 8", Full Bore, Class 600, Neway

The Neway 8" Full Bore Class 600 Trunnion Gear Operated Ball Valve is a high-performance industrial valve engineered for safe and reliable control of high-pressure process flows. Built with a forged A105N carbon steel body for enhanced strength and pressure containment, it features a trunnion-mounted F316 stainless steel ball and stem to provide smooth operation and corrosion resistance. RPTFE seats ensure tight shut-off and chemical compatibility. The gear operator ensures controlled and precise actuation, making this valve ideal for oil & gas, petrochemical, and industrial utility services. Designed to API and ASME standards, the valve is suited for heavy-duty applications where durability and tight sealing are critical.

Specifications:

– Valve Type: Trunnion Mounted Ball Valve
– Operation: Gear Operated
– Size: 8 inch
– Bore: Full Bore (FB)
– Pressure Rating: Class 600 (ANSI B16.5)
– Body Material: Forged Carbon Steel A105N
– Seat Material: RPTFE (Reinforced PTFE)
– Ball Material: F316 Stainless Steel
– Stem Material: F316 Stainless Steel
– End Connection: Flanged, Raised Face (RF)
– Design Standard: API 6D / ASME B16.34
– Face-to-Face Dimension: ASME B16.10
– Fire Safe Design: Optional, API 607 Compliant
– Stem Design: Blowout-proof, anti-static
– Model Code: BS-V5
– Manufacturer: Neway Valve Co., Ltd.
– Applications: Oil & Gas pipelines, refineries, chemical processing, industrial utilities

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
