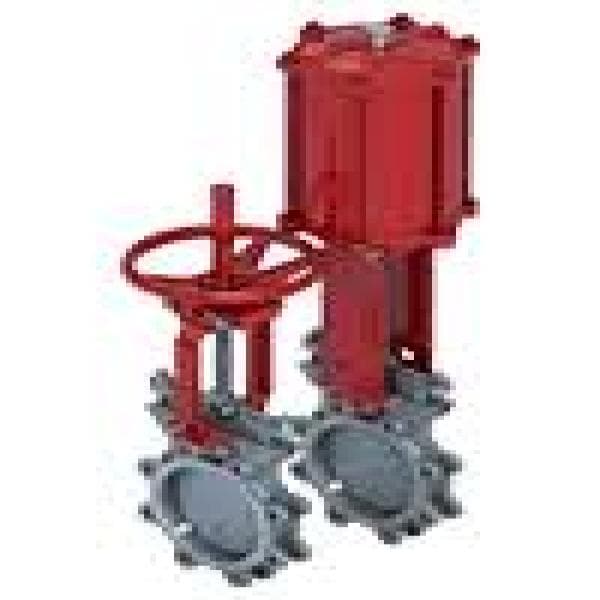

Unidirectional Knife Gate Valve – Series 940, Lug Style Slurry Isolation Valve

The Series 940 Unidirectional Knife Gate Valve is purpose-built for one-directional shutoff of thick slurries, bulk materials, and media with high solids content. Featuring a lug-style body, it allows dead-end service and easy maintenance in demanding industrial settings.

Designed for industries such as mining, chemical processing, wastewater, and power, the Series 940 offers rugged performance with minimal maintenance. The gate is guided and supported to maintain tight shutoff, while the body is engineered for high structural integrity under pressure.

Specifications:

– Valve Type: Unidirectional Knife Gate Valve
– Model Series: 940
– Flow Direction: One-way shutoff (tight seal upstream side)
– Body Type: Lug style (for dead-end service)
– Sizes Available: 2" to 48" (DN50 to DN1200)
– Body Material: Cast iron, ductile iron, carbon steel, stainless steel
– Gate Material: Stainless steel (304, 316), duplex, or other alloys
– Seat Options: Resilient (EPDM, NBR, PTFE) or metal-to-metal
– End Connections: ANSI B16.5 Class 150 flange drilling or EN1092
– Pressure Rating:
 – Up to 150 psi (10 bar) depending on size and material
– Temperature Range: -10°C to +200°C (based on seat selection)
– Actuation Options:
 – Manual handwheel
 – Pneumatic actuator
 – Electric actuator
 – Hydraulic cylinder
– Design Features:
 – Unidirectional shutoff
 – Full bore, low-pressure drop
 – Heavy-duty gate guides
 – Resilient seat molded in or field replaceable
 – Optional flush ports for cleaning buildup
 – Designed for slurry, pulp, mining tailings, and abrasive media

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
