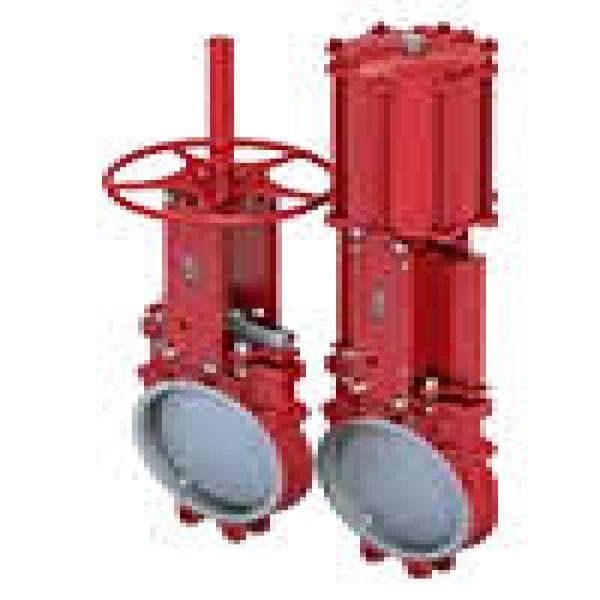

Unidirectional Knife Gate Valve – Series 950, Heavy-Duty Slurry Isolation Valve

Product Details

Quantity

100
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition
OEM

Bray International
Equipment code

CFIHOS-30000649

Get Quotation Whatsapp

Short Description

Robust unidirectional knife gate valve designed for reliable slurry and solids handling, featuring rugged construction and zero-leakage shutoff in the flow direction.

Description

Unidirectional Knife Gate Valve – Series 950, Heavy-Duty Slurry Isolation Valve

The Series 950 Unidirectional Knife Gate Valve is engineered for demanding slurry, pulp, or bulk material isolation applications where dependable one-way flow control is essential. Its heavy-duty body and gate materials allow for long service life in abrasive and corrosive conditions, while the precision-machined gate and resilient seat deliver tight shutoff in the flow direction.

This valve is ideal for industrial processes such as mining, pulp & paper, wastewater treatment, and chemical processing where unidirectional flow isolation is preferred. Available in a variety of sizes, materials, and actuation types, the Series 950 is a rugged and reliable solution for isolation of thick, particulate-laden fluids.

Specifications:

– Valve Type: Unidirectional Knife Gate Valve
– Model Series: 950
– Sizes: 2" to 48" (DN50 to DN1200)
– Body Material: Ductile iron, carbon steel, stainless steel
– Gate Material: Stainless steel (304, 316), or custom alloys
– Seat Type: Resilient (EPDM, NBR, PTFE) or metal-to-metal
– Sealing: Tight shutoff in one direction (upstream)
– End Connections: Flanged ends to ANSI B16.5 Class 150 or EN1092
– Pressure Rating: Up to 150 psi (10 bar)
– Temperature Range: -10°C to +200°C (depending on seat material)
– Actuation Options:
– Manual handwheel
– Pneumatic cylinder
– Electric actuator
– Hydraulic actuator
– Features:
– Rigid body design for high-pressure service
– Full-bore port to reduce pressure drop
– Bottom flush ports optional
– Low-maintenance design
– Optional deflector cone for slurry deflection
– Typical Media: Slurry, ash, pulp, grit, mining tailings, wastewater

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
