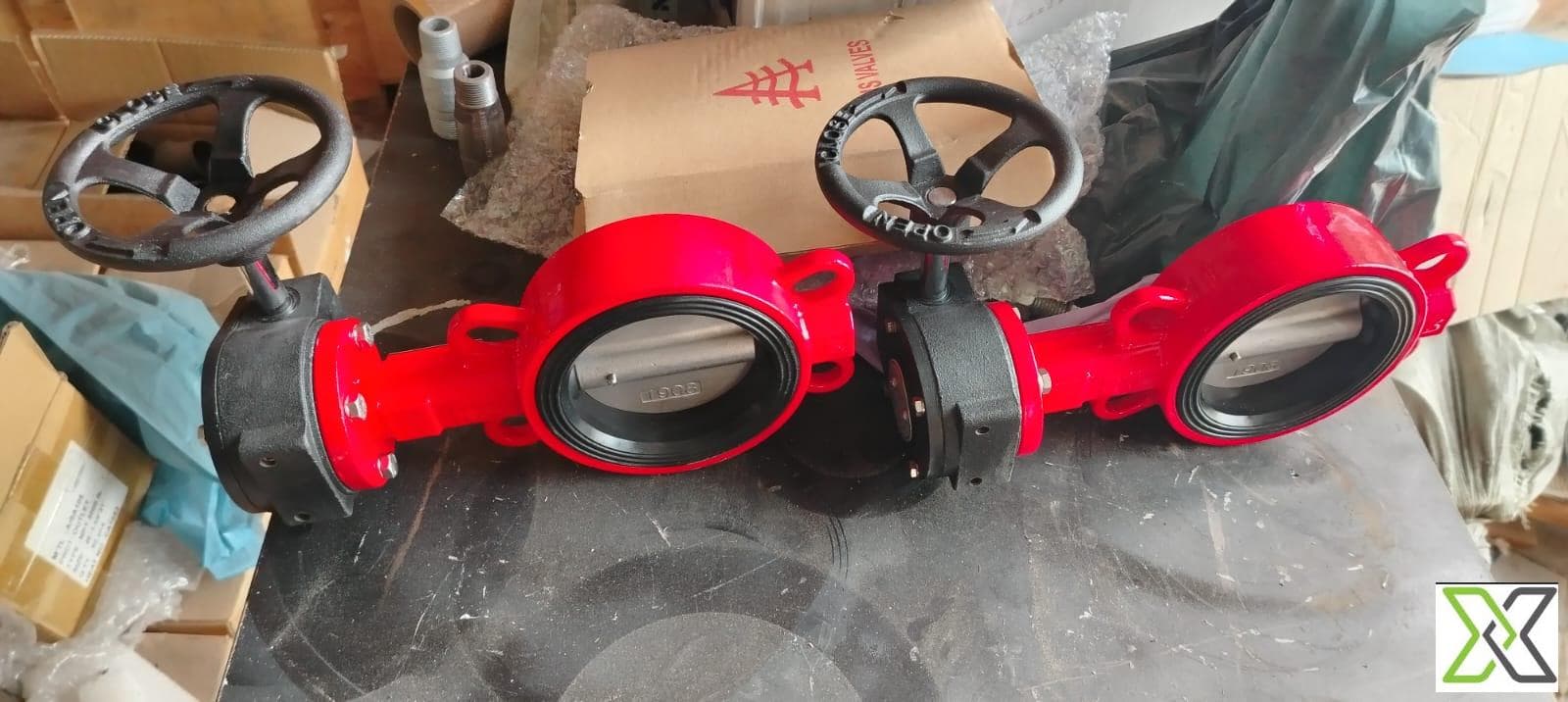

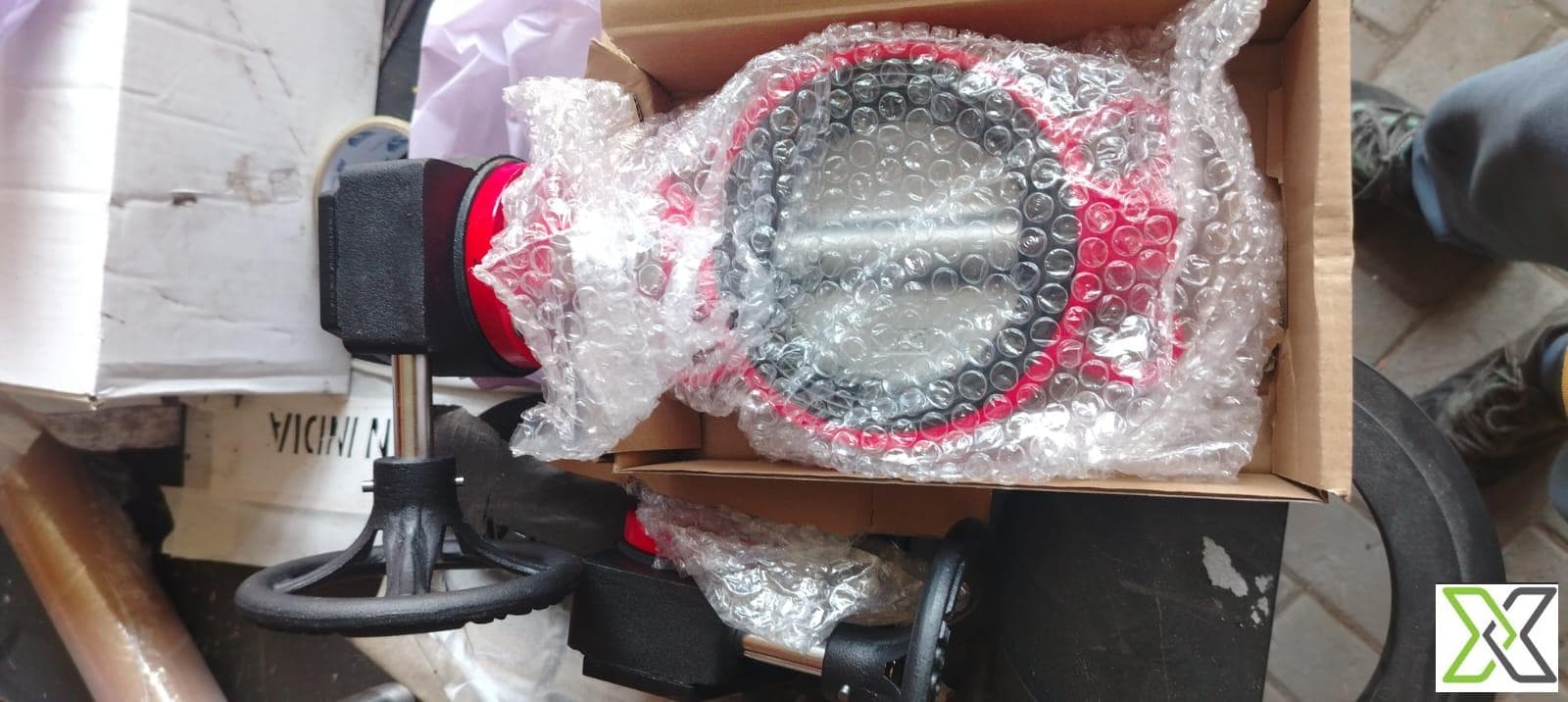

Manual Wafer-Type Butterfly Valve | Gear Operated | Cast Iron / Carbon Steel | Red Coated Body

ReflowX SKU: REF-881

Product Details

Quantity

40
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

Manual wafer-type butterfly valve featuring a durable red-coated cast iron or carbon steel body, operated via a handwheel-driven gear mechanism. Suitable for sizes approximately 4" to 6", this valve offers reliable flow control in industrial piping systems with easy manual operation.

Description

Manual Wafer-Type Butterfly Valve | Gear Operated | Cast Iron / Carbon Steel | Red Coated Body
Description

This manual wafer-type butterfly valve is designed for precise and efficient flow control in a variety of industrial applications. The valve body is constructed from either cast iron or carbon steel and finished with a robust red coating to provide corrosion resistance and extended service life.

The valve features a wafer-style design, allowing it to be easily installed between flanges in pipeline systems. Operation is manual, using a handwheel connected to a geared mechanism, providing smooth and controlled valve actuation even under higher pressure conditions.

Available in sizes approximately 4" to 6", this butterfly valve is ideal for applications requiring dependable shutoff and throttling capabilities, including water treatment, HVAC, chemical processing, and general industrial use.

Specification:

– Model: Manual Wafer-Type Butterfly Valve (Gear Operated)
– Valve Type: Butterfly Valve (Wafer Style)
– Size Range: Approx. 4" – 6"
– Operation: Manual, Gear Operated with Handwheel
– Body Material: Cast Iron or Carbon Steel
– Body Coating: Red Protective Coating (Corrosion Resistant)
– Connection Type: Wafer style (fits between flanges)
– Disc Material: [Specify if known; typically steel or stainless steel]
– Seat Material: [Specify if known; typically rubber, PTFE, or elastomer]
– Pressure Rating: [Specify or standard industrial rating]
– Temperature Range: [Specify or typical range e.g., -10°C to +120°C]
– Application: Industrial piping, water treatment, HVAC, chemical industries
– Operation Torque: Manual handwheel with gear for reduced effort
– Compliance: [Specify standards if available, e.g., API, ISO]
– Color: Red Coated Body
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Manual Wafer-Type Butterfly Valve (Gear Operated)
Height	150 mm to 300 mm
Width	100 mm to 250 mm
Length	50 mm to 150 mm
Weight	10 kg to 40 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Wafer-type Butterfly Valve, manual gear-operated
Failure Action	valve fails in the last operated position
Fluid Name	water, air, light chemical fluids, HVAC systems, general industrial fluids
Full Opening Valve	No
Nominal Diameter	4" to 6"
Normal Operating Pressure	150 PSI (10 bar)
Normal Operating Temperature	-20°C to +120°C
Piping Class	Class 150
UNSPSC Code	40141600
