Mud Box & Foot Valves – Cast Steel, 2” to 12”, JIS/DIN Standards

ReflowX SKU: REF-2988

Product Details

Quantity

100
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

China, Korea
Equipment code

Get Quotation Whatsapp

Short Description

Durable cast steel mud boxes and foot valves from 2” to 12”, conforming to JIS and DIN standards with pressure ratings up to PN16 / 10K, ideal for pump suction protection in industrial and marine systems.

Description

Mud Box & Foot Valves – Cast Steel, 2” to 12”, JIS/DIN Standards
Description:

These high-performance mud box and foot valves are designed for use in pump suction lines to prevent debris ingress and ensure unidirectional flow. Fabricated from high-quality cast steel, they are built for robustness in challenging fluid environments, including seawater, sludge, or industrial slurries. Available in sizes from 2” to 12”, these valves comply with JIS and DIN standards and are pressure rated up to 10K and PN16. The mud box acts as a strainer while the foot valve ensures check-valve functionality to prevent backflow. These components are critical for protecting pumps and pipelines in marine, industrial, and utility installations. Manufactured in China and Korea, they offer reliability, corrosion resistance, and efficient performance in both static and dynamic flow conditions.

Specification:

– Product Type: Mud Box & Foot Valve
– Material: Cast Steel
– Size Range: 2” to 12”
– Pressure Ratings:
• JIS Ratings: 5K, 10K
• DIN Ratings: PN6, PN16
– Standards: JIS, DIN
– Design Type:

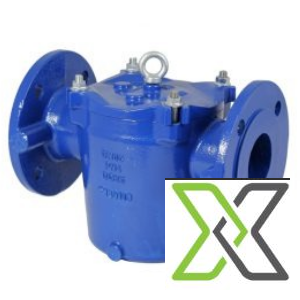

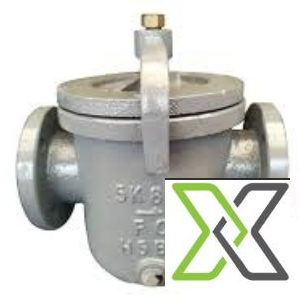

• Mud Box: In-line strainer with cover

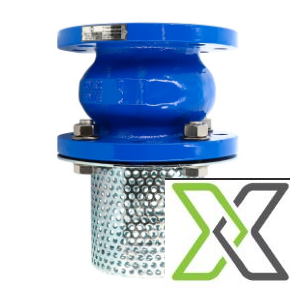

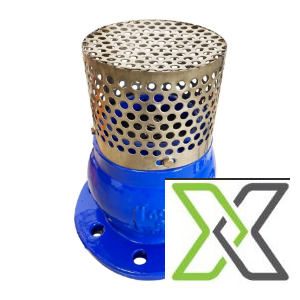

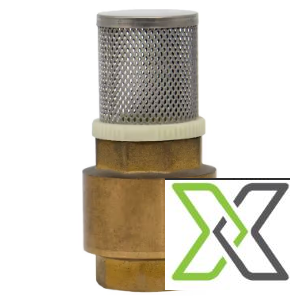

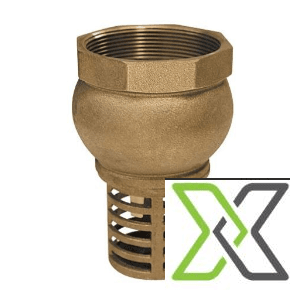

• Foot Valve: Non-return valve with integrated strainer
– Connection Type: Flanged
– Surface Finish: Industrial epoxy coated or shop primer finish
– Applications:
• Pump inlet protection
• Water intake and seawater systems
• Industrial waste and slurry pipelines
• Marine engine and ballast systems
– Origin: China, Korea

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	250 mm - 900 mm
Width	200 mm - 800 mm
Length	300 mm - 1100 mm
Weight	12 kg - 150 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Automatic check closure on reverse flow
Fluid Name	Water, Sea Water, Raw Water, Sludge, Slurry, Cooling Water, Pumped Industrial Fluids
Full Opening Valve	No
Nominal Diameter	2” to 12”
Normal Operating Pressure	232 PSI
Normal Operating Temperature	−10°C to +120°C
Piping Class	DIN PN10, PN16
UNSPSC Code	40141600
