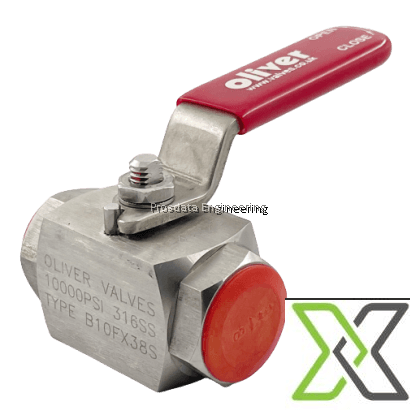

Oliver Valves Instrumentation Ball Valves – 3/8” to 1”, UK

ReflowX SKU: REF-588

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Oliver Valves Ltd., UK
Equipment code

Get Quotation Whatsapp

Short Description

High-pressure instrumentation ball valves by Oliver Valves, UK, available in sizes 3/8” to 1”, pressure ratings 6000 PSI and 10000 PSI, designed for precision control in instrumentation and process systems.

Description

Oliver Valves Instrumentation Ball Valves – 3/8” to 1”, 6000 & 10000 PSI, UK

Oliver Valves instrumentation ball valves are engineered in the UK for high-pressure applications where compact design, durability, and leak-tight performance are essential. These valves are available in sizes from 3/8” to 1” and designed for operating pressures of 6000 PSI and 10000 PSI. Manufactured using high-grade materials, Oliver instrumentation valves feature precision-machined ball and stem components that deliver smooth operation and minimal torque. These ball valves are widely used in upstream oil & gas, chemical processing, and laboratory instrumentation systems. They provide bubble-tight shutoff and long operational life under continuous or pulsating pressure. Compact, rugged, and corrosion-resistant, they are ideal for both panel mounting and direct inline use in high-pressure measurement and control applications.

Specifications:

– Manufacturer: Oliver Valves Ltd., UK
– Product Type: Instrumentation Ball Valve
– Size Range: 3/8” to 1”
– Pressure Ratings:
• 6000 PSI
• 10000 PSI
– Design Type: 2-way and 3-way instrumentation valves (depending on model)
– Body Material: Typically 316 Stainless Steel (other alloys available upon request)
– End Connections:
• NPT threaded
• Compression (Double Ferrule)
• BSPP or BSPT (optional)
– Temperature Range: Up to approx. 200°C (material dependent)
– Sealing: PTFE, PEEK, or metal-to-metal depending on pressure and temp
– Operation: Quarter-turn lever or handle
– Design Features:
• Blowout-proof stem design
• Anti-static design
• Bubble-tight shutoff
• Compact instrumentation footprint
– Compliance Standards:
• PED Compliant
• ISO 9001 Certified Manufacturing
• Pressure tested per API 598 and factory standard
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Instrumentation Ball Valve
Manufacturer Name	Oliver Valves Ltd., UK
Height	50 mm to 75 mm
Width	75 mm to 120 mm
Length	55 mm to 95 mm
Weight	0.4 to 1.8 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	PED compliant
Failure Action	Manual operation
Fluid Name	Natural Gas, Hydraulic Oil, Instrument Air, Steam, Water, Nitrogen, Methanol
Full Opening Valve	Yes – Full port design
Nominal Diameter	3/8", ½", ¾", 1"
Normal Operating Pressure	414 bar
Normal Operating Temperature	-20°C to +200°C
Piping Class	Class 2500–4500
UNSPSC Code	40141600
