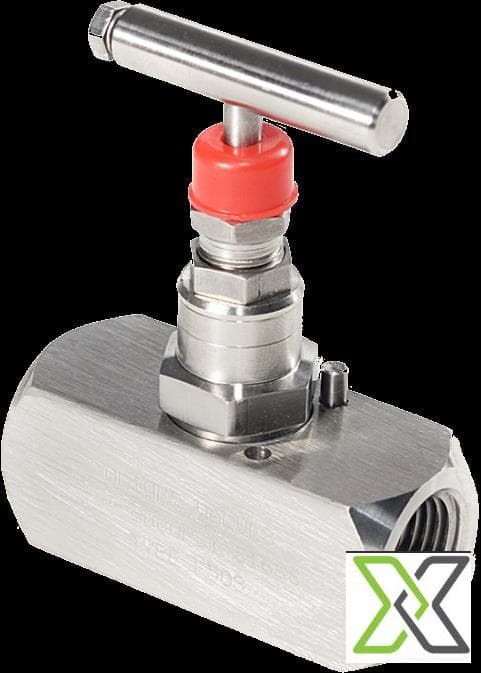

Oliver Valves Instrumentation Needle Valves – 3/8” to 1”, UK

ReflowX SKU: REF-9151

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Oliver Valves Ltd., UK
Equipment code

Get Quotation Whatsapp

Short Description

Precision instrumentation needle valves by Oliver Valves UK, available in 3/8” to 1” sizes, rated for 6000 and 10000 PSI, for accurate flow control in high-pressure systems.

Description

Oliver Valves Instrumentation Needle Valves – 3/8” to 1”, 6000 & 10000 PSI, UK

Oliver Valves instrumentation needle valves are designed to provide precise flow regulation and shutoff in high-pressure applications across instrumentation, oil & gas, and process systems. Manufactured in the UK, these valves are available in compact sizes from 3/8” to 1”, with pressure ratings of 6000 PSI and 10000 PSI. The finely threaded stem and robust seat design ensure accurate modulation and leak-tight shutoff, even under severe service conditions. Built from 316 stainless steel and other optional alloys, the needle valves are suited for both liquid and gas services and can be panel-mounted or installed inline. Oliver’s engineering excellence ensures long service life and reliability in demanding environments such as offshore platforms, refineries, and chemical processing plants.

Specifications:

– Manufacturer: Oliver Valves Ltd., UK
– Product Type: Instrumentation Needle Valve
– Size Range: 3/8” to 1”
– Pressure Ratings:
• 6000 PSI
• 10000 PSI
– Body Material: 316 Stainless Steel (optional alloys: Monel, Hastelloy, etc.)
– Stem Tip Options:
• Metal-to-metal
• Soft seat (PTFE, PEEK, optional)
– End Connections:
• NPT (ASME B1.20.1)
• BSPT / BSPP
• Compression (Double Ferrule)
• Welded ends (optional)
– Temperature Range: Up to +230°C (depends on seat material)
– Design Features:
• Non-rotating tip for extended seat life
• Leak-tight shutoff
• Compact and rugged for instrumentation panels
• Lockable handle option (on request)
• Color-coded handles (optional for identification)
– Compliance Standards:
• Tested per API 598
• PED/CE Compliant
• ISO 9001:2015 Certified Manufacturing
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Instrumentation Needle Valve
Manufacturer Name	Oliver Valves Ltd., UK
Height	70 mm to 120 mm
Width	22 mm to 40 mm
Length	55 mm to 110 mm
Weight	0.4 to 1.5 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Designed and tested per API 598
Failure Action	Manual valve – operator-controlled shutoff
Fluid Name	Oil, fuel, condensate, Steam, Compressed air, nitrogen, hydrogen, and process gases
Full Opening Valve	No – throttling/needle type control, not full bore
Nominal Diameter	3/8", ½", ¾", 1"
Normal Operating Pressure	6000 PSI
Normal Operating Temperature	Up to +230°C
UNSPSC Code	40141600
