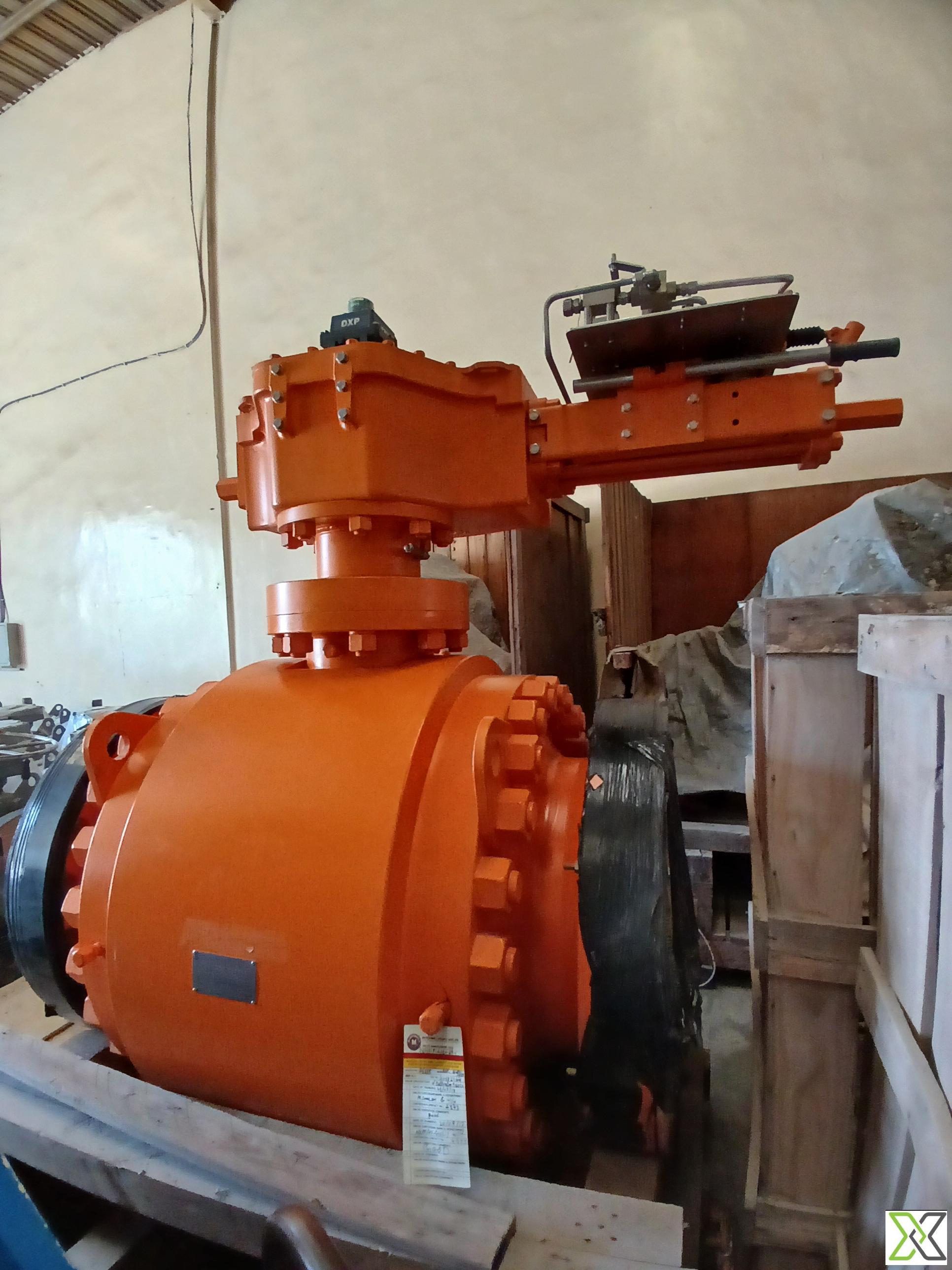

OMS Saleri 20” 900# Ball Valve – API 6D, LF2 + UNS N06625, RF Ends, CW6MC Trim

The OMS Saleri 20” 900# Ball Valve is a high-performance, full bore valve engineered to meet the rigorous demands of offshore and sour service applications. Designed and manufactured in Italy by O.M.S. Saleri S.p.A., this valve complies with API 6D and API 6FA fire safety standards. Its forged LF2 body enhanced with corrosion-resistant UNS N06625 (Inconel 625) cladding ensures exceptional durability under extreme pressure and temperature conditions. The trim is made from CW6MC alloy and PEEK, providing excellent mechanical strength and chemical resistance. The valve features raised face (RF) flanged ends and is fully compliant with NACE MR0175 for use in H₂S environments. Supplied for the LTA Offshore project under Aramco spec CWC/M-984-A104-D, this valve is built to the highest specifications for critical oil and gas infrastructure.

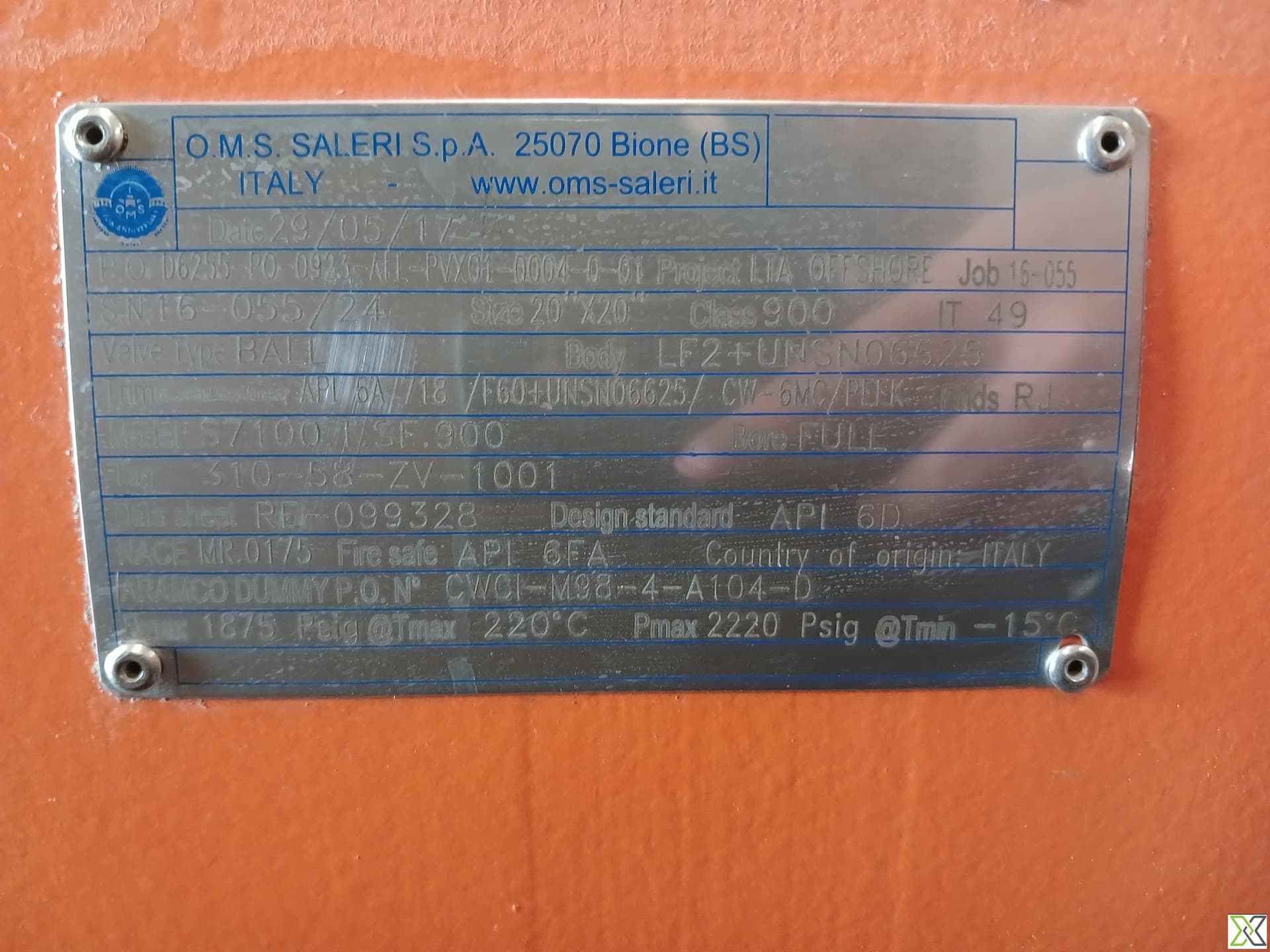

Specifications:

– Manufacturer: O.M.S. Saleri S.p.A.
– Country of Origin: Italy
– Valve Type: Ball Valve
– Valve Size: 20 Inch
– Pressure Class: ANSI 900#
– Bore Type: Full Bore
– Design Standard: API 6D
– Fire Safe Design: API 6FA
– Body Material: ASTM A350 LF2 + UNS N06625 (Inconel 625 overlay)
– Trim Material: CW6MC / PEEK
– End Connection: Raised Face (RF) Flanged Ends
– Design Pressure at Tmax (220°C): 1875 PSIG
– Design Pressure at Tmin (-15°C): 2220 PSIG
– Temperature Range: -15°C to +220°C
– NACE Compliance: MR0175 (Sour Service Compatible)
– Aramco Reference: CWC/M-984-A104-D
– Project: LTA Offshore
– Purchase Order: D6255 / PO-09328
– Tag Number / Drawing: 310-058-ZV-1001
– Serial Number: 16-055/224
– Date of Manufacture: 29/05/2017
– Color: Metallic (with Inconel overlay – no specific coating mentioned)
– Direction of Flow: Bidirectional (typical for full bore ball valves)
– Explosion Protection: Not applicable (mechanical valve only)
– Operation: Typically gear or actuator driven (not specified)
– Compliance Certification: API 6D, API 6FA, NACE MR0175
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
