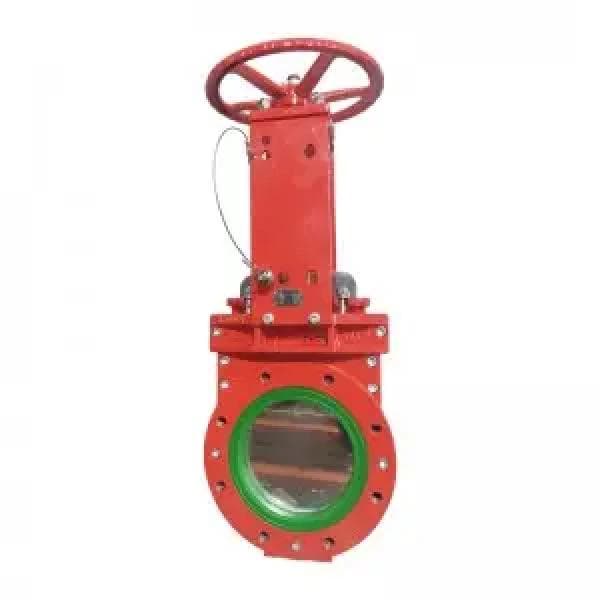

NSW Polyurethane Knife Gate Valve – Abrasion Resistant, Urethane Lined

The NSW Polyurethane Knife Gate Valve is specifically designed for severe slurry, mining, and abrasive media services where extended durability, tight shut-off, and minimal maintenance are critical. Fully lined with high-performance polyurethane, this valve offers exceptional wear resistance and service life far beyond conventional rubber-lined or metal-seated valves.

The urethane liner not only provides permanent body and seat sealing but also supports a self-flushing mechanism, where the beveled stainless steel gate helps redirect flow to clear out slurry sediment. This valve delivers true zero-leakage performance with a molded elastomer seat and a bi-directional shut-off capability, ideal for systems requiring reverse flow prevention.

Maintenance is simplified with modular wear components including replaceable liners, knife gates, and seals—all field-replaceable without disassembling the main body, reducing downtime and cost.

Specifications:

– Valve Type: Polyurethane Knife Gate Valve
– Size Range: NPS 2″ to NPS 48″ (DN50 to DN1200)
– Pressure Ratings:
 • Class 150
 • PN10
 • PN16
– Connection Type: Flanged (ASME B16.5, ASME B16.47, MSS SP-44)
– Body Materials (Casting):
 • GGG40, GGG50
 • A216 WCB
 • A351 CF3, CF8, CF3M, CF8M
 • A995 4A, 5A
 • A352 LCB, LCC, LC2
 • Monel, Inconel, Hastelloy, UB6
– Gate Materials:
 • Standard: SS304 with hard chromium coating
 • Optional: SS316, 410, 416, 17-4PH and other alloys
– Liner Material:
 • Full-body urethane lining (high-abrasion resistance)
 • Optional: Multiple urethane formulations
– Standards:
 • Design & Manufacture: MSS SP-81
 • Face-to-Face: MSS SP-81
 • Test & Inspection: MSS SP-81
– Fire Safe: API 6FA / API 607 compliant
– Other Tests: PMI, UT, RT, PT, MT
– Actuation Options:
 • Handwheel
 • Pneumatic actuator
 • Electric actuator
 • Bevel gear box

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
