Product Description

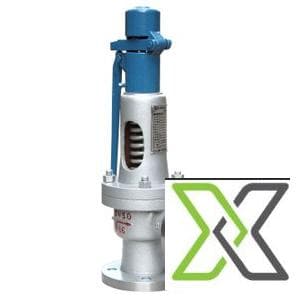

The A47H series safety valve is a spring-loaded, low lift type valve equipped with a manual lever, designed to provide overpressure protection for industrial equipment and piping systems. The valve automatically opens when system pressure exceeds the allowable limit and reseals once normal operating conditions are restored.

The integrated lever allows for manual operation and periodic testing of the valve to ensure proper functionality during maintenance. The valve is suitable for use with steam, air, and similar media in high-temperature applications.

The design incorporates a flanged connection and a calibrated spring mechanism to ensure accurate pressure relief performance. The low lift configuration provides controlled discharge characteristics suitable for defined operating conditions.

Specifications

• Type: Spring Loaded Safety Valve with Lever
• Model: A47H Series
• Design: Low Lift
• Function: Overpressure Protection / Pressure Relief
• Operation: Spring Loaded with Manual Lever
• Medium: Steam, Air
• Maximum Working Temperature: ≤ 350°C
• Connection Type: Flanged

Connection Sizes (as per available data)

• DN: 20 / 25 / 32 / 40 / 50 / 65 / 80 / 100 / 125 / 150 / 200 / 250
• Inlet/Outlet (DN’): 15 / 20 / 25 / 32 / 40 / 50 / 65 / 80 / 100 / 125 / 150 / 200
• Length (L): 100 – 300 mm
• Height (H): 298 – 750 mm

For further specifications or to inquire about any of these products and ReflowX's logistics services, please contact ReflowX at info@reflowx.com
