SISCO 1” Flanged Swing Check Valve – WCB Body, RF, Class 150

ReflowX SKU: REF-3336

Product Details

Quantity

30
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

1” Class 150 Swing Check Valve by SISCO, featuring a WCB cast carbon steel body, raised face flanged ends, and bolted cover for backflow prevention in industrial pipelines.

Description

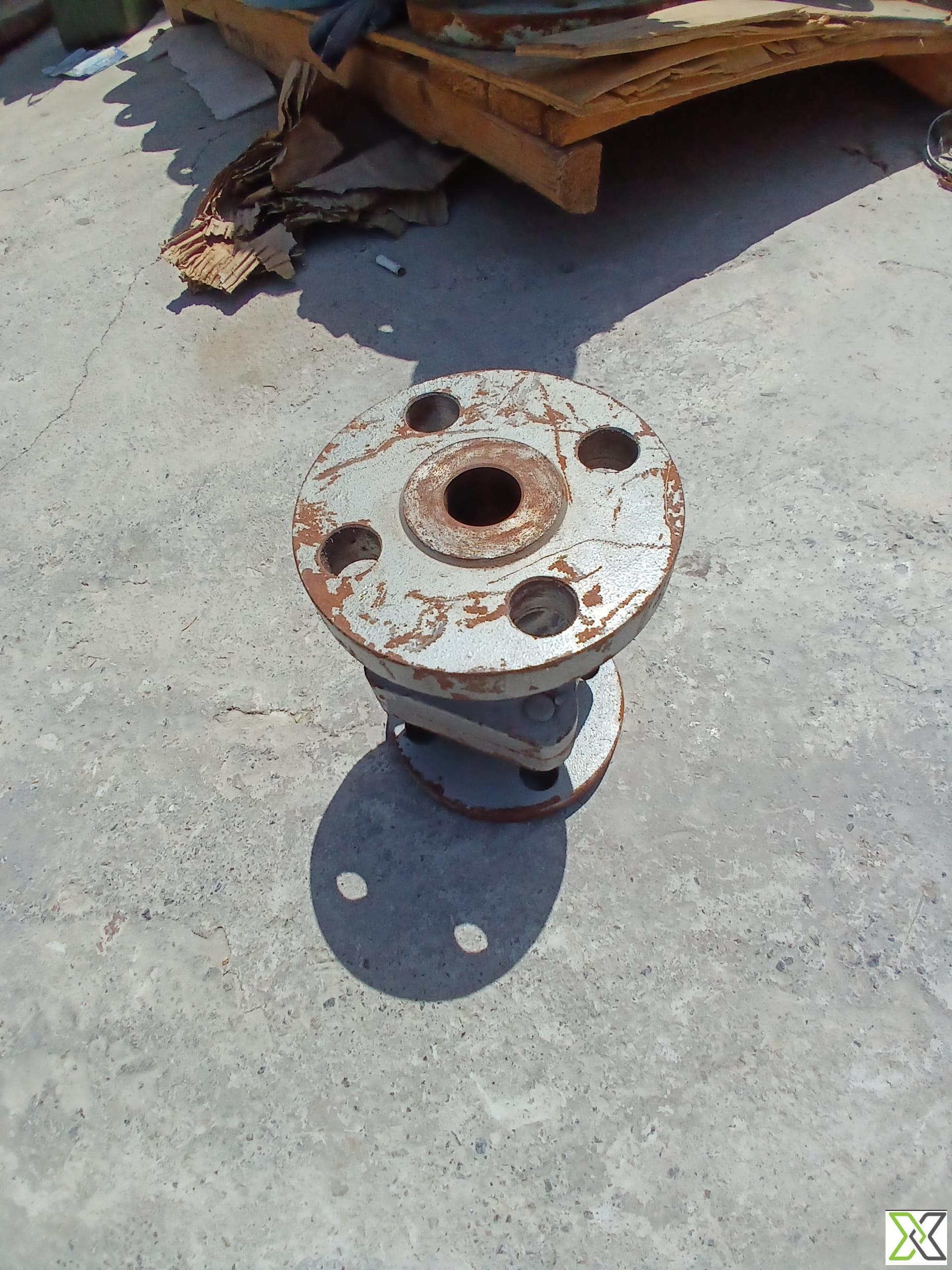

SISCO 1” Flanged Swing Check Valve – WCB Body, RF, Class 150

Description:

The SISCO 1” Swing Check Valve is a compact, high-reliability valve designed to prevent reverse flow in pipeline systems. Manufactured with a WCB cast carbon steel body, it features raised face flanged ends for secure pipe connection and a bolted cover for ease of inspection and maintenance. The valve’s internal swing disc allows for automatic opening and closing under forward and reverse flow conditions. With clear body markings indicating "SISCO, WCB, 150", this valve conforms to Class 150 pressure standards and is suitable for use in oil & gas, waterworks, and general industrial systems.

Specification:

– Product Type: Swing Check Valve
– Brand: SISCO
– Size: 1” (DN25)
– Pressure Rating: Class 150
– Body Material: WCB (Cast Carbon Steel) – ASTM A216 Grade WCB
– Disc Type: Swing-type
– End Connection: Raised Face (RF) Flanged Ends
– Cover Type: Bolted Cover
– Flow Direction: Unidirectional (horizontal or vertical downward flow)
– Marking on Body: SISCO, WCB, 150
– Face-to-Face Dimensions: As per ASME B16.10
– Flange Dimensions: As per ASME B16.5
– Design Standards: API 6D / ASME B16.34
– Working Temperature: Up to 425°C (based on trim and sealing materials)
– Typical Applications: Oil & gas, water, steam, air, and general process industries
– Origin: Likely manufactured in China (SISCO product origin)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Manufacturer Name	SISCO
Height	85 mm to 105 mm
Width	75 mm to 100 mm
Length	108 mm
Weight	4.5 kg to 6.0 kg
Color	Blue
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Closes Automatically
Fluid Name	Suitable for Water, Oil, Air, Steam, Hydrocarbons, Non-corrosive Fluids
Full Opening Valve	Yes
Nominal Diameter	1 inch
Normal Operating Pressure	285 psi
Normal Operating Temperature	-29°C to +425°C
Piping Class	Class 150
UNSPSC Code	40141600
