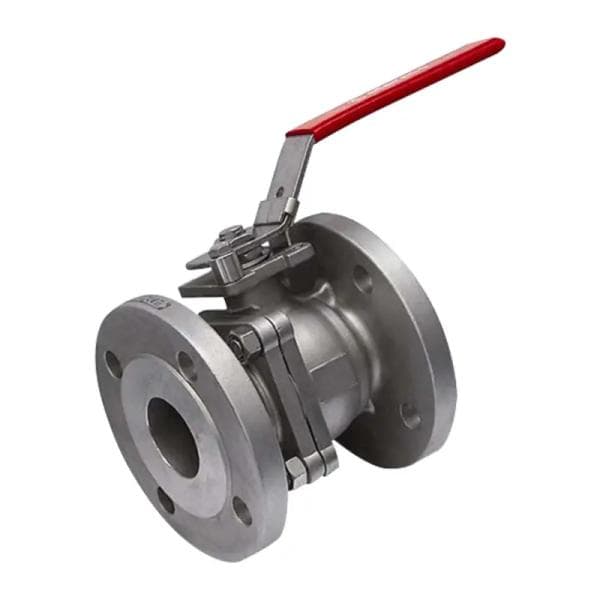

NSW 6" Stainless Steel Ball Valve – Class 600, CF8M Body, Full Bore, Flanged Ends

The NSW 6" Class 600 Stainless Steel Ball Valve is a high-performance industrial valve built for severe service applications involving corrosive fluids, high pressures, and elevated temperatures. Constructed from corrosion-resistant CF8M stainless steel, this valve offers excellent durability and compatibility with aggressive media including water, oil, steam, acids, and alkalis.

With a trunnion-mounted or floating ball configuration (depending on pressure class and size), the valve ensures low operating torque and reliable sealing. It features a full port design for minimal flow restriction, and can be supplied with a side-entry, top-entry, or welded body construction for operational flexibility. The valve is fire-safe per API 6FA/607 and supports emergency seat and stem injection for critical applications.

Commonly used across petrochemical, oil & gas, chemical, and power industries, the NSW stainless steel ball valve supports Double Block and Bleed (DBB) or Double Isolation and Bleed (DIB) configurations, with anti-static and anti-blowout stem safety features. Automation options include electric or pneumatic actuators, while stem extensions allow use in cryogenic or high-temperature services.

Specifications:

– Valve Type: Stainless Steel Ball Valve
– Operation: Lever/Gear-Operated (Automation Available)
– Size: 6 inch (Available: NPS 2 to NPS 48)
– Pressure Class: 600# (Available: Class 150 to 2500)
– Body Material: ASTM A351 CF8M (Options: CF8, CF3, CF3M, Duplex, Super Duplex, Monel, Inconel, Hastelloy)
– Ball Material: Stainless Steel – same as body or enhanced grade
– Seat Material: PTFE, RPTFE, or metal seated depending on service
– Bore Type: Full Bore or Reduced Bore
– End Connection: Raised-Face (RF) Flanged per ASME B16.5 (Also FF, RTJ, BW, PE available)
– Body Design: Side-entry, Top-entry, or Fully Welded
– Face-to-Face: ASME B16.10
– Design Standards: API 6D, API 608, ISO 17292
– Fire Safe Standard: API 6FA, API 607
– Test Standards: API 6D, API 598
– Corrosion Standards: NACE MR-0175 / MR-0103, ISO 15848
– Testing: PMI, UT, RT, PT, MT
– Optional Features:
 • Double Block & Bleed (DBB) or DIB
 • Emergency sealant injection (6” and larger)
 • Anti-static device
 • Anti-blowout stem
 • Cryogenic or high-temperature stem extension
