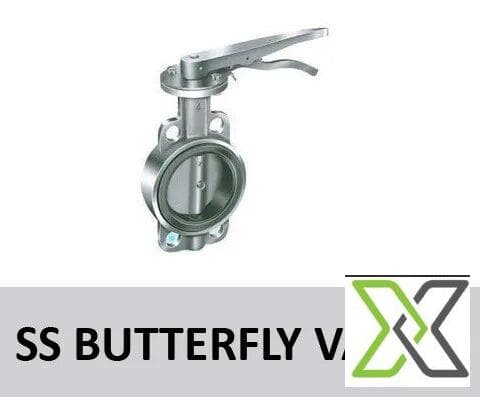

Stainless Steel Butterfly Valve | Wafer Type | DN50–DN300 | PN10 / PN16 / Class 150

The Stainless Steel Butterfly Valve in wafer type design is a compact, lightweight, and corrosion-resistant flow control solution for a variety of industrial applications. Engineered from high-grade stainless steel, this valve ensures durability, excellent resistance to corrosion, and reliable sealing performance, especially in demanding environments such as chemical processing, marine systems, food-grade operations, and water treatment facilities.

This valve is offered in a size range of DN50 to DN300 and is suitable for pressure ratings of PN10, PN16, and ANSI Class 150. The wafer-style body allows for installation between standard flanges, minimizing space requirements and simplifying the mounting process.

Both the disc and stem are constructed from stainless steel, providing consistent performance under varying pressures and flow conditions. It is designed for bi-directional flow and offers low torque operation with manual lever or gear-operated control options. The valve is compatible with pneumatic or electric actuators for automated systems.

With its high-grade build and compliance with international standards, this stainless steel wafer butterfly valve is ideal for applications where hygiene, corrosion resistance, and reliability are crucial.

Specifications:

– Valve Type: Butterfly Valve (Wafer Type)
– Body Material: Stainless Steel (ASTM A351 CF8 / CF8M or equivalent)
– Disc Material: Stainless Steel (SS304 / SS316)
– Stem Material: Stainless Steel (SS410 / SS304 / SS316)
– Size Range: DN50 to DN300 (2” to 12”)
– Pressure Rating: PN10 / PN16 / Class 150
– Design Standard: EN 593 / API 609
– Face-to-Face Standard: ISO 5752 (Series 20)
– End Connection: Wafer type – fits between EN 1092, ASME B16.5 flanges
– Flow Direction: Bi-directional
– Operation: Manual lever, gearbox, pneumatic or electric actuator (optional)
– Temperature Range: -10°C to +180°C (depending on seat material)
– Coating (Optional): Electro-polished or passivated for hygienic use
– Applications: Water treatment, food and beverage, chemical processing, HVAC, marine
