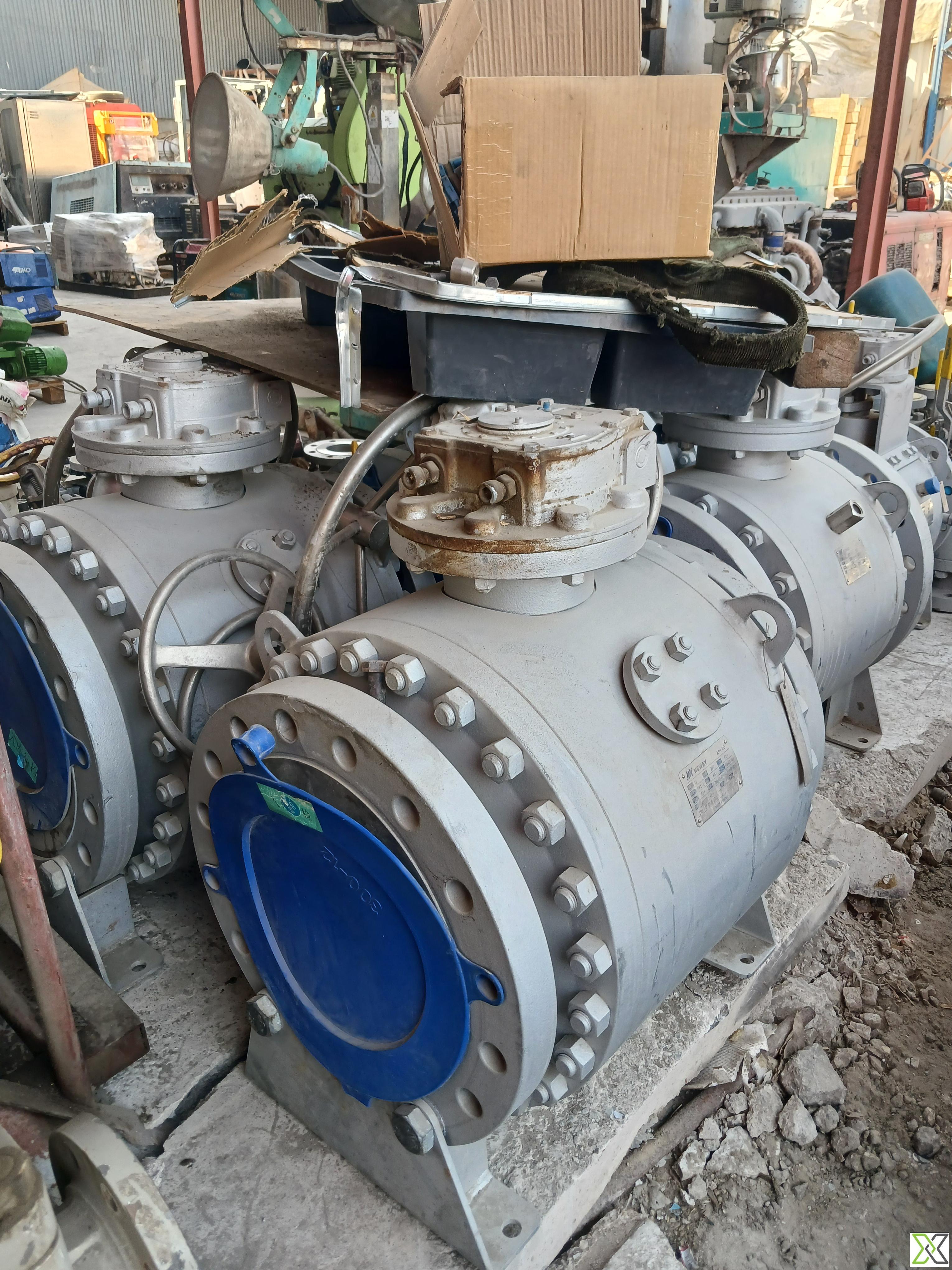

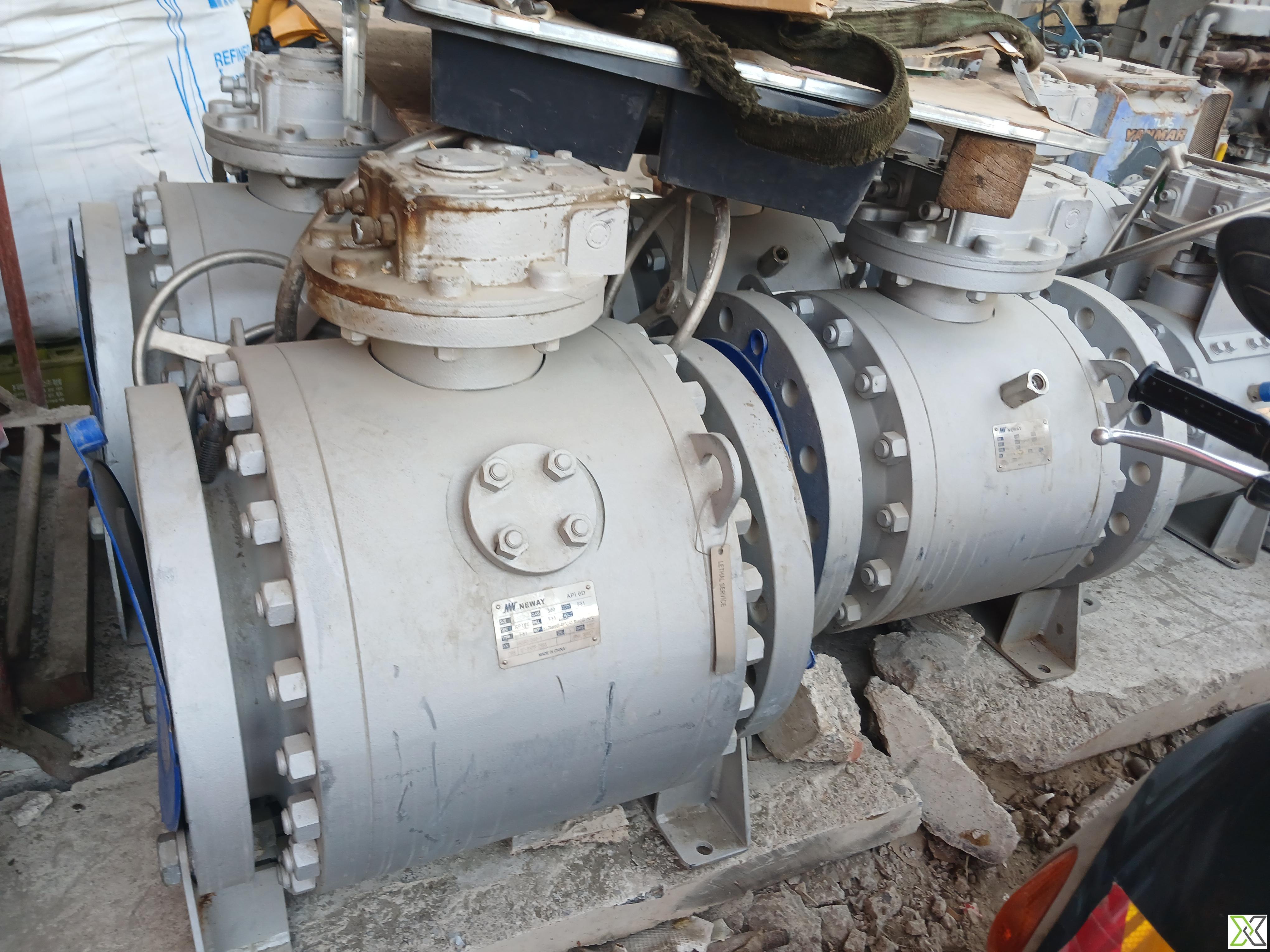

12” Trunnion Mounted Ball Valve – ANSI 300, F51 Duplex SS

ReflowX SKU: REF-4495

Product Details

Quantity

7
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

NEWAY
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty 12” trunnion-mounted ball valve with F51 duplex stainless steel body, ANSI Class 300 pressure rating, RPTFE seats, and FKM AED seals for critical service applications.

Description

12” Trunnion Mounted Ball Valve – ANSI 300, F51 Duplex SS

The 12-inch (DN 300) trunnion-mounted ball valve model 12"-B5DS-2RBX is designed for demanding industrial flow control systems requiring high strength, corrosion resistance, and tight shutoff. Featuring a full bore design, the valve ensures unrestricted flow and minimal pressure drop, ideal for pipeline and process isolation. Constructed from forged F51 duplex stainless steel, including the ball and stem, the valve delivers excellent resistance to stress corrosion cracking and pitting. The 2-piece or 3-piece forged body is flanged with raised face (RF) ends conforming to ASME B16.5 standards. The valve uses RPTFE (Reinforced PTFE) seats and FKM AED (Anti-Explosive Decompression rated) Viton seals to maintain performance under fluctuating pressure and temperature. It is rated to operate at a maximum pressure of 51.7 barg at -45°C and 45.9 barg at 150°C. Manufactured in November 2021 with QSL-1 quality level, this valve meets rigorous international standards and is suitable for use in oil & gas, petrochemical, and high-integrity pipeline systems.

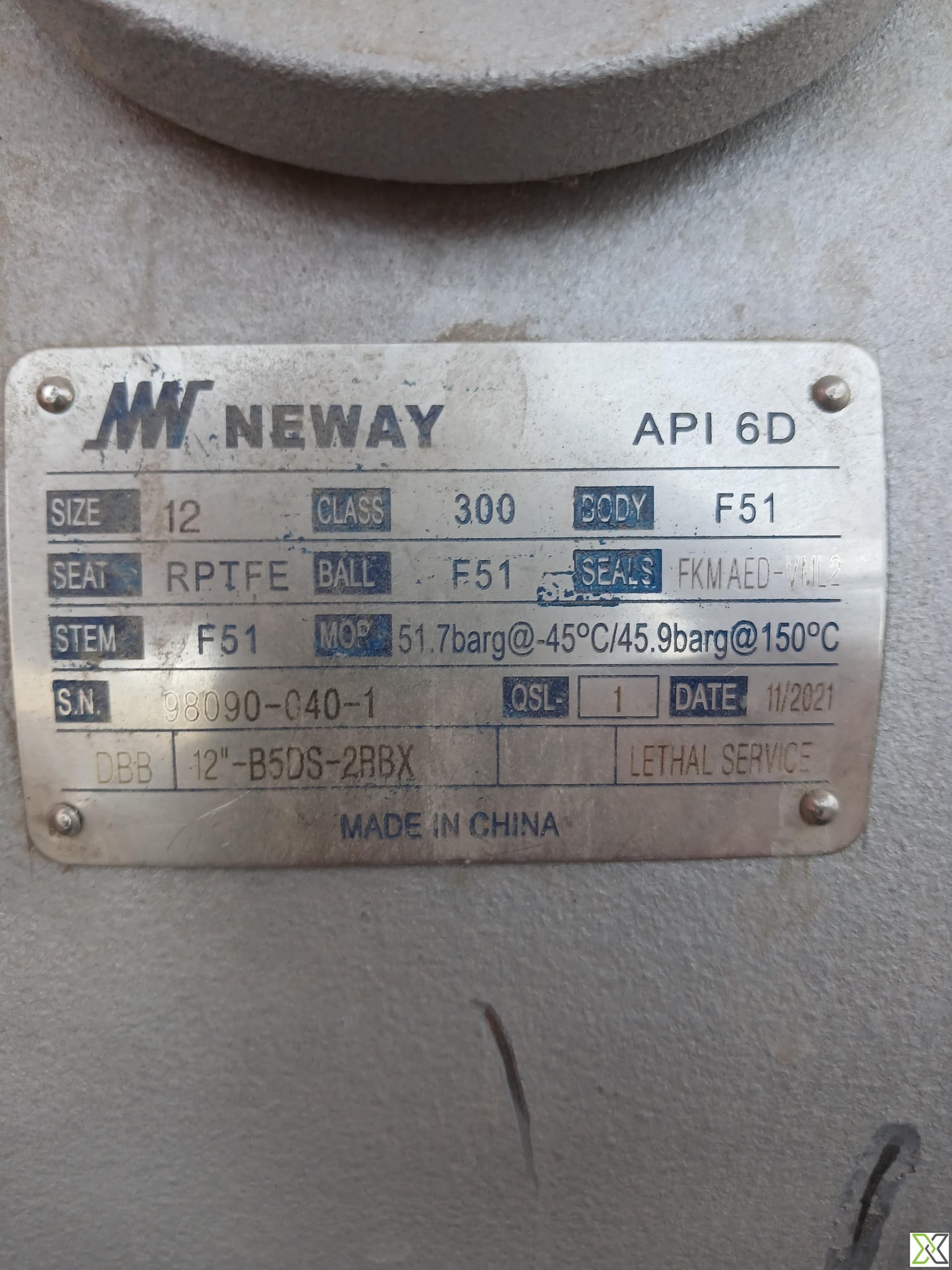

Specifications:

– Valve Type: Trunnion Mounted Ball Valve
– Model Number: 12"-B5DS-2RBX
– Size: 12 inches (DN 300)
– Pressure Class: ANSI 300 (PN 50 equivalent)
– Valve Bore: Full Bore (Full Opening)
– Design Type: 2-piece or 3-piece Forged Body
– End Connection: Flanged Raised Face (RF), ASME B16.5
– Body Material: F51 Duplex Stainless Steel
– Ball Material: F51 Duplex Stainless Steel
– Stem Material: F51 Duplex Stainless Steel
– Seat Material: RPTFE (Reinforced PTFE)
– Seal Material: FKM AED (Viton Anti-Explosive Decompression Rated)
– Max Operating Pressure:
– 51.7 barg at -45°C
– 45.9 barg at 150°C
– Serial Number: 98090-C40-1
– QSL (Quality Level): Level 1
– Manufacture Date: November 2021
– Country of Origin: China

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	1200 mm
Width	950 mm
Length	864 mm
Weight	780 kg
Color	Silver
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 6D / ISO 14313
Failure Action	Spring Return Actuator or ESD Function
Fluid Name	Natural Gas / Crude Oil / Water / Multipurpose (based on trim selection)
Full Opening Valve	Yes
Normal Operating Pressure	720 psi
Normal Operating Temperature	-29°C to +120°C
Piping Class	ASME B31.3
UNSPSC Code	40141600
