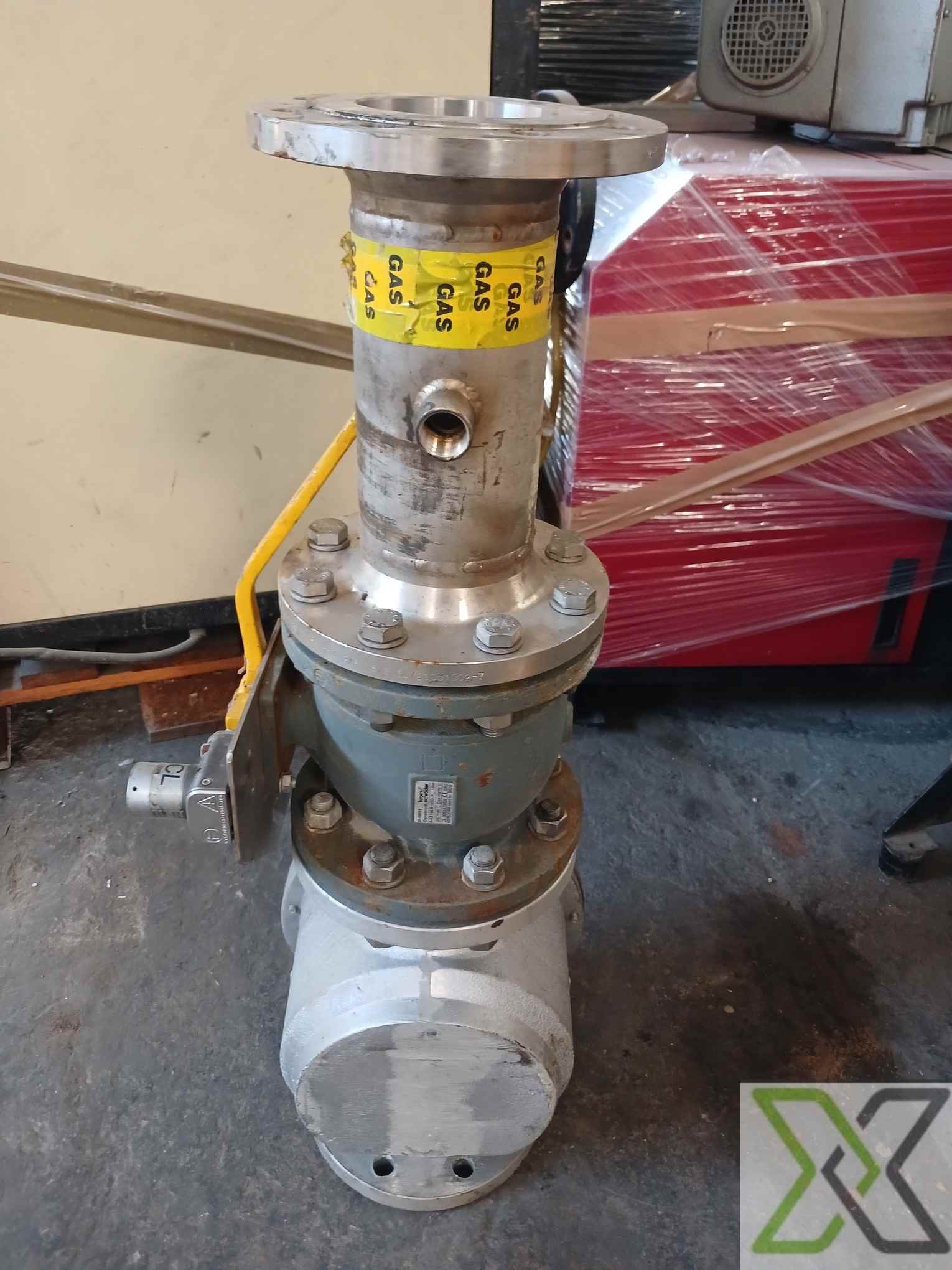

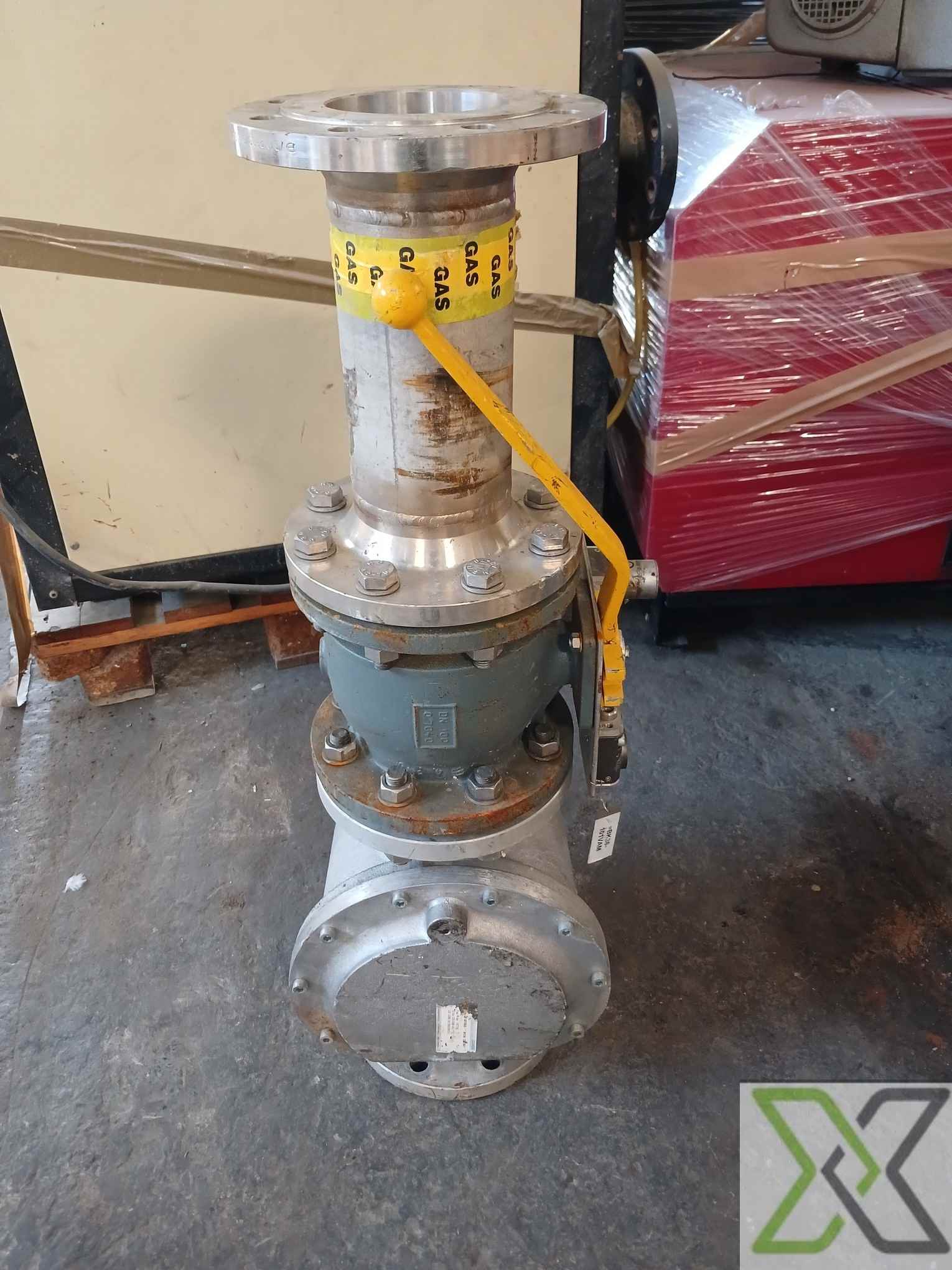

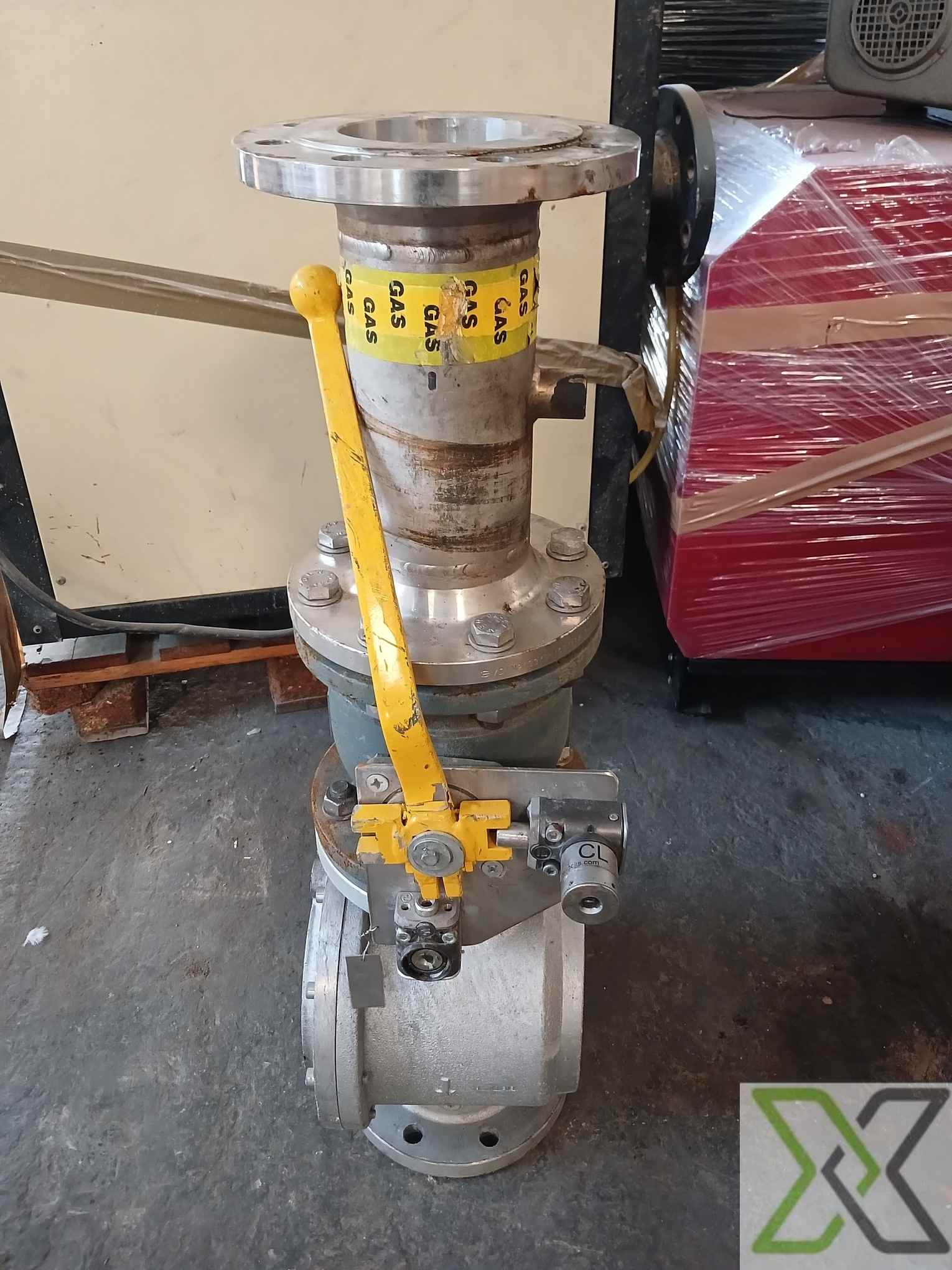

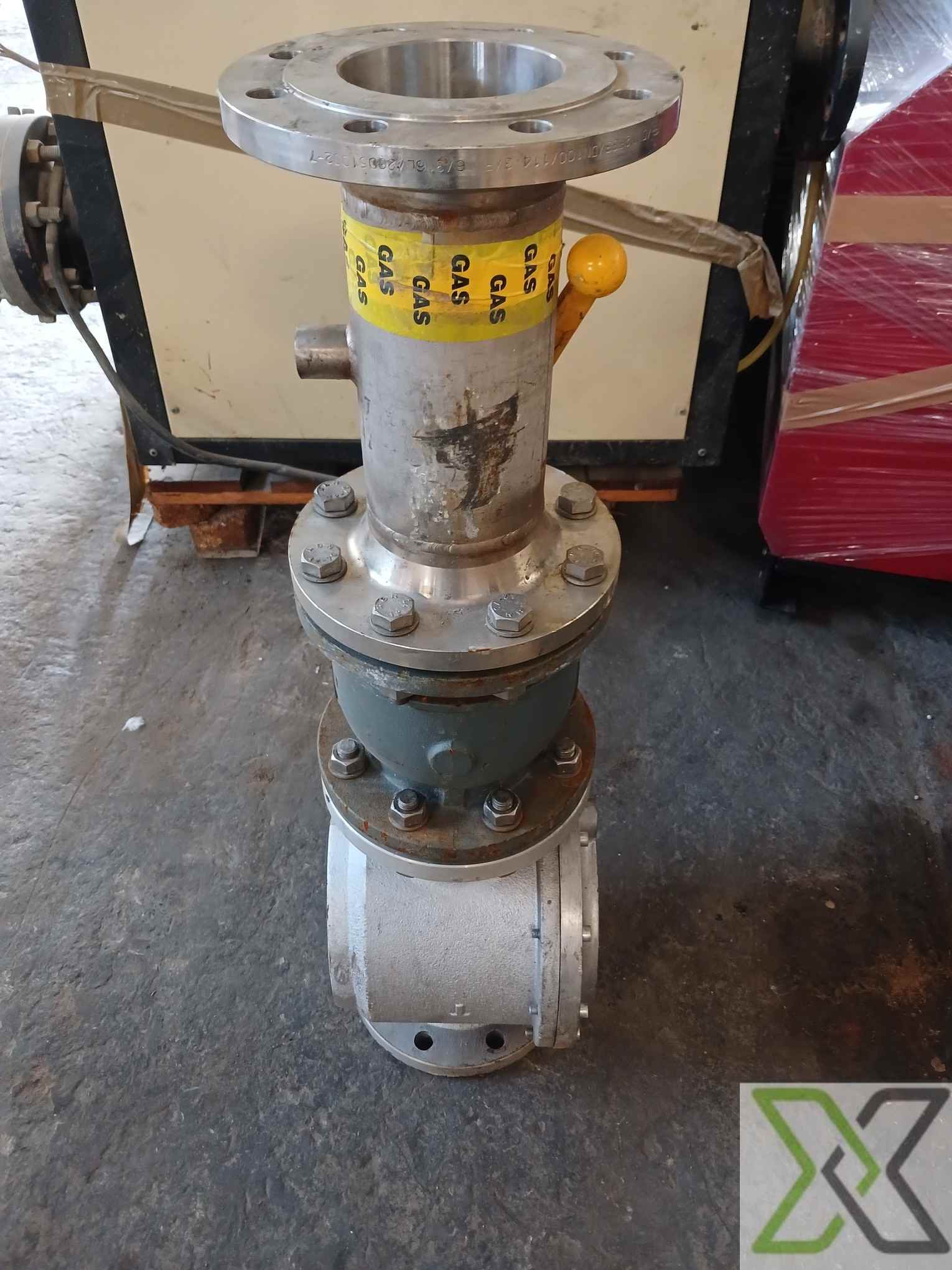

Kromschröder AKT100 F160G Gas Control Valve – DN100, 16 bar, Flanged

ReflowX SKU: REF-1845

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

High-performance flanged gas control valve from Kromschröder (Honeywell), DN100, 16 bar, designed for precision flow control in gas and high-temperature industrial applications.

Description

Kromschröder AKT100 F160G Gas Control Valve – DN100, 16 bar, Flanged

The Kromschröder AKT100 F160G gas control valve, manufactured by Kromschröder (a division of Honeywell) in Osnabrück, Germany, is a premium-quality solution for high-pressure and high-temperature gas flow regulation. Designed with a flanged connection and DN100 nominal size, this valve is suitable for demanding industrial environments that require precise flow control and safety compliance.

Constructed with a robust cast iron body (GJL-250 or equivalent) and internally fitted with stainless steel and brass components, the AKT100 F160G is engineered for durability, corrosion resistance, and thermal performance. The high-temperature elastomer seals ensure reliable operation across a broad temperature range.

This valve supports a maximum operating pressure of 16 bar and offers a flow coefficient (Kv) of 160 m³/h, enabling high-capacity flow in gas control systems. It features a bubble-tight sealing performance (Leakage Class VI), essential for safety-critical gas applications. The corrosion-resistant epoxy resin coating provides extended service life, especially in aggressive environments.

Ideal for use in combustion systems, heating plants, gas trains, and industrial furnace controls, the AKT100 F160G ensures both operational efficiency and regulatory compliance.

Specifications:

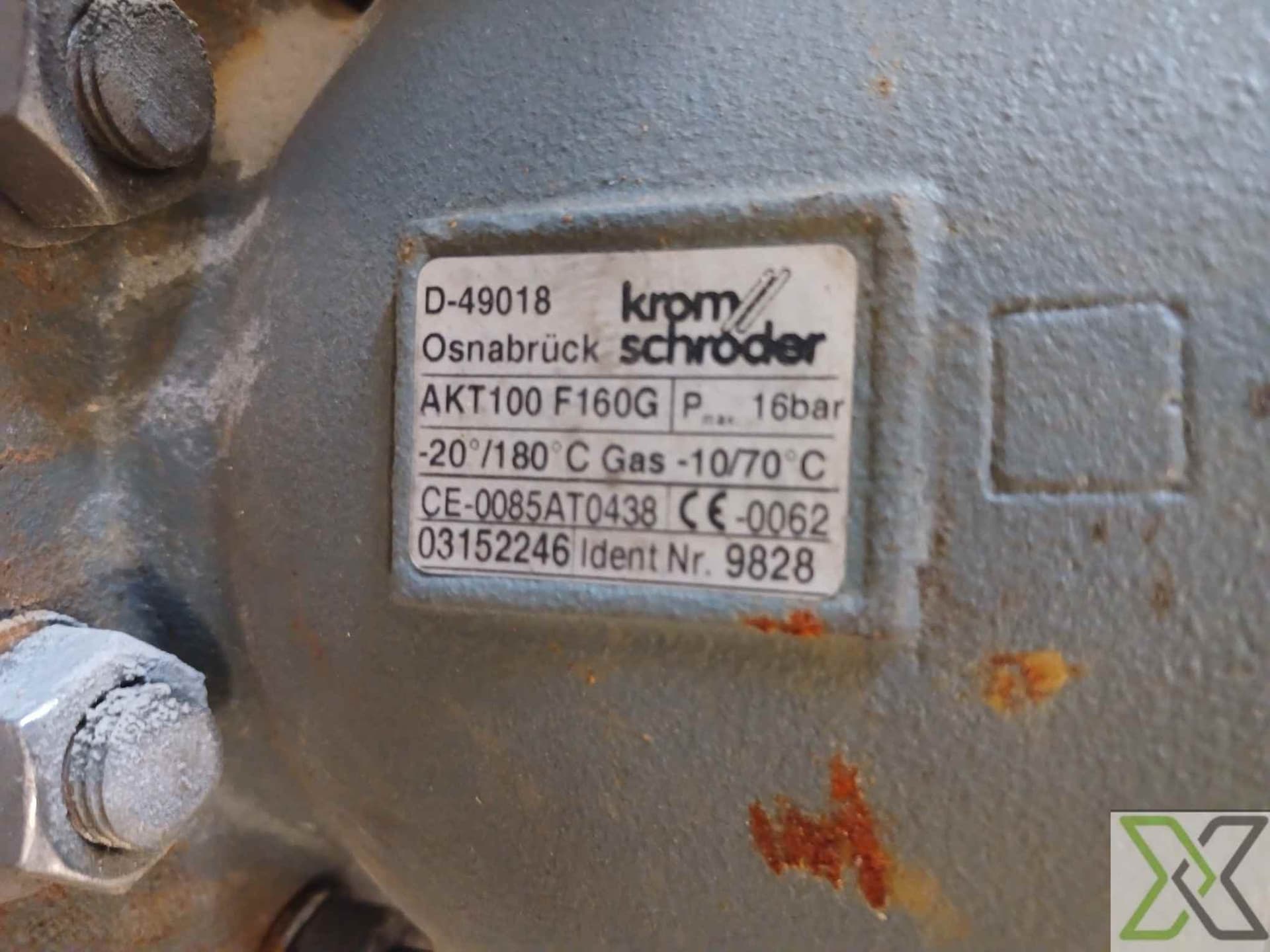

– Manufacturer: Kromschröder (Honeywell)
– Model: AKT100 F160G
– Identification Number: 03152246
– Serial/Batch Number: 9828
– Product Type: Gas Control Valve
– Nominal Size: DN100
– Connection Type: Flanged
– Body Material: Cast Iron (GJL-250 or equivalent)
– Internal Components: Stainless Steel & Brass
– Sealing Material: High-temperature resistant elastomers
– Surface Coating: Corrosion-resistant epoxy resin coating
– Maximum Operating Pressure: 16 bar
– Flow Coefficient (Kv): 160 m³/h
– Leakage Class: Class VI (bubble-tight)
– Temperature Range – General Use: -20°C to +180°C
– Temperature Range – Gas Use: -10°C to +70°C
– Origin: Osnabrück, Germany
– Industry: Gas control, combustion safety, and industrial heating
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	AKT100 F160G
Height	250 mm
Width	300 mm
Length	230 mm
Weight	27.2 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	DIN EN 331
Failure Action	Manual shut-off
Fluid Name	Natural Gas, Air, Water, Light and Heavy Fuel Oils
Full Opening Valve	Yes
Nominal Diameter	DN100 (100 mm)
Normal Operating Pressure	Up to 16 bar
Normal Operating Temperature	-20°C to +180°C
Piping Class	PN16
UNSPSC Code	40141600
