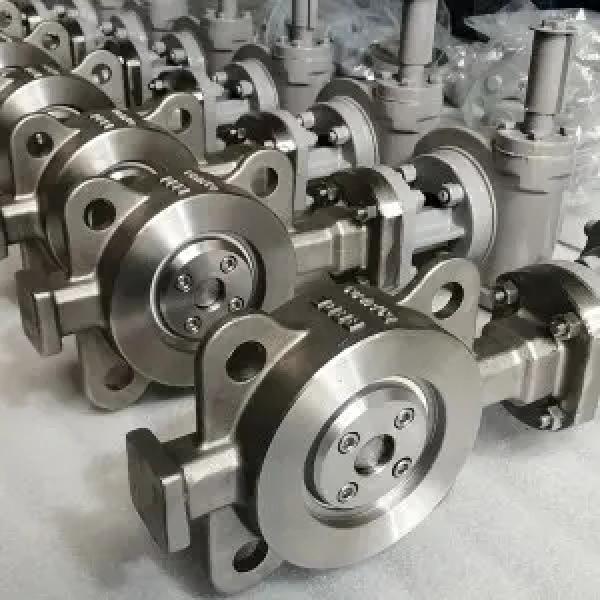

NSW 12" Wafer Butterfly Valve – Class 300, Triple Offset, CD4MCu Body

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

12-inch Class 300 wafer-type butterfly valve with triple eccentric design, CD4MCu stainless steel body, API 609 compliant, zero-leakage performance with torque-generated seal. Suitable for corrosive and high-pressure environments.

Description

NSW 12" Wafer Butterfly Valve – Class 300, Triple Offset, CD4MCu Body

The NSW 12" Wafer Butterfly Valve – Class 300 is a high-performance valve engineered for critical flow control in demanding applications. Featuring a triple-eccentric disc design, the valve ensures zero friction between sealing surfaces during opening/closing and delivers exceptional durability and sealing integrity.

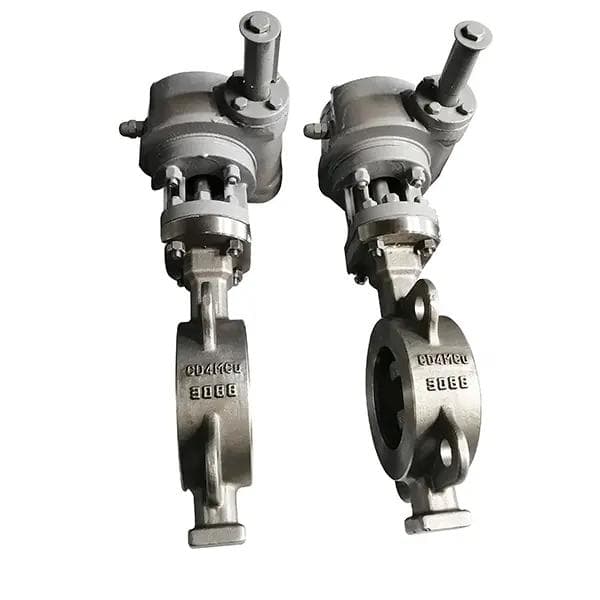

Constructed with a CD4MCu duplex stainless steel body, this valve offers excellent resistance to corrosion, erosion, and stress cracking, making it suitable for aggressive chemical or offshore environments. The torque-generated elastic sealing system enables automatic, wedge-assisted sealing, ensuring tight shutoff without leakage.

Compact, lightweight, and easy to operate, this valve supports manual, pneumatic, electric, and hydraulic actuation, and is ideal for systems requiring remote and automated control. Optional linings and trim materials are available for highly corrosive or abrasive media.

Specifications:

– Valve Type: Triple Eccentric Wafer Butterfly Valve
– Operation: Manual, Pneumatic, Electric, or Hydraulic
– Size: 12 inch (Available: NPS 2 to NPS 96)
– Pressure Class: 300# (Available: Class 150 to 1500)
– Body Material: CD4MCu (Optional: WCB, CF8, CF8M, CF3, CF3M, A995 4A/5A, etc.)
– Disc Material: Stainless Steel / Duplex / Nickel Alloys (Monel, Inconel, Hastelloy)
– Seat Type: Torque-activated elastic seal
– End Connection: Wafer Type (Also available: RF, FF, RTJ flanges)
– Face-to-Face: API 609 / DIN 3202
– Design Standard: API 609 / DIN 3354
– Flange Standards: ASME B16.5, B16.47, MSS SP-44, BS EN 1092
– Fire Safe: API 6FA / API 607
– Testing & Inspection: API 598, DIN 3230, BS 5146
– Certifications: NACE MR-0175 / MR-0103, ISO 15848
– Non-Destructive Testing: PMI, UT, RT, PT, MT
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
