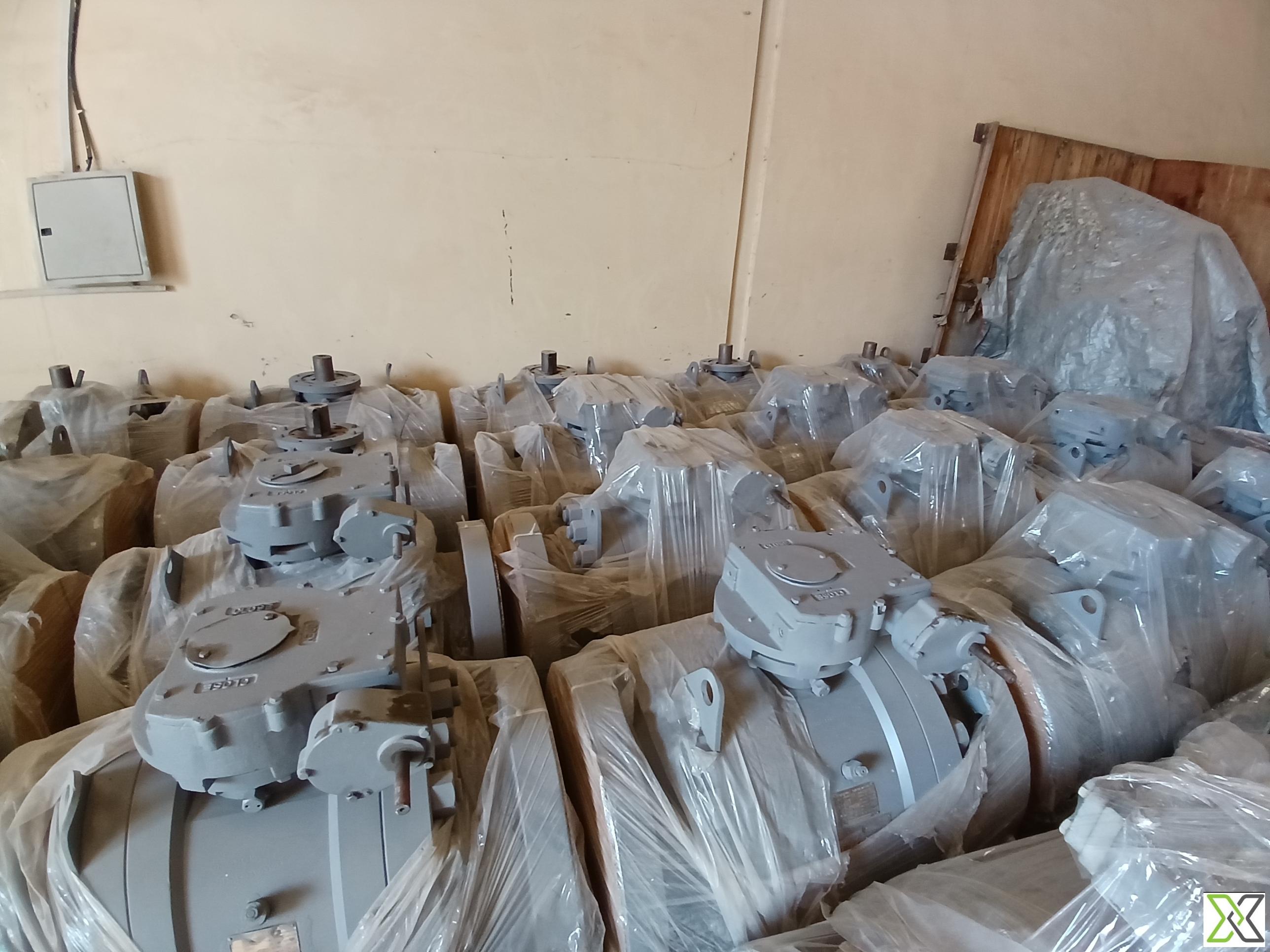

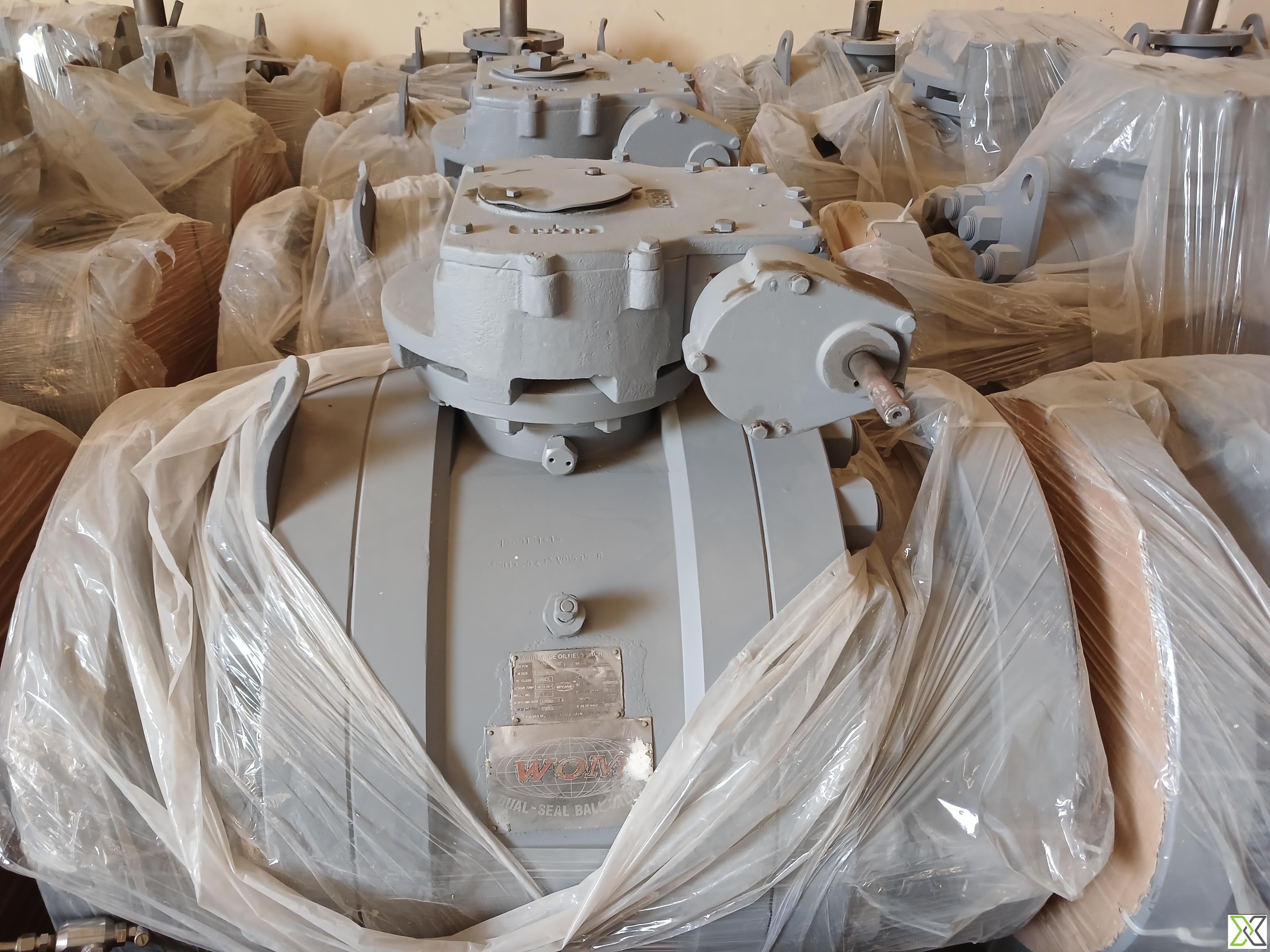

WOM 16” 600# Dual-Seal Ball Valve – A216 WCB Body, RF Ends, Model 30

ReflowX SKU: REF-9114

Product Details

Quantity

20
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Worldwide Oilfield Machine (WOM)
Equipment code

Get Quotation Whatsapp

Short Description

16” ANSI 600# dual-seal ball valve by WOM with A216 WCB body, PTFE/316SS seats, and RF end connections. Designed for high-pressure applications up to 1480 PSI.

Description

WOM 16” 600# Dual-Seal Ball Valve – A216 WCB Body, RF Ends, Model 30
Description:

The WOM 16” Dual-Seal Ball Valve is a robust solution for high-pressure oilfield and industrial flow control systems. Engineered by Worldwide Oilfield Machine (WOM), this ANSI 600# rated valve features a precision-machined carbon steel A216 WCB body and raised face (RF) flanged end connections for secure installation. The valve utilizes dual-seal technology to ensure leak-tight shutoff and extended service life. Seat construction includes a PTFE 25% composition reinforced with 316 stainless steel, while the stem is fabricated from high-strength UNS G41400 alloy. Designed for operations in temperature ranges from 20°F to 250°F, this model offers a maximum operating pressure (MOP) of 1480 PSI at minimum temperature and 1333 PSI at maximum temperature. Manufactured in March 2018, this model (No. 30) meets demanding standards for both upstream and downstream applications.

Specification:

– Valve Model: 30
– Valve Manufacturer: Worldwide Oilfield Machine (WOM)
– Valve Type: Dual-Seal Ball Valve
– Valve Size: 16 Inch (DN 400)
– Pressure Rating: ANSI 600#
– Max Operating Pressure @ Min Temp: 1480 PSI (102 bar)
– Max Operating Pressure @ Max Temp: 1333 PSI (91.9 bar)
– Body Material: ASTM A216 WCB (Carbon Steel)
– Seat Material: PTFE 25% / 316 Stainless Steel
– Stem Material: UNS G41400 (High-strength alloy steel)
– End Connections: Raised Face Flanged Ends (ANSI B16.5)
– Design Temperature Range: 20°F to 250°F (-6.7°C to 121°C)
– Flow Direction: Bi-directional
– Operation Type: Manual or Actuated (not specified)
– Design Standard: Likely API 6D / ASME B16.34 (not specified but inferred)
– Country of Origin: Not specified
– Date of Manufacture: March 2018
– Condition:New
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2018
ISO 15926 Pt 4	10554
Model Number	30
Year of Manufacturing	2018
Manufacturer Name	Worldwide Oilfield Machine (WOM)
Height	655 mm
Width	600 mm
Length	991 mm
Weight	2,063 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Dual-seal, trunnion-mounted ball valve
Failure Action	Valve stays in its last set position
Fluid Name	Oil, gas, water, petroleum
Full Opening Valve	Yes
Nominal Diameter	16″ (DN 400)
Normal Operating Pressure	1,480 psi
Normal Operating Temperature	20 °F to 250 °F
Piping Class	ANSI 600 RF flanges
UNSPSC Code	40141600
