| ISO 15926 Pt 4
|
10554
|
|---|---|
| Model Number
|

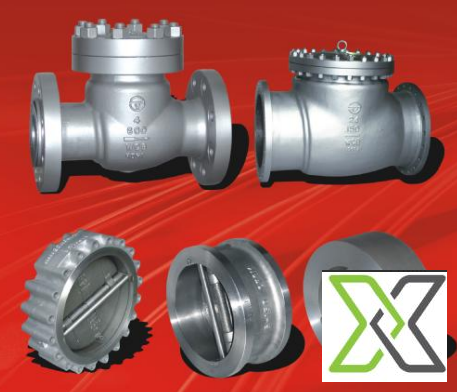

Check Valve
|
| Manufacturer Name
|
3DV Valves, USA
|
| Height
|
110 mm to 600 mm
|
| Width
|
90 mm to 405 mm
|
| Length
|
108 mm to 318 mm
|
| Weight
|
4 kg to 140 kg
|
| ISO 15926 Pt 4
|
10554
|
| PCA RDS Code
|
RDS292589
|
| CFIHOS ID
|
CFIHOS-30000660
|
| IFC Class
|
IfcValve
|
| Design Specification
|
API 598 (pressure & seat testing)
|
| Failure Action
|
Closes automatically on reverse flow – self-actuated
|
| Fluid Name
|
Water, steam, air, gas, hydrocarbons, chemicals
|
| Full Opening Valve
|
No – Slightly restricted due to swing/lift mechanism
|
| Nominal Diameter
|
½” to 10”
|
| Normal Operating Pressure
|
19.6 bar to 51 bar
|
| Normal Operating Temperature
|
-29°C to +230°C
|
| Piping Class
|
Class 150 / 300
|
| UNSPSC Code
|
40141600
|
×
