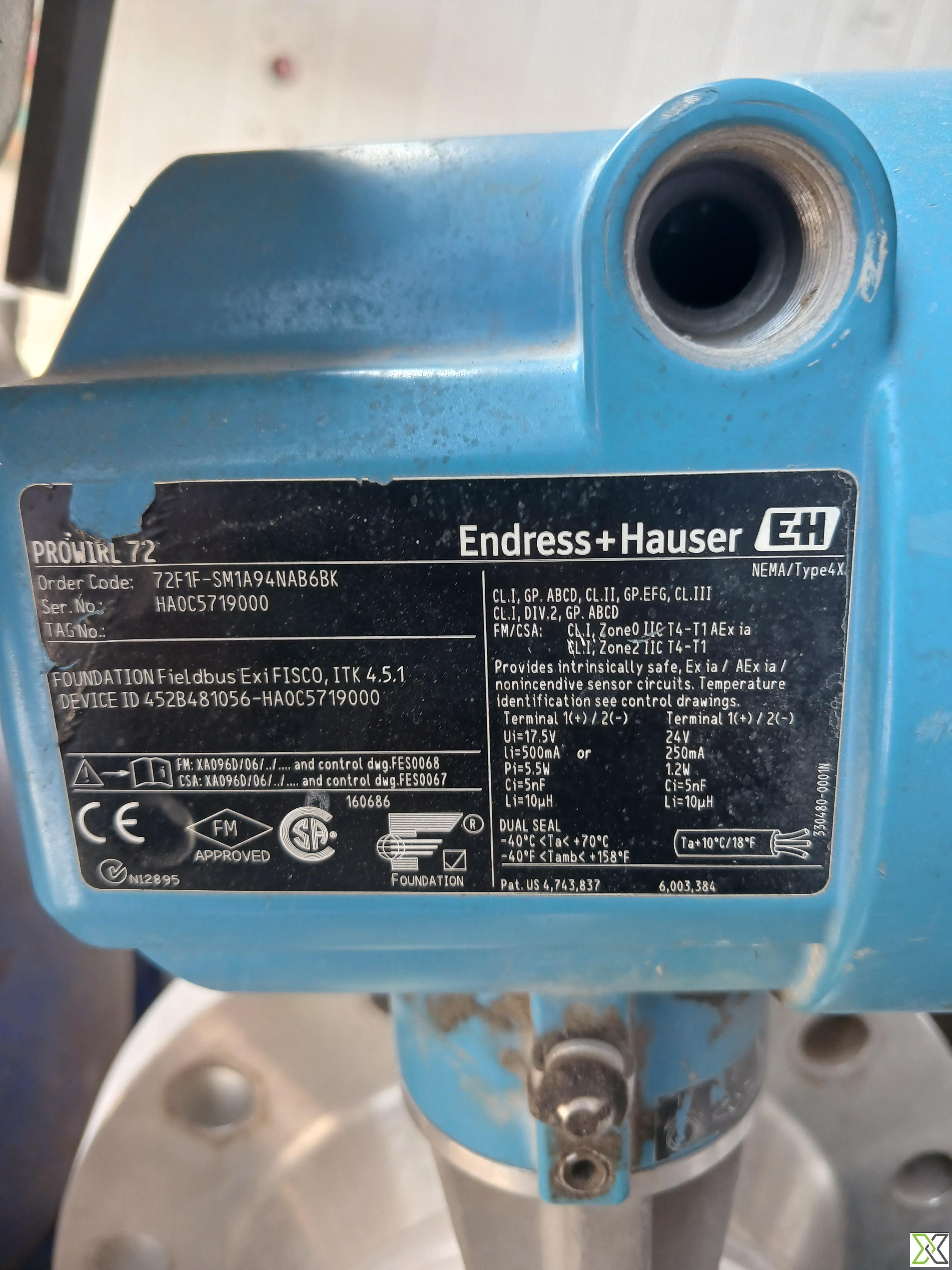

Vortex Flowmeter Model 72F – Flanged, Volumetric & Mass Flow

The Model 72F Vortex Flowmeter utilizes the vortex shedding measurement principle to deliver highly accurate flow readings for a wide range of fluids, including liquids, gases, and steam. Designed for industrial applications requiring reliability and precision, the 72F supports both volumetric and mass flow measurement, with built-in temperature compensation and optional pressure sensors.

This flowmeter is available in sizes ranging from DN15 to DN300 (½" to 12"), with flanged process connections compatible with ASME, DIN, or JIS standards depending on model configuration. The meter operates effectively over a velocity range of 0.3 to 10 m/s for liquids and 3 to 70 m/s for gases or steam.

Accuracy is maintained at ±0.75% of reading for liquids and ±1.0% for gases and steam, with a repeatability of ±0.2% and a turndown ratio up to 30:1. The sensor supports extreme process conditions, functioning at pressures up to 100 bar (1,450 psi) and sensor temperatures from -200°C to +400°C, with ambient operation from -40°C to +70°C.

Built with a stainless steel AISI 316L sensor body and wetted parts, the 72F is also available in Hastelloy, Duplex, and optional PTFE linings for corrosive media. Seals can be selected from Viton, PTFE, or EPDM based on compatibility.

Electronics are modular and separable from the sensor, simplifying maintenance and upgrades. An integrated RTD allows for temperature measurement, and a local display with optical buttons offers easy, menu-driven operation. Outputs comply with FOUNDATION Fieldbus ITK 4.5.1, and the unit meets rigorous certification standards including ATEX, FM, CSA, IECEx, and SIL 2/3 according to IEC 61508.

Specifications:

– Measurement Principle: Vortex Shedding
– Model: 72F (Flanged Sensor Type)
– Pipe Size Compatibility: DN15 to DN300 (½” to 12”)
– Flow Type: Volumetric and Mass Flow Measurement
– Process Connection: Flanged (ASME, DIN, JIS)
– Velocity Range – Liquids: 0.3 to 10 m/s
– Velocity Range – Gases/Steam: 3 to 70 m/s
– Accuracy – Liquids: ±0.75% of reading
– Accuracy – Gases/Steam: ±1.0% of reading
– Repeatability: ±0.2% of measured value
– Turndown Ratio: Up to 30:1
– Max Operating Pressure: Up to 100 bar (1,450 psi)
– Ambient Temperature Range: -40°C to +70°C
– Sensor Temperature Range: -200°C to +400°C
– Power Supply: 17.5 VDC (Fieldbus Exi), 24 VDC (Standard)
– Power Consumption: Max 500 mA; typically 250 mA (fieldbus loop)
– Output Signal: FOUNDATION Fieldbus – ITK 4.5.1
– Sensor Body Material: AISI 316L Stainless Steel
– Wetted Parts: AISI 316L
– Optional Body Materials: Hastelloy, Duplex, others
– Optional Liner: PTFE for aggressive media
– Seal Material Options: Viton, PTFE, EPDM
– Temperature Sensor: Integrated RTD
– Pressure Sensor: Optional for mass flow capability
– Display: Local with optical touch buttons
– Diagnostics: NAMUR NE107 Compliant
– Data Logging: Event memory included
– Modular Design: Separable electronics and sensor
