Electro-Pneumatic Rotary Positioner YT-1000 RDn132S00 – Precision Valve Control
×
product image
product image
product image
product image
product image
product image

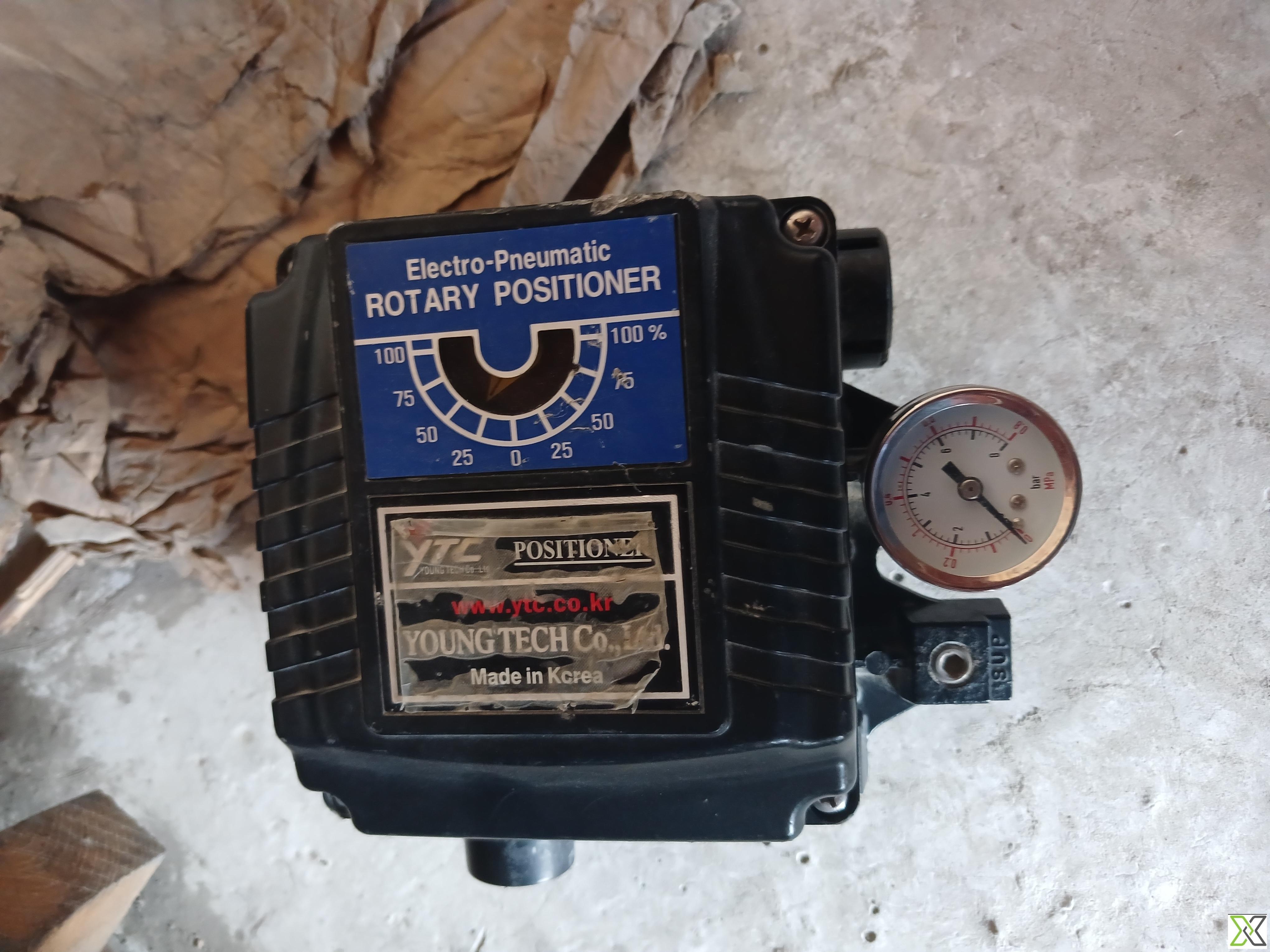

Electro-Pneumatic Rotary Positioner YT-1000 RDn132S00

ReflowX SKU: REF-880

Product Details

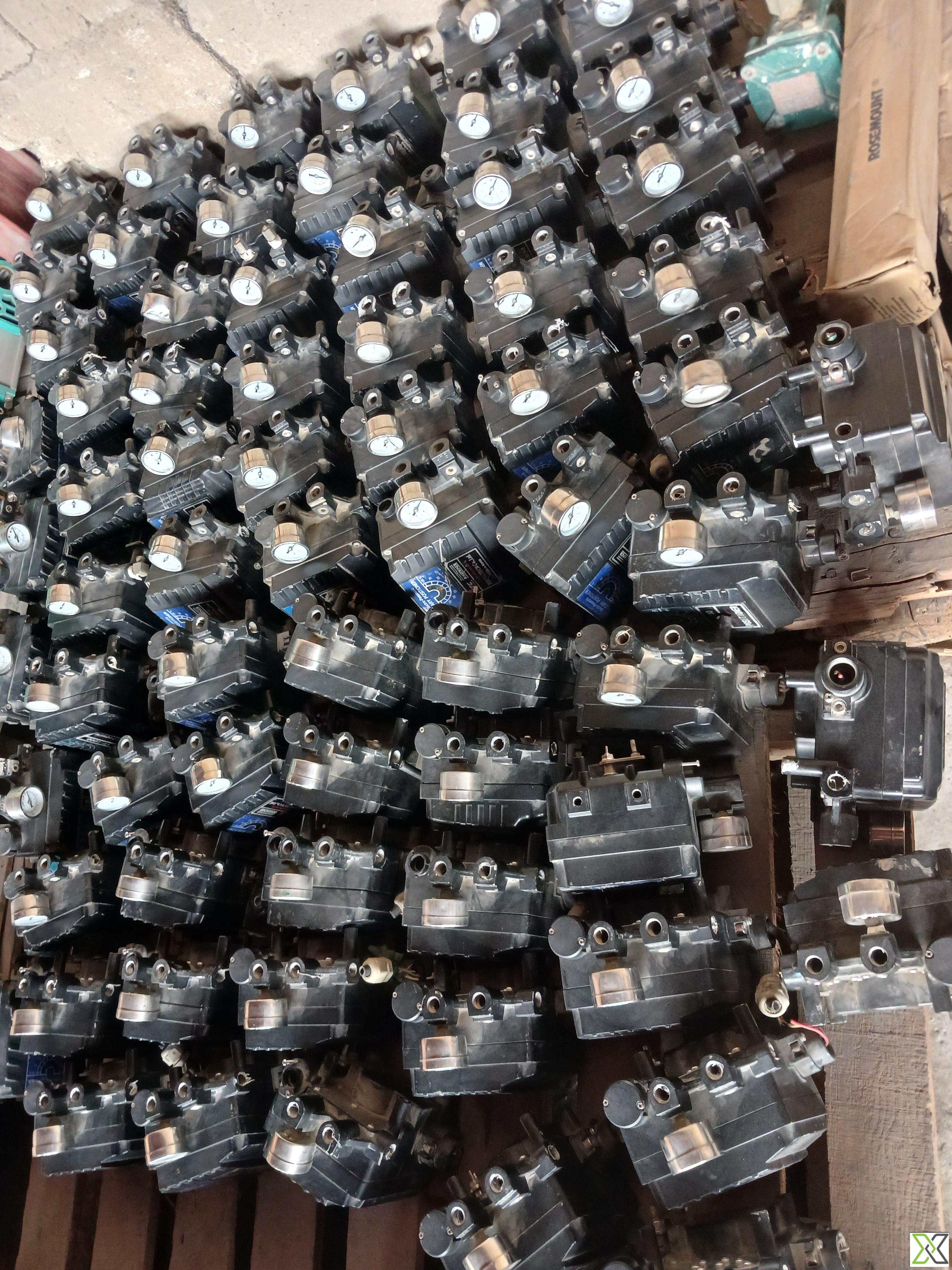

  • Quantity
    40
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    Young Tech Co., Ltd. (YTC)
  • Equipment code
Get Quotation Whatsapp Chat With Seller
Share on Facebook
Share on Twitter
Share on LinkedIn

Short Description

Rotary Electro-Pneumatic Positioner

Description

  • Manufacturer: Young Tech Co., Ltd. (YTC)
  • Model Number: YT-1000 RDn132S00
  • Serial Number: K0315182
  • Technical Details: Explosion Proof: Non-Explosion (not explosion-proof rated)
  • Input Signal: 4–20 mA DC
  • Ambient Temperature: -20°C to +70°C
  • Supply Pressure: 0.14–0.7 MPa (approx. 1.4–7 bar)
  • Display: Rotary scale 0–100% position indicator
  • Application: Rotary actuators for controlling valve position
  • Country of Manufacture: Made in Korea

Physical Dimensions & Weight

  • Height: Approximately 190 mm
  • Width: Approximately 145 mm
  • Length (Depth): Approximately 110 mm
  • Weight: Approximately 2.8 kg (6.2 lbs)​

 Environmental & Operational Conditions

  • Operating Temperature Range: –20°C to +70°C (–4°F to +158°F)
  • Ingress Protection: IP66, Type 4X (FM)
  • Vibration Resistance: No resonance between 5 to 200 Hz​

 Electrical & Pneumatic Specifications

  • Input Signal: 4–20 mA DC
  • Impedance: 250 ±15 Ω
  • Supply Pressure: 20 to 102 psi (1.4 to 7 bar)
  • Air Consumption: Approximately 2.5 LPM at 0.14 MPa
  • Flow Capacity: Up to 80 LPM at 0.14 MPa​

 Explosion Protection & Safety

  • Explosion Protection Gas Group: Suitable for IIB and IIC gas groups
  • Explosion Protection Temperature Class: T5 and T6 (depending on configuration)
  • Explosion Protection Zone: Zone 1 and Zone 2 hazardous areas
  • Certifications: ATEX, IECEx, FM, CSA, NEPSI, KCs, PESO, UKEX
  • Safety Integrity Level (SIL): SIL 2 capable (per IEC 61508)​

 Performance Characteristics

  • Linearity: ±1% of full scale (single acting), ±2% (double acting)
  • Hysteresis: ±1% of full scale
  • Sensitivity: ±0.2% of full scale (single acting), ±0.5% (double acting)
  • Repeatability: ±0.5% of full scale

 Additional Information

  • Voltage: Operates on a 4–20 mA DC control signal; does not require separate voltage supply
  • Fuel Type: Not applicable; the device is powered pneumatically and electrically via control signal​


For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number
YT-1000 RDn132S00
Height
190 mm
Width
145 mm
Length
110 mm
Weight
2.0 kg (4.4 lbs)
Temperature Range
–40°C to +65°C
Voltage
16 to 32 VDC
