Centric-L 125K Power Conversion Module with UPSCN25K400V3P-405-R4 UPS Module

ReflowX SKU: REF-8078

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

TBA/Various
Equipment code

CFIHOS-30000376

Get Quotation Whatsapp

Short Description

High-performance 125 kW power conversion system integrated with a 25 kW UPS module for uninterrupted industrial and commercial applications.

Description

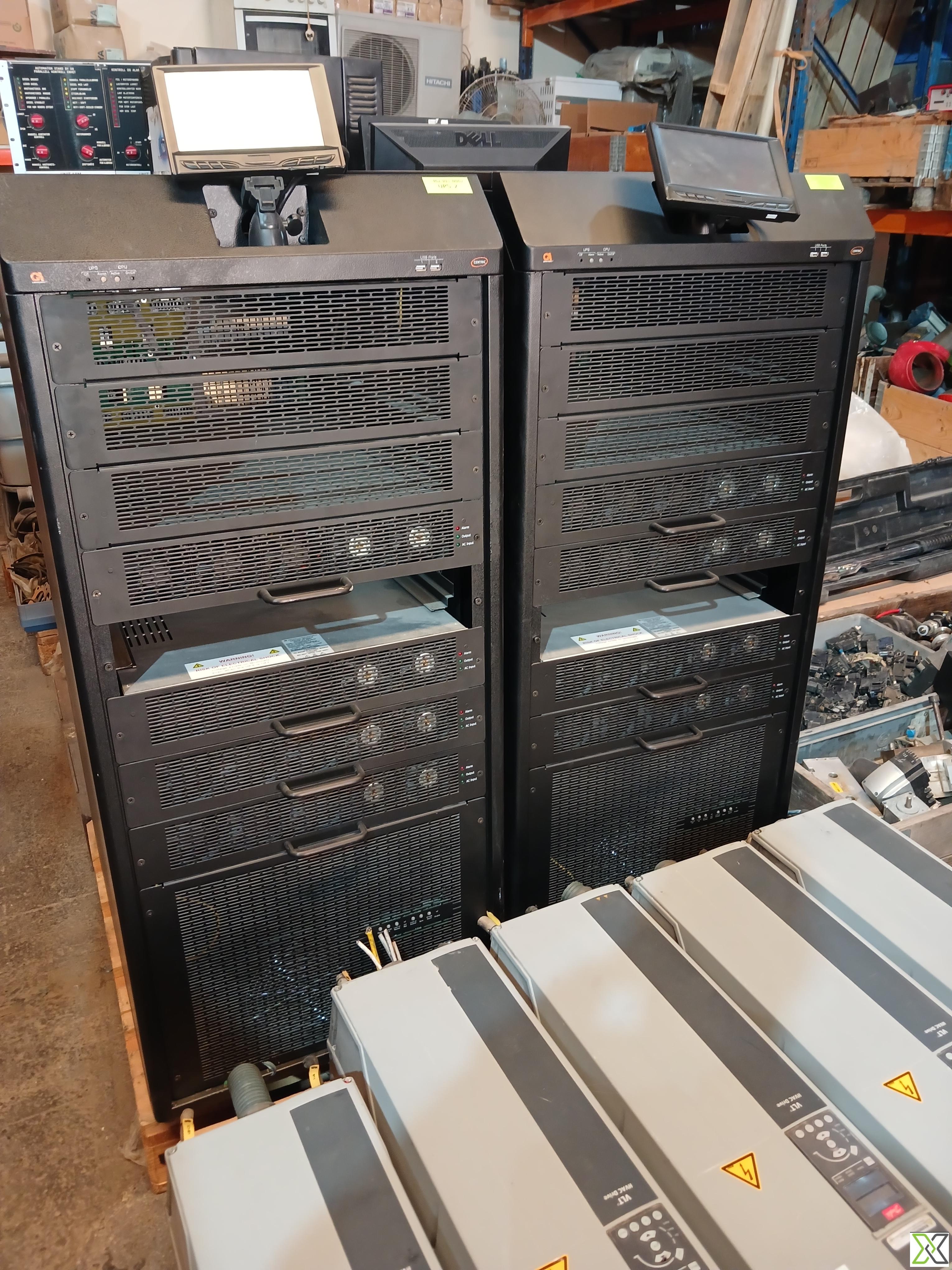

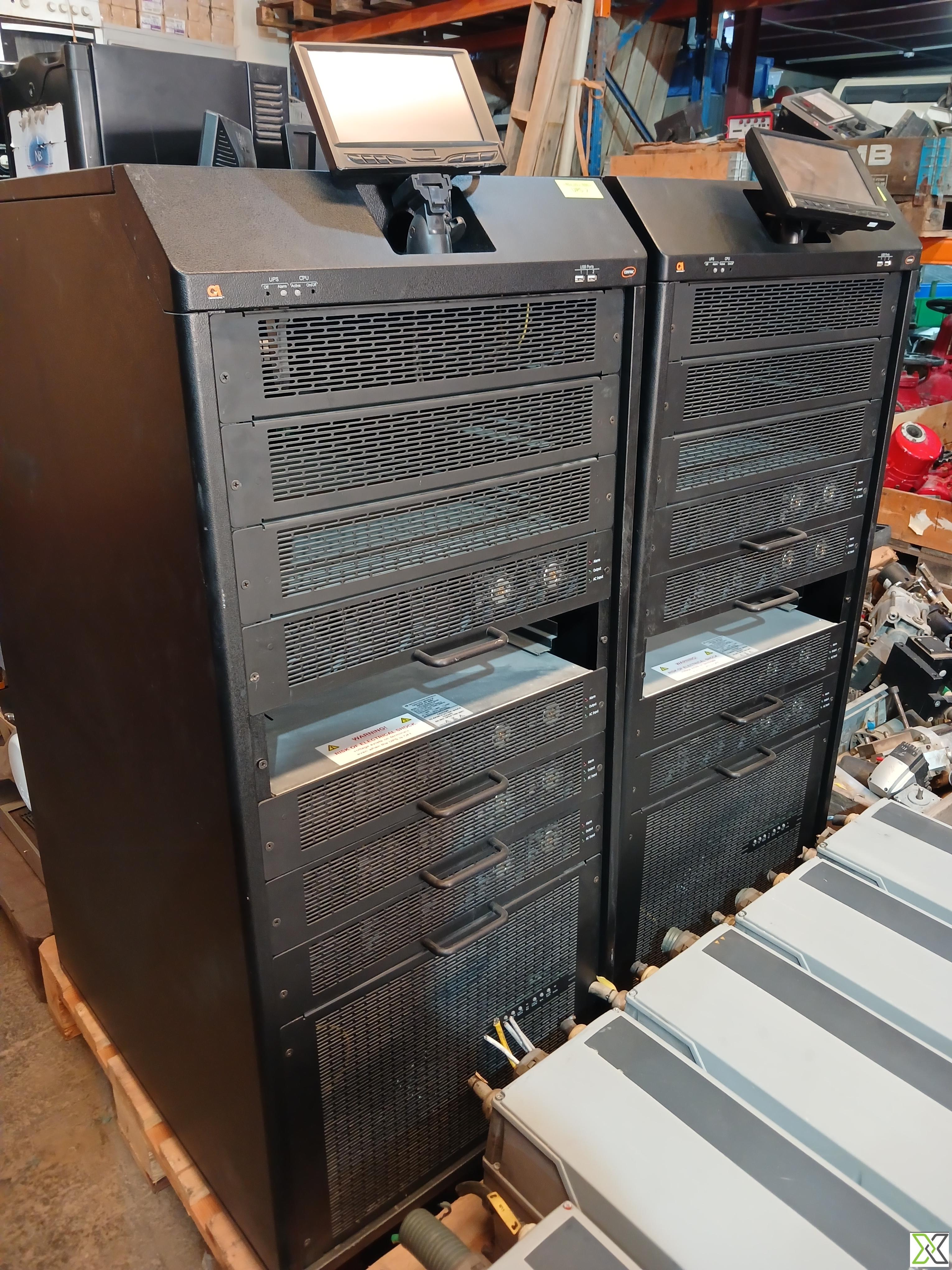

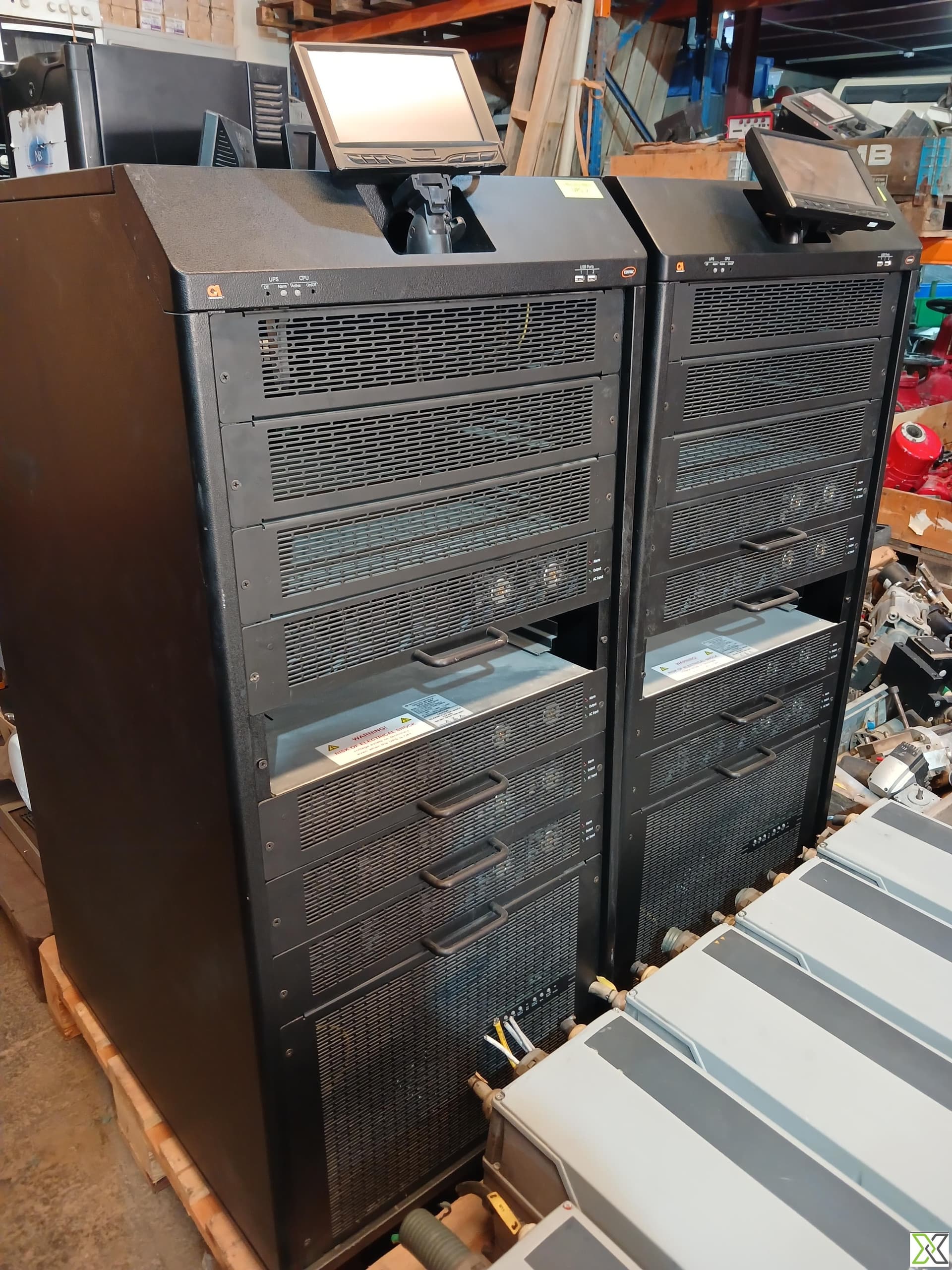

Centric-L 125K Power Conversion Module with UPSCN25K400V3P-405-R4 UPS Module

The Centric-L 125K Power Conversion Module is a robust and efficient solution designed for high-demand power environments. Operating across standard three-phase configurations (380V / 400V / 415V), the unit offers 125 kW of reliable output with a maximum DC link of ±405 VDC. It supports a 3-phase WYE input/output and ensures smooth power flow at both 50 and 60 Hz frequencies. Integrated into the system is the UPSCN25K400V3P-405-R4 UPS module, rated at 25 kW, designed for seamless transition during power fluctuations. The UPS module features a matched DC link voltage of ±405 VDC and supports up to 38A, ensuring stable, continuous operation of critical systems. Ideal for data centers, industrial plants, and power-sensitive facilities.

Specifications:

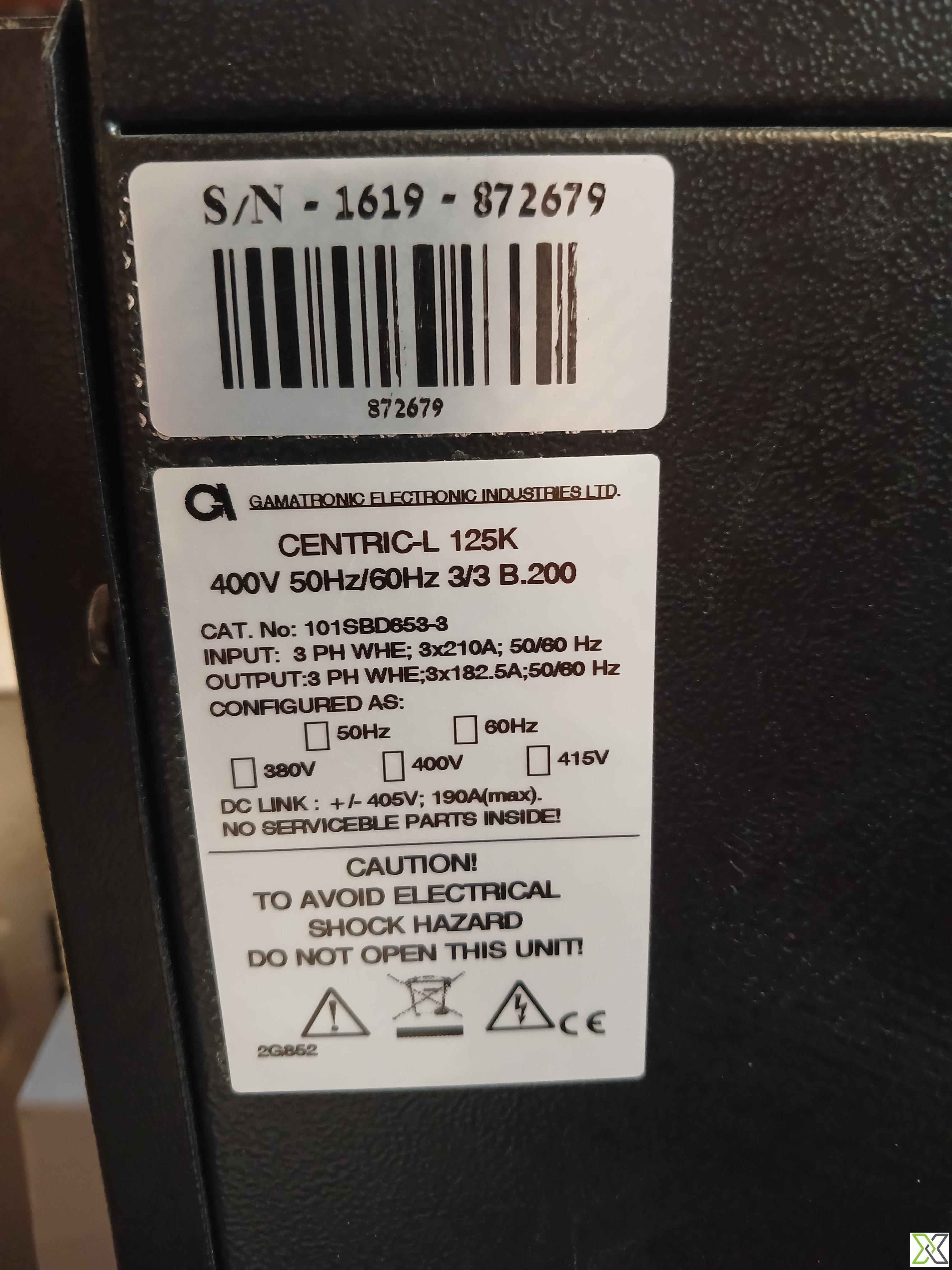

– Main Module Model: Centric-L 125K
– Power Rating (Main): 125 kW
– Input: 3 Phase WYE; 3×210A; 50/60 Hz
– Output: 3 Phase WYE; 3×182.5A; 50/60 Hz
– Voltage Configuration: 380V / 400V / 415V
– DC Link Voltage: ±405 VDC; 190A max
– Catalog Number: 101SBD853-3
– Serial Number: 1619-872679

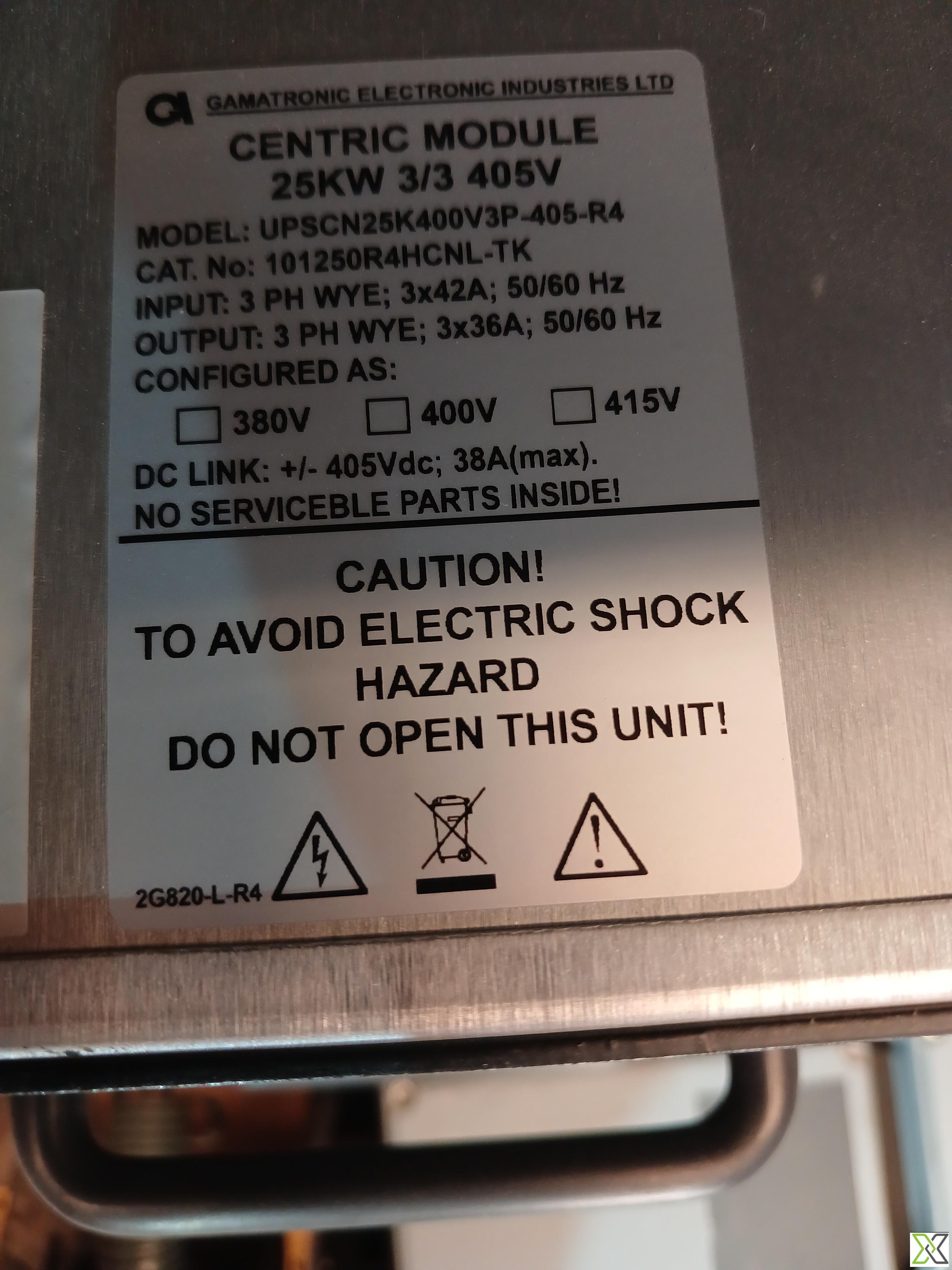

– UPS Module Model: UPSCN25K400V3P-405-R4
– Power Rating (UPS): 25 kW
– Input: 3 Phase WYE, 3×42A, 50/60 Hz
– Output: 3 Phase WYE, 3×36A, 50/60 Hz
– Voltage Configuration: 380V / 400V / 415V
– DC Link Voltage: ±405 VDC; 38A max
– Part Number: 101250R4HCNL-TK
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Centric-L 125K
Color	Black
ISO 15926 Pt 4	3589
PCA RDS Code	RDS874754
CFIHOS ID	CFIHOS-30000376
Rated Input Frequency	50/60 Hz
Rated output Apparent Power	125 kVA
Rated Output Frequency	50/60 Hz
Rated Input Voltage	380 / 400 / 415 VAC
Rated Output Voltage	380 / 400 / 415 VAC
Rated Power Factor	1.0
