Solar Taurus 70 Gas Turbine Generator Set – SoLoNOx

ReflowX SKU: REF-9847

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

New
OEM

Solar turbines incorporated
Equipment code

CFIHOS-30000534
Total Price
Per Unit Price

$ 6,380,000.00

Short Description

Brand new Solar Taurus 70 gas turbine generator set with SoLoNOx combustion technology, 7.96 MW output, and zero operational hours. Fueled by natural gas, rated at 50 Hz, 10.5 kV. Packaged for immediate deployment.

Description

Solar Taurus 70 Gas Turbine Generator Set – 7.96 MW, SoLoNOx, Zero Hours

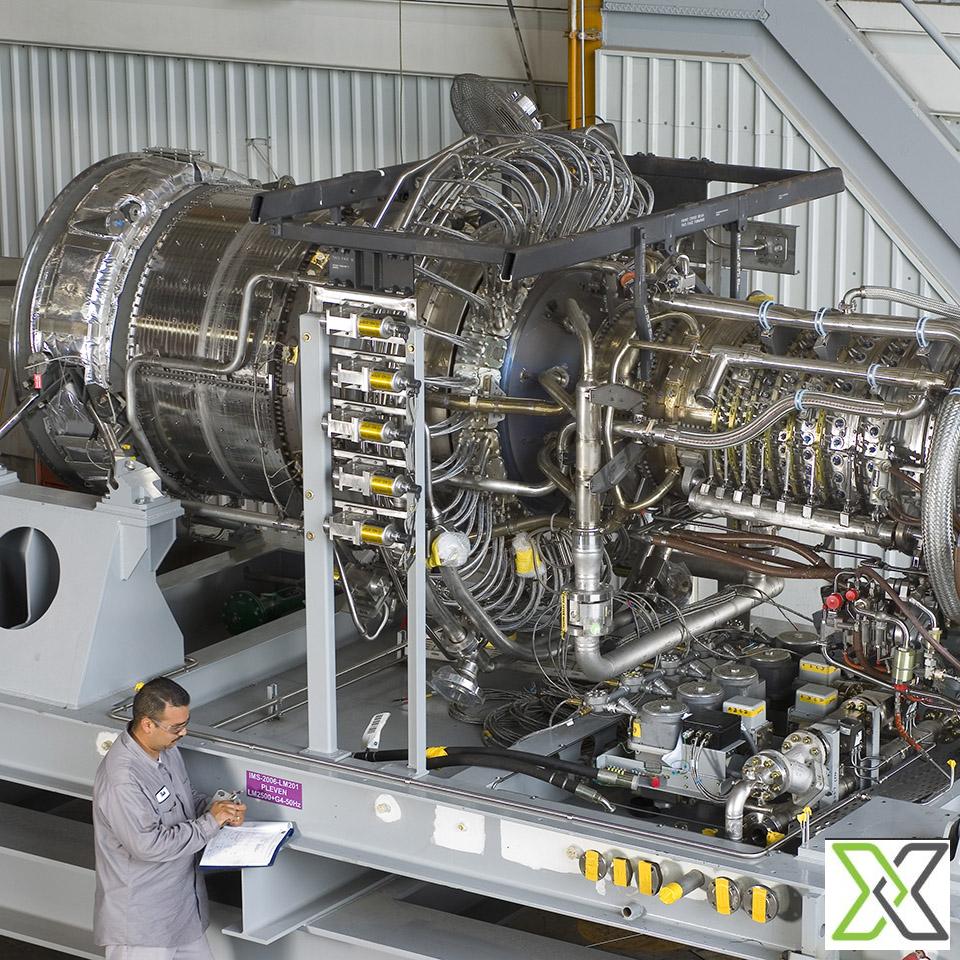

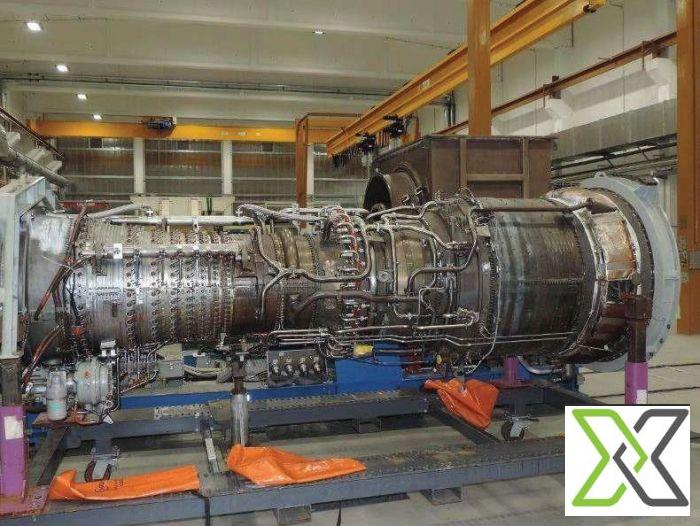

Offered for sale is a brand new Solar Taurus 70 gas turbine generator set configured for power generation. This unit features a high-efficiency, single-shaft design and is equipped with a 14-stage axial compressor and SoLoNOx dry low NOx combustion technology. With zero hours of operation since manufacture, the turbine is in pristine condition and is rated at 7.96 MW electrical output at 50 Hz. It includes an integrated Turbotronic 4 control system, enclosure with fire detection and CO₂ suppression, lube oil system, and advanced air inlet/exhaust handling. The system is containerized and ready for immediate shipment from China.

Specification:

– Product Name: Gas Turbine Generator Set
– Model: Taurus 70
– Manufacturer: Solar Turbines Incorporated (Caterpillar Company)
– Year of Manufacture: Unused / Zero Hours
– Power Output: 7965 kWe
– Frequency: 50 Hz
– Voltage: 10.5 kV
– Fuel Type: Natural Gas
– Combustion Type: Dry Low NOx (SoLoNOx)
– Engine Type: Single-Shaft, 14-Stage Axial Compressor
– Compressor Pressure Ratio: 17.6:1
– Inlet Air Flow: 58.5 kg/s
– Exhaust Flow: 96,775 kg/h
– Exhaust Temperature: 505°C
– Heat Rate: 10,505 kJ/kWe-hr
– Engine Efficiency: 34% (at generator terminals)
– Generator Type: 3-Phase, 4-Pole, Synchronous

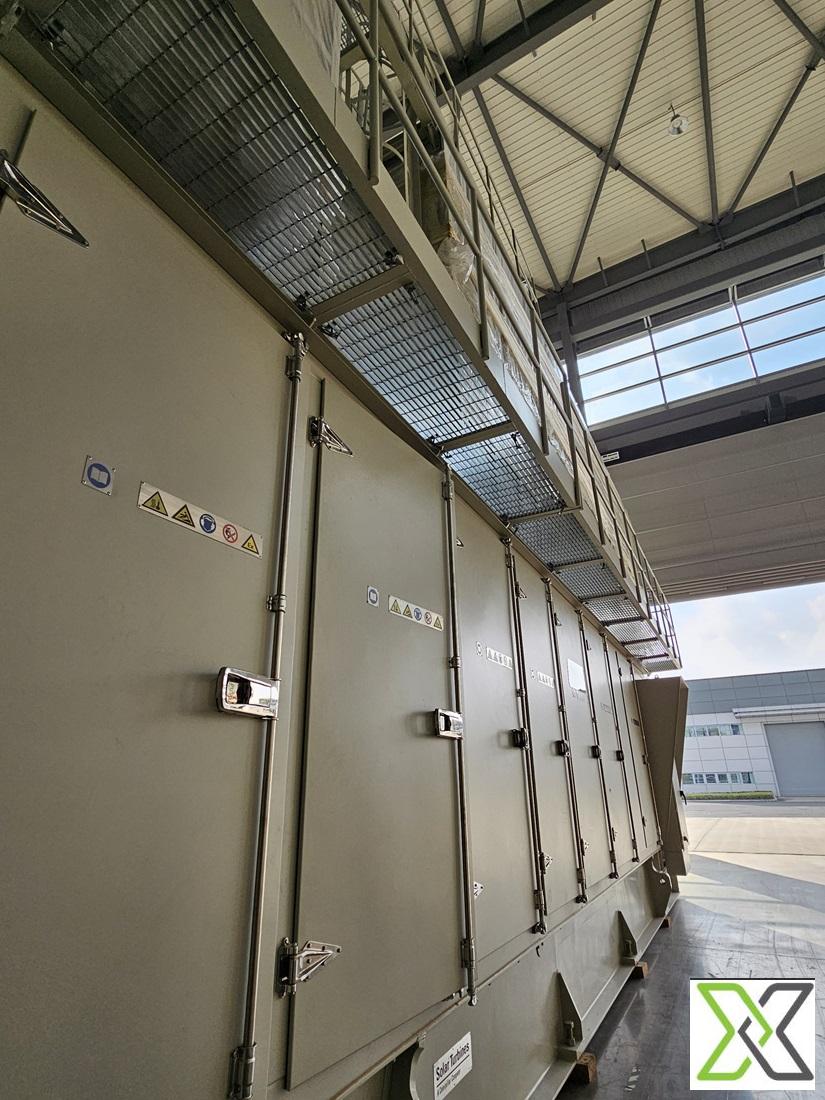

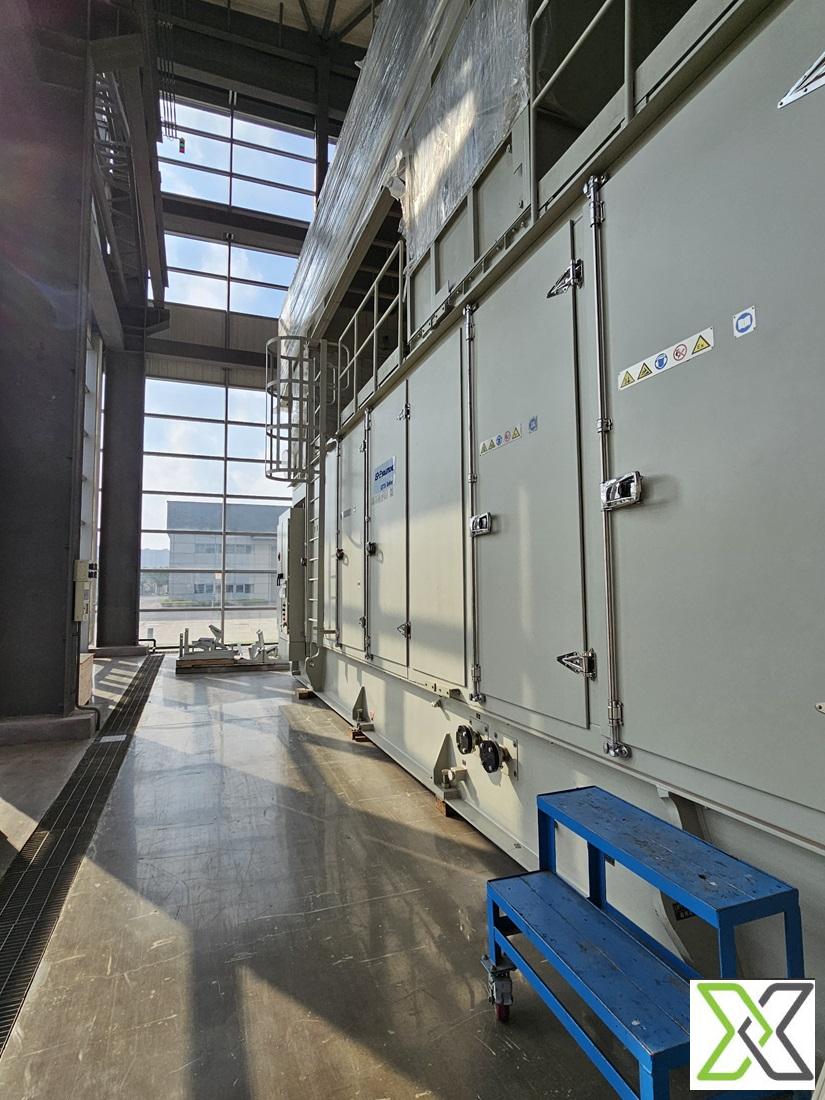

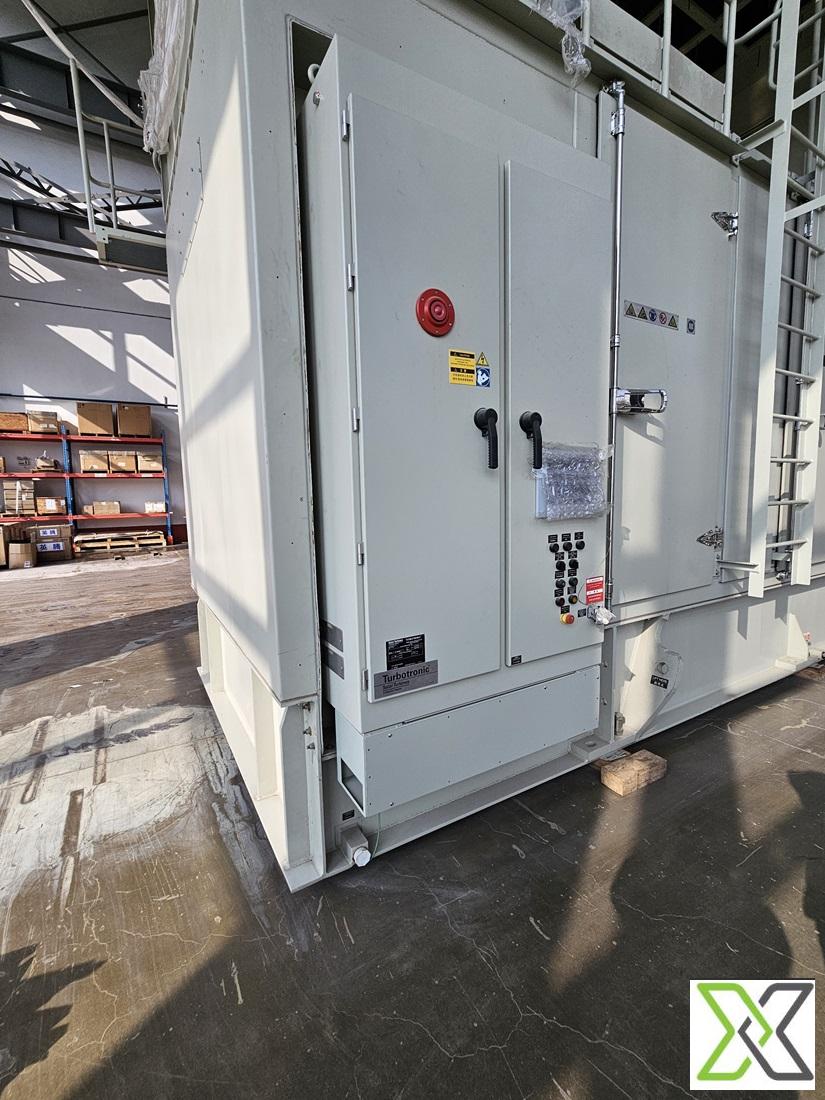

– Enclosure: Fire-protected, noise-insulated
– Control System: Turbotronic™ 4 with auto synchronization and performance monitoring
– Vibration Monitoring: Proximity and velocity transducers
– Lube Oil System: Integrated with AC/DC backup and heaters
– Cooling System: Air-to-oil and optional water-to-oil coolers
– Enclosure Dimensions (L×W×H): Approx. 10.8 m × 3.0 m × 3.7 m
– Package Weight: 62,900 kg
– Certification: NEC, CSA Class 1, Div. 2
– Origin: USA
– Current Location: China
– Delivery: Immediate FOB China Port
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Taurus 70
Manufacturer Name	Solar Turbines Incorporated
Usage Hours	00
Temperature Range	-29°C to +50°C
Pressure Rating	17.6 bar
Voltage	10.5 kV
Color	Gray
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	7.965 MW
Speed	3,000 RPM
Direction of Rotation	Clockwise
Design Specification	API 616
Normal Operating Temperature	15°C to 50°C
Explosion Protection Gas Group	Group IIA/IIB
Explosion Protection Temperature Class	Class T3
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	-29°C
Operation Continuous Intermittent	Rated for continuous duty
Upper Limit Operating Temperature	+50°C ambient
Number Of Shafts	Single-shaft gas turbine design
Test Medium	Natural Gas during factory functional test
Test Pressure	Lube oil system: 6 to 10 bar
Turbine Cycle	Simple Cycle
Insulation Class	Class F

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
