BBC Brown Boveri eQU 315 S2AA Motor + Dickow NCL125-250 Pump Set

ReflowX SKU: REF-96

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

BBC Brown Boveri
Equipment code

Short Description

BBC Brown Boveri electric motor (68 kW, 380V, IP44) paired with Dickow NCL125-250 centrifugal pump (240 m³/h, 25 m head), ideal for medium-duty industrial fluid transfer applications.

Description

BBC Brown Boveri eQU 315 S2AA Motor + Dickow NCL125-250 Pump Set

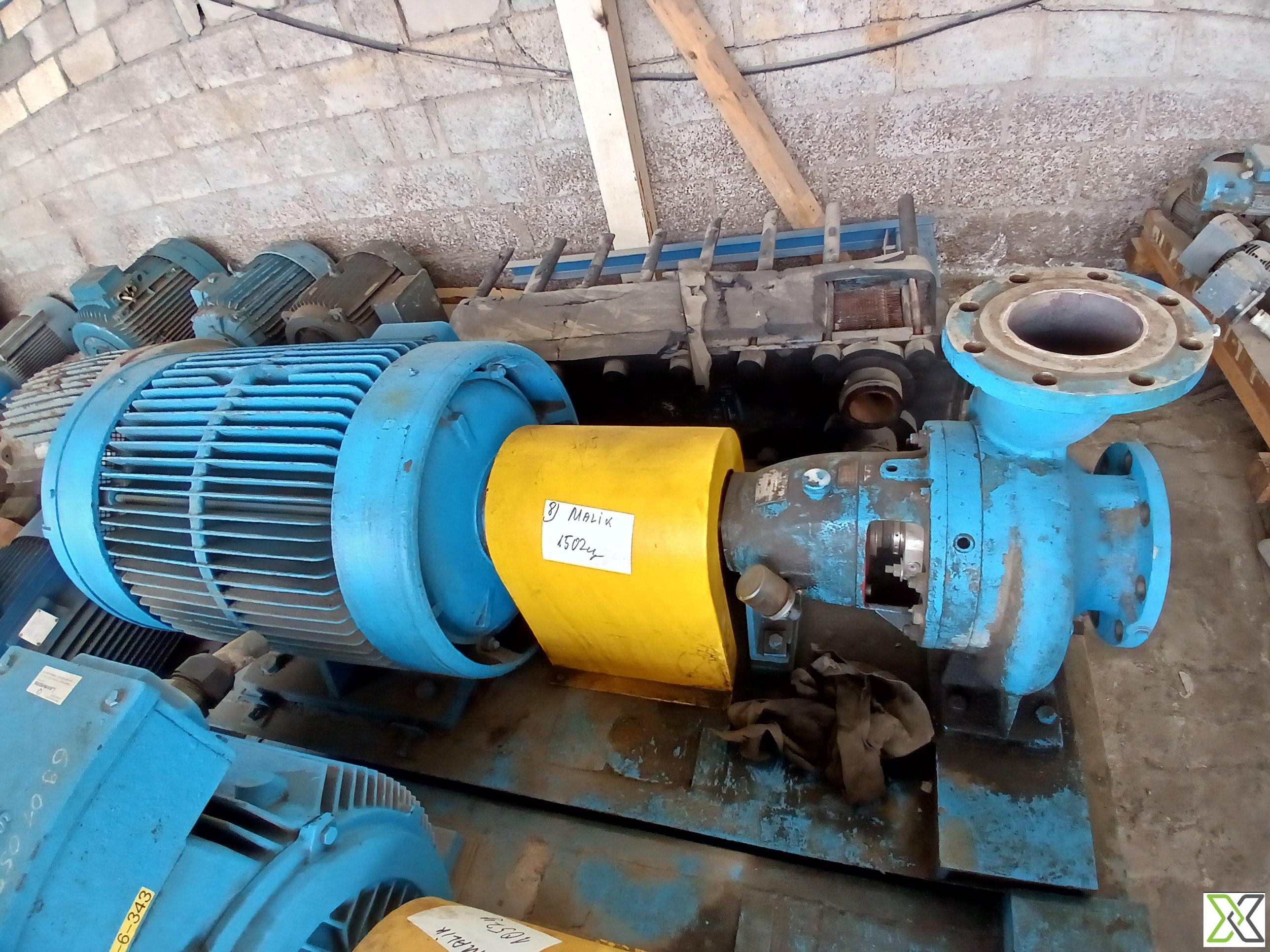

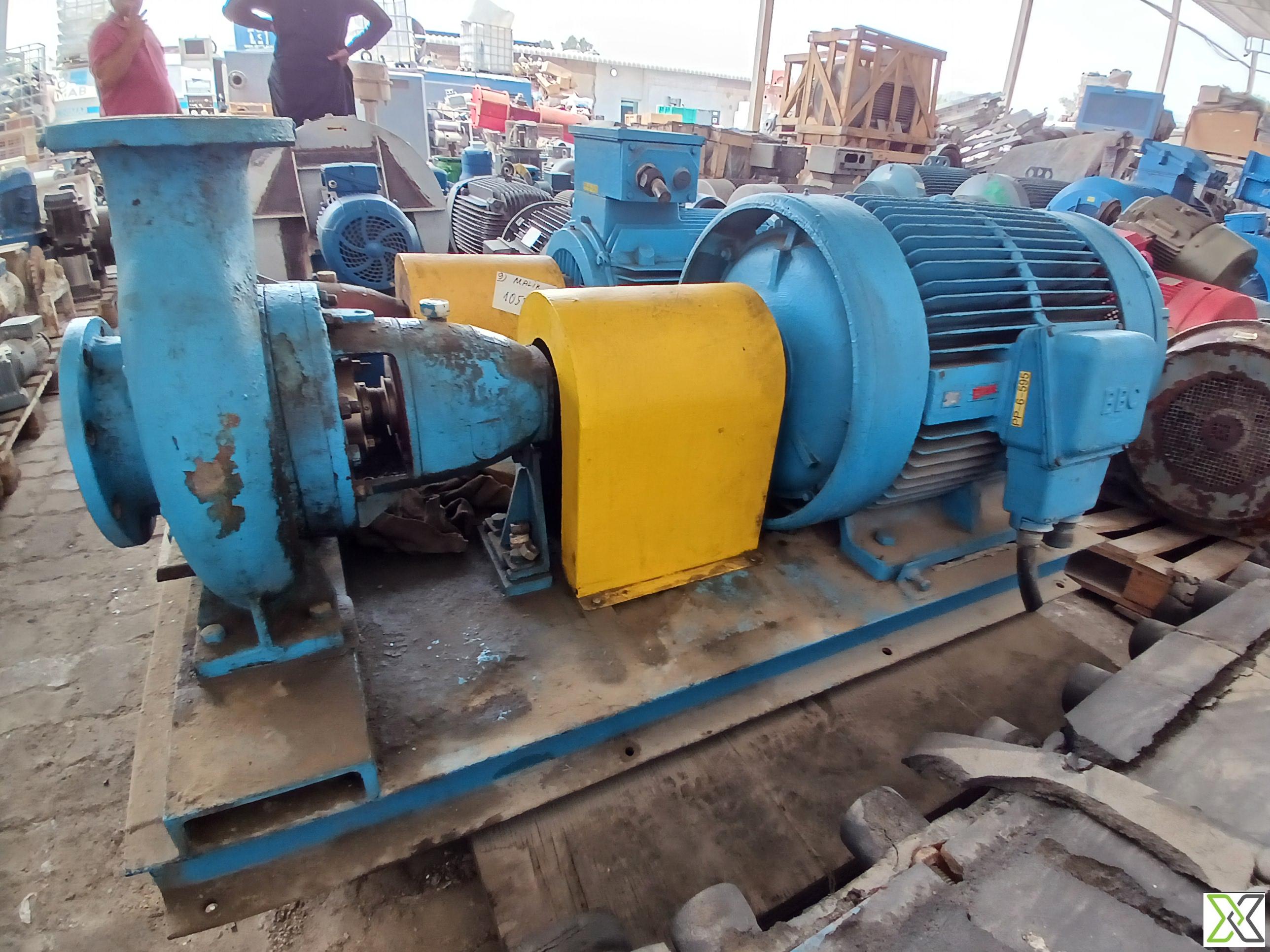

This pump-motor set features a BBC Brown Boveri eQU 315 S2AA high-speed electric motor coupled with a Dickow Pumpen NCL125-250 centrifugal pump, forming a robust unit for medium-capacity fluid handling. The motor, manufactured in 1975, delivers 68 kW at 2970 RPM, operating on a 380 V Δ-connection with a high power factor of 0.94 and IP44 protection. It conforms to PTB test standard TLB/M-0971 and is rated under Insulation Class F.

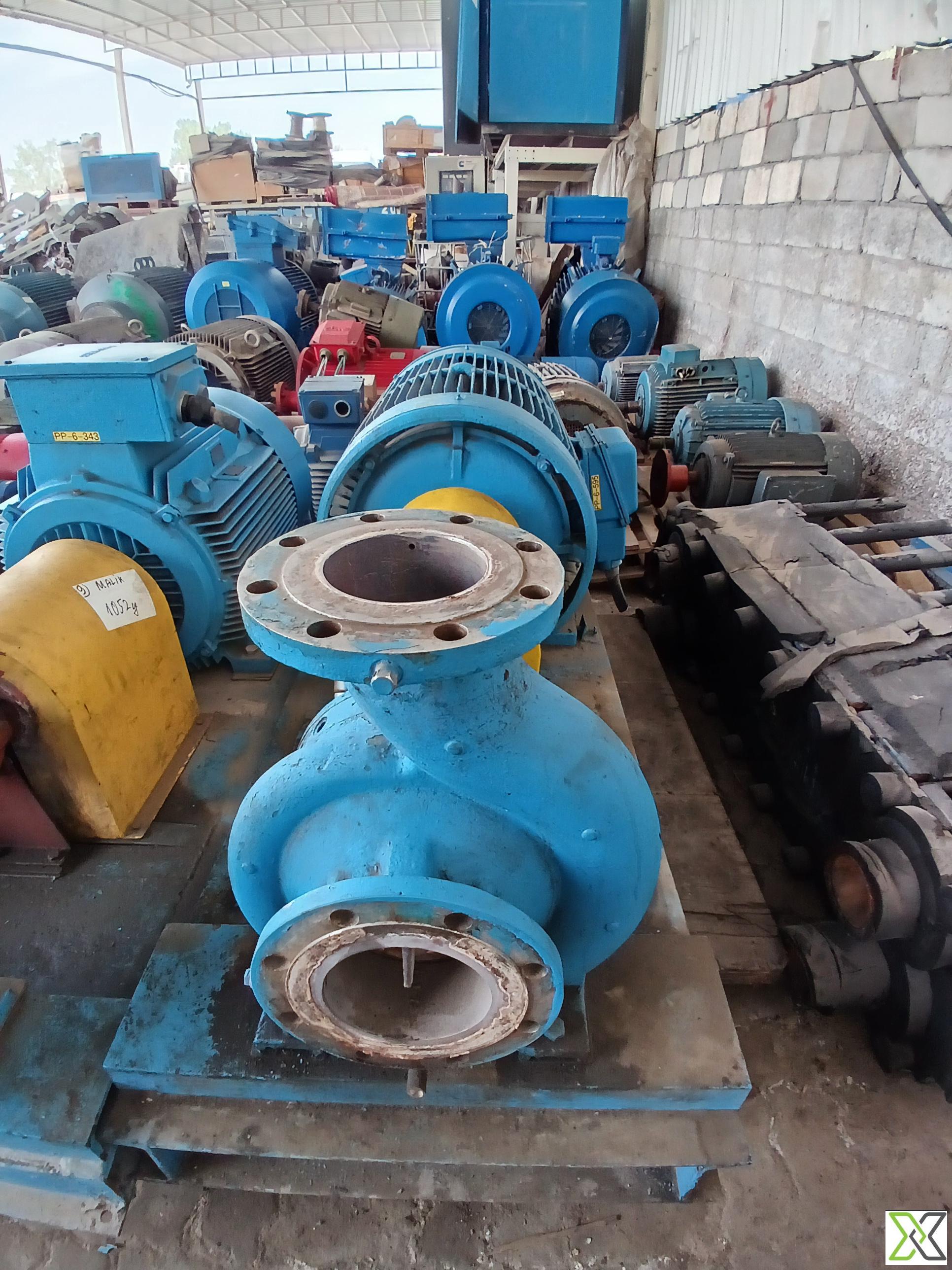

The Dickow NCL125-250 pump, manufactured in 1995, supports a flow capacity of 240 m³/h with a 25-meter head, operating at 2900 RPM and requiring 25 kW power input. The design accommodates low-viscosity fluids (0.96 cP), making it suitable for industrial water or chemical circulation.

This matched set is a proven, high-speed pumping solution with dependable electrical and hydraulic performance for process or transfer duty cycles.

Specifications:

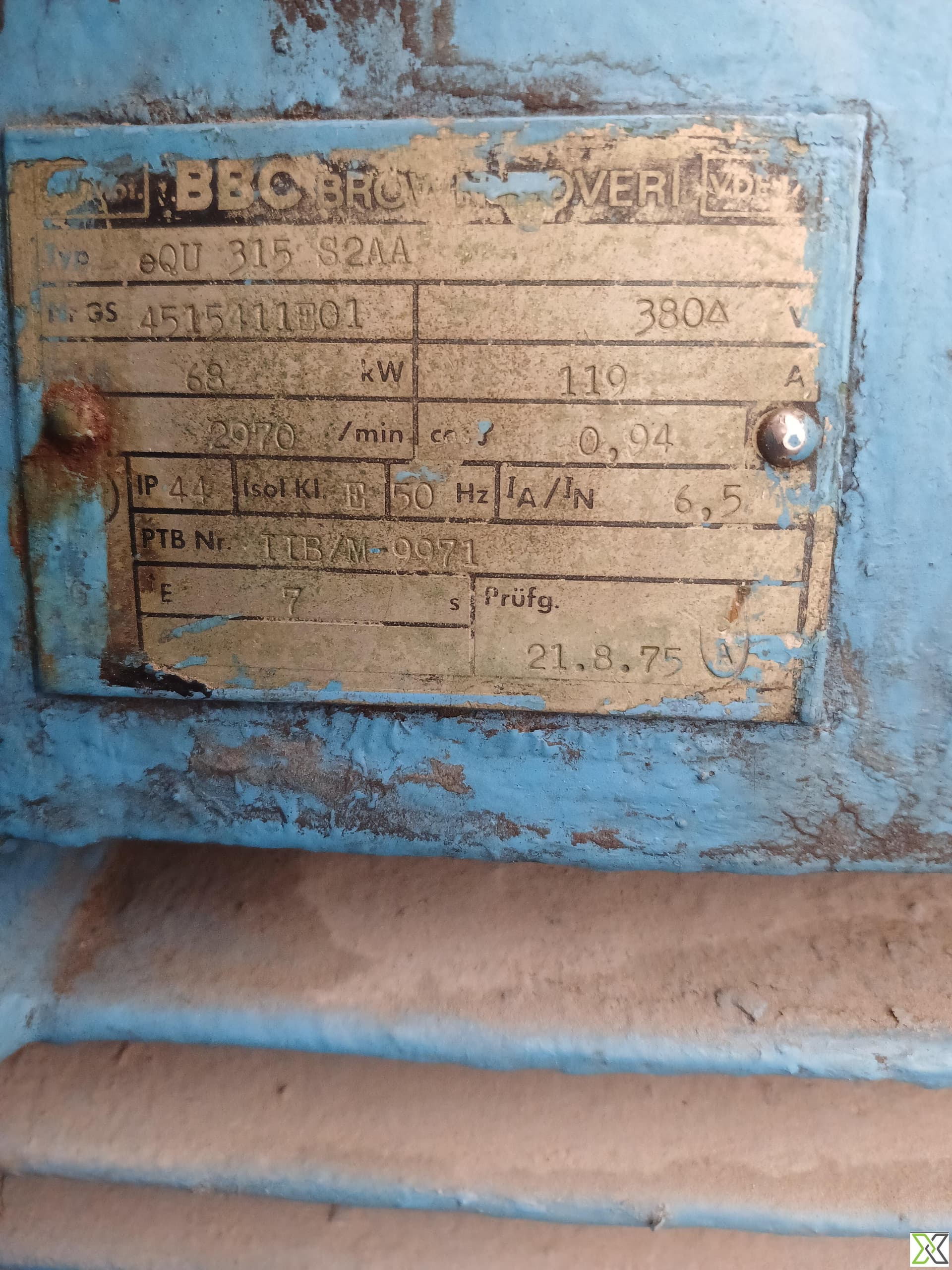

Motor (BBC Brown Boveri eQU 315 S2AA):
– Manufacturer: BBC Brown Boveri
– Model/Type: eQU 315 S2AA
– Serial Number: 4515111B01
– Rated Power Output: 68 kW
– Voltage: 380 V (Δ connection)
– Current: 119 A
– Speed: 2970 RPM
– Frequency: 50 Hz
– Power Factor (Cos φ): 0.94
– Protection Class: IP44
– Insulation Class: Isol Kl F
– Date of Manufacture: 21.08.1975
– Test Standard: PTB Nr. TLB/M-0971
– Current Ratio (IA/IN): 6.5

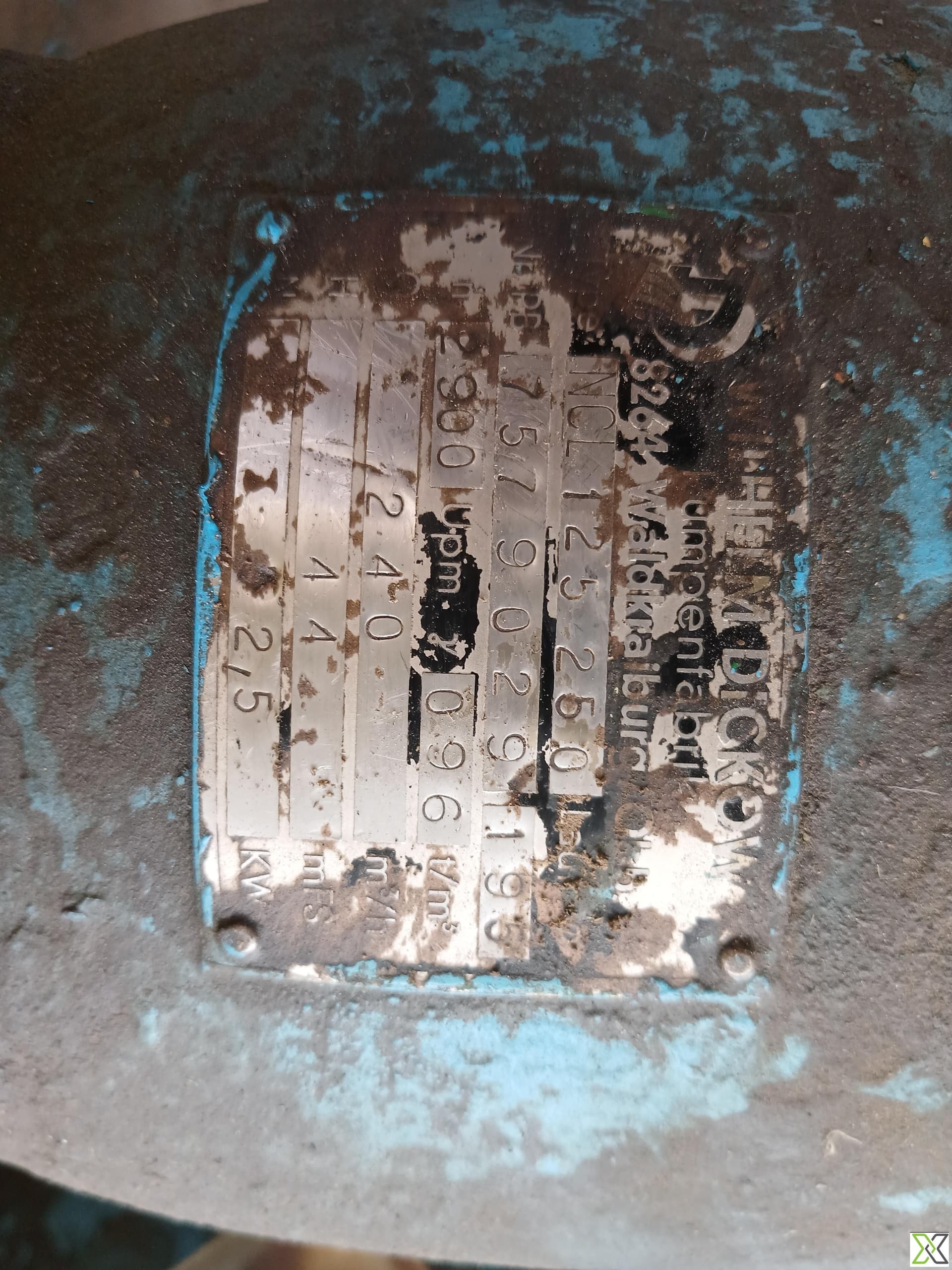

Pump (Dickow NCL125-250):
– Manufacturer: Dickow Pumpen
– Model: NCL125-250
– Serial Number: 7579025
– Capacity: 240 m³/h
– Head: 25 m
– Speed: 2900 RPM
– Power Input Required: 25 kW
– Fluid Viscosity: 0.96 cP
– Year of Manufacture: 1995
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	eQU 315 S2AA
Year of Manufacturing	1995
Voltage	380 V
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Direction of Rotation	Clockwise
Fluid Name	Chemical process liquids, hydrocarbons, or high-temperature water-based fluids
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T4
Explosion Protection Zone	Zone 1
Insulation Class	Class F
Density	Approximately 850–1100 kg/m³
Immersed	No
Normal Operating Inlet Pressure	2.0 bar (g)
Normal Operating Inlet Temperature	80°C
Normal Operating Outlet Pressure	10.0 bar (g)
Orientation	Horizontal
Upper Limit Design Pressure	25 bar (g)
