HOYER Y2E2-180L-4 Electric Motor Pump Set – 34 kW, 400/690V, B3 Mount, Dual Motors
Description

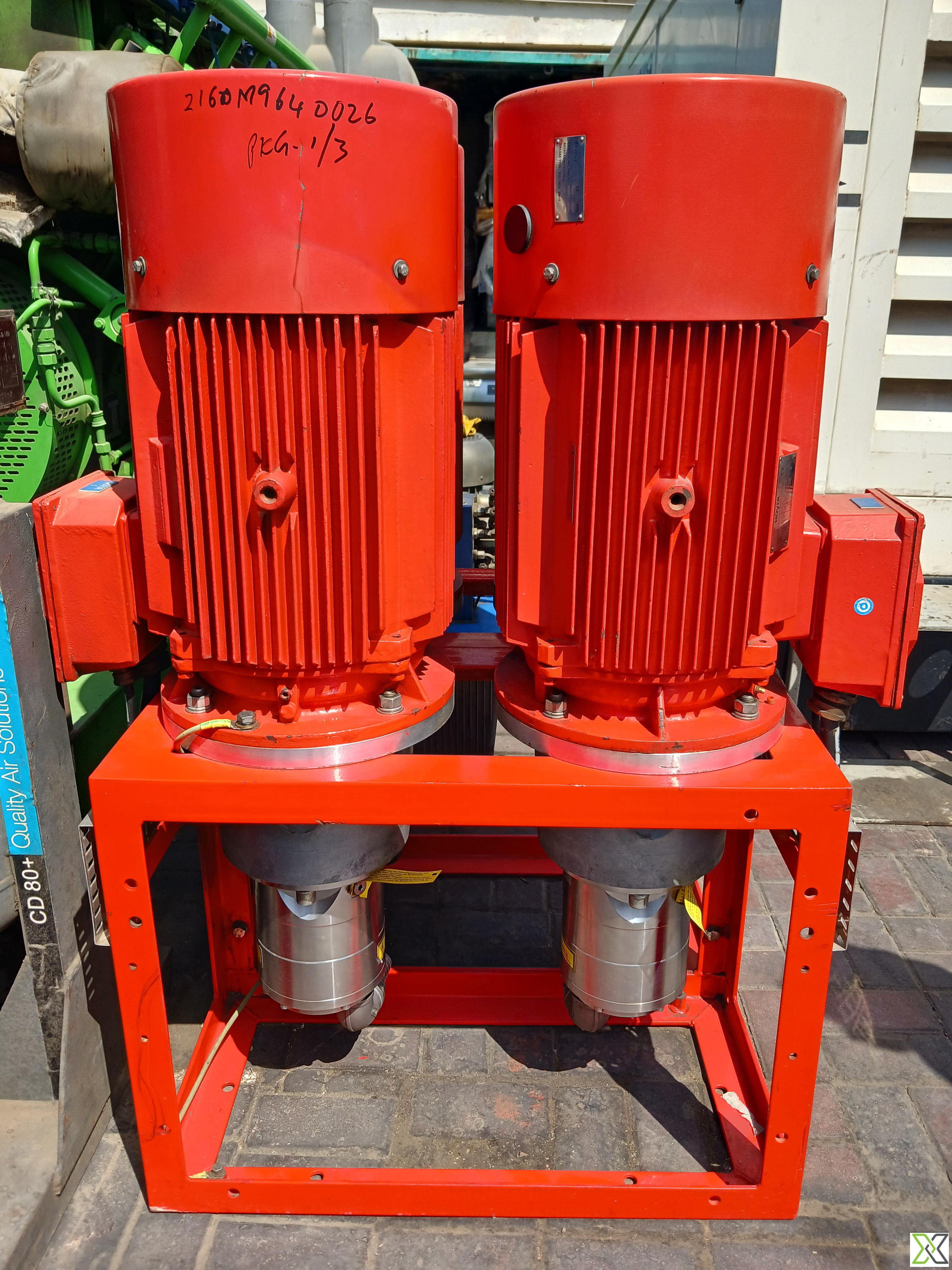

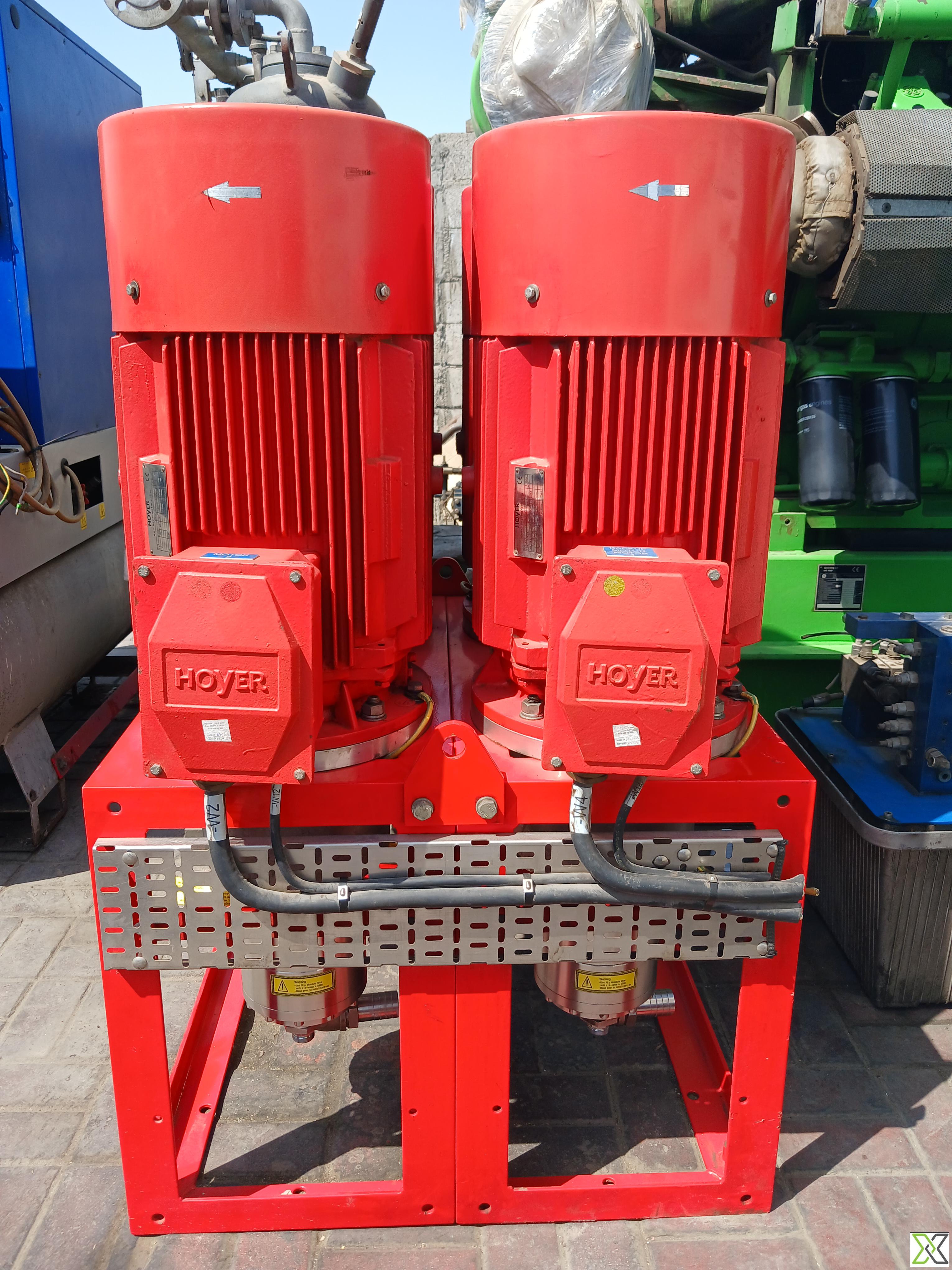

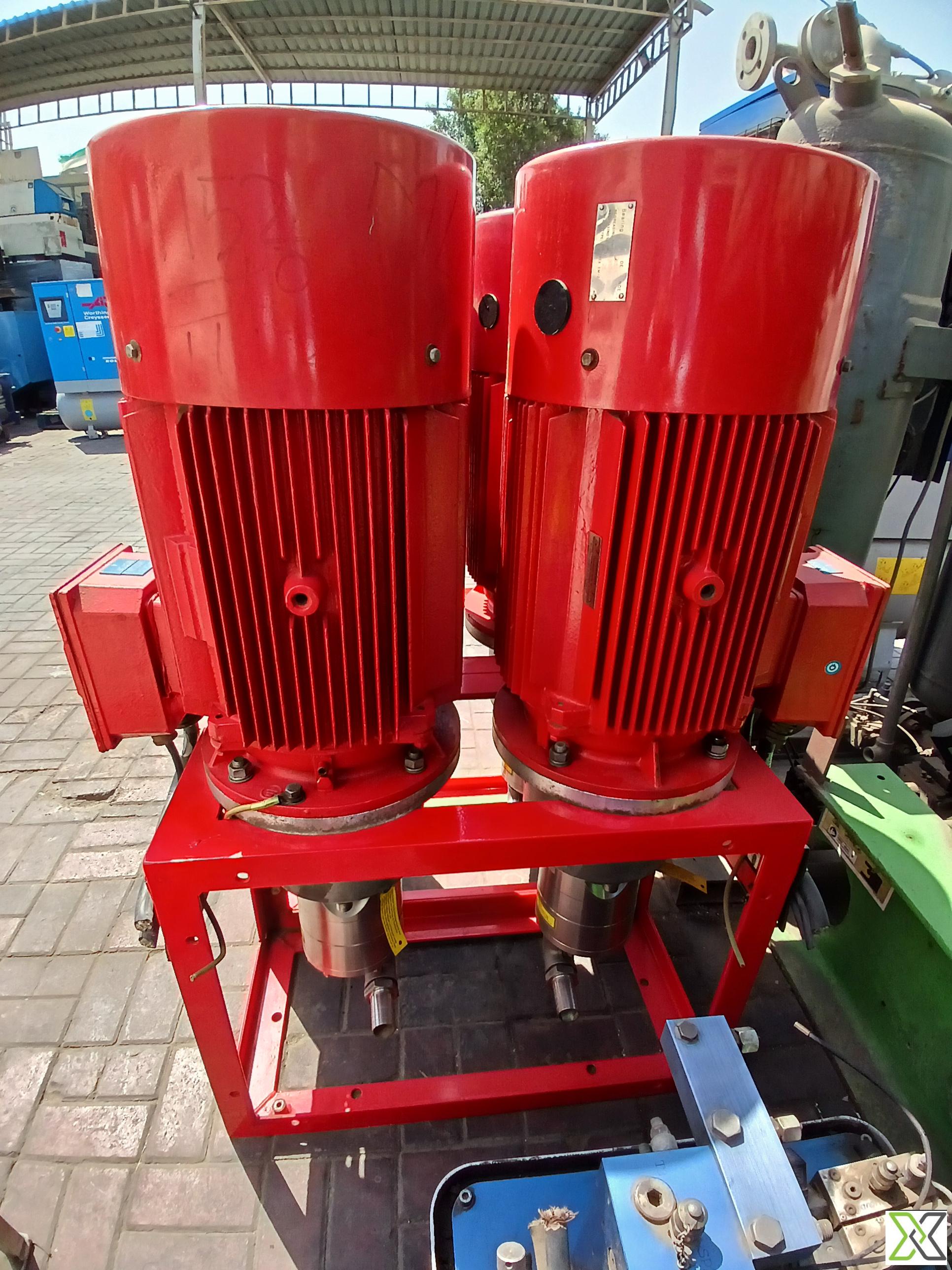

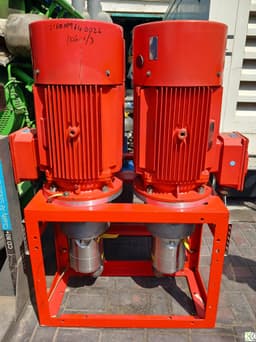

The HOYER Y2E2-180L-4 Electric Motor Pump Set is a heavy-duty, dual motor assembly engineered for continuous industrial applications. Each motor delivers a rated power of 34 kW and operates on 400/690V (Delta/Star) with a frequency range of 50/60 Hz. Designed with tropical windings and Class F insulation, the motors are built to withstand harsh environmental conditions and long-duty cycles (S1). The motors are constructed in accordance with IEC 34-1 standards and include Polyrex EM-2 grease-lubricated bearings for extended service intervals—9600 hours for DE and 9500 hours for NDE—with a 25 g regreasing requirement. The B3 mounting configuration and IP55 enclosure provide flexible installation and robust protection in demanding settings.

Specifications:

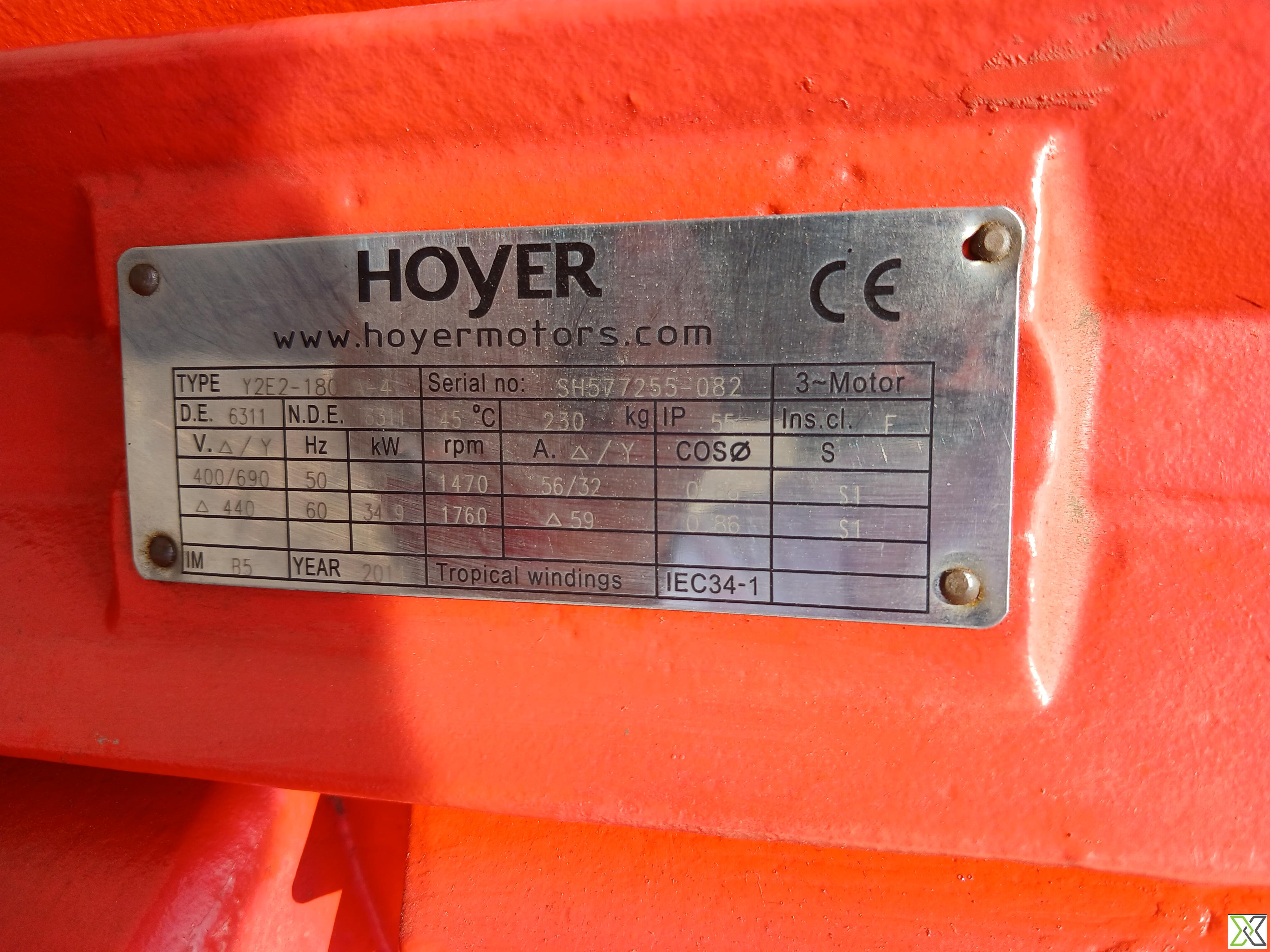

Motor Details
– Manufacturer: HOYER
– Model: Y2E2-180L-4
– Type: 3-Phase Induction Motor
– Power Rating: 34 kW
– Voltage: 400/690 V (Δ/Y)
– Frequency: 50/60 Hz
– Speed (RPM): 1470 RPM @ 50 Hz, 1760 RPM @ 60 Hz
– Current: 56 A (400 V Δ), 32 A (690 V Y) @ 50 Hz; 59 A @ 60 Hz
– Duty: S1 Continuous
– Insulation Class: F
– Protection Class: IP55
– Power Factor (Cos φ): 0.86

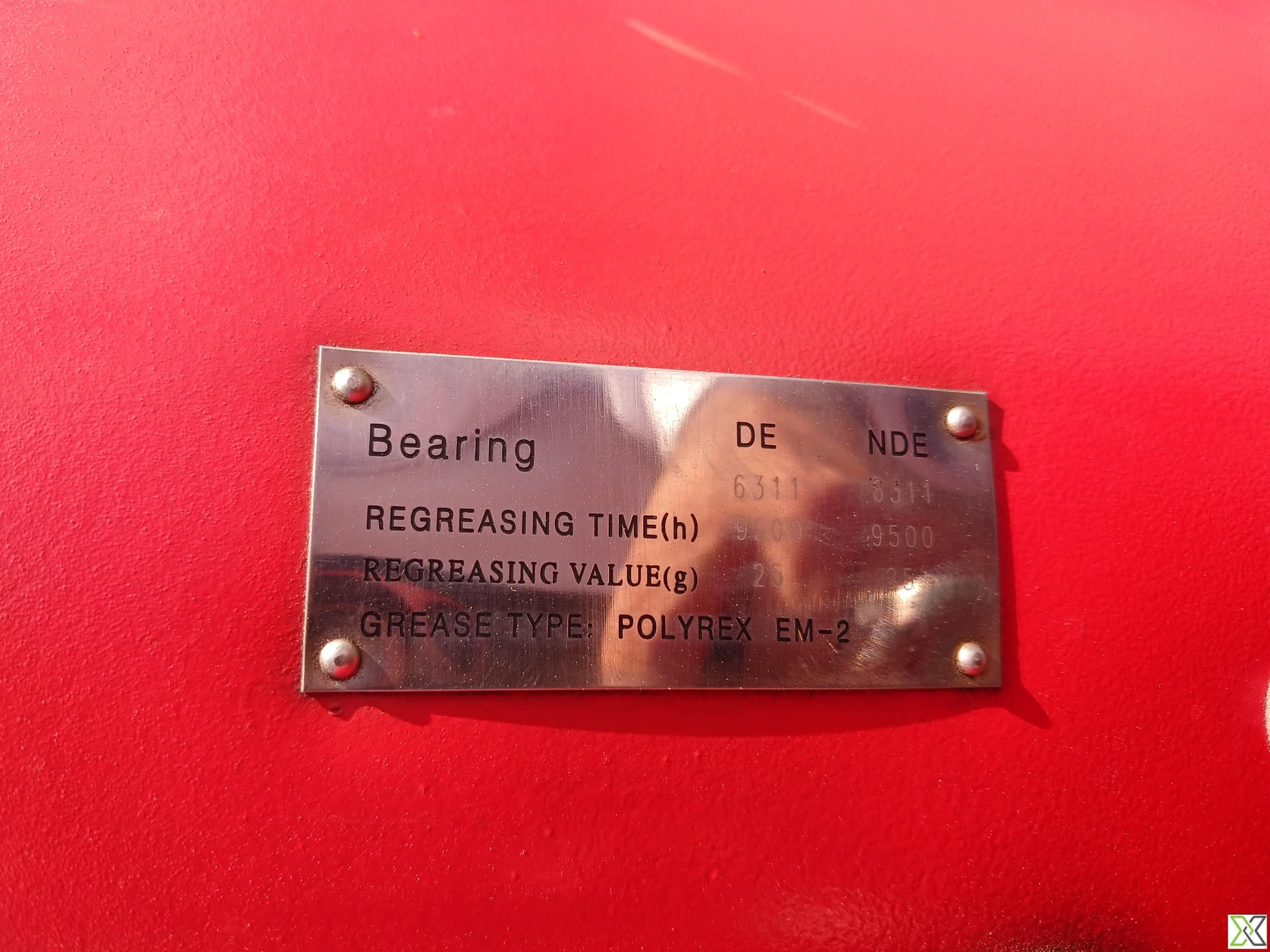

– Bearings (DE/NDE): 6311
– Grease Type: Polyrex EM-2
– Regreasing Interval: 9600 hours (DE) / 9500 hours (NDE)
– Regreasing Quantity: 25 grams
– Construction: Tropical Windings, compliant with IEC 34-1
– Mounting Type: B3
– Frame Size: R5
– Motor Quantity: Dual Motor Set
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
