MWM TCG 2032V16 Power Plant – 4,000 kW, 2005 Model, Fully Operational

MWM TCG 2032V16 Power Plant – 8 MW (2 x 4 MW) Dual-Fuel Generator Set - 2005

ReflowX SKU: REF-7213

Product Details

  • Quantity
    2
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    Indonesia
  • Condition
    Surplus
  • OEM
    MWM (Motoren-Werke Mannheim AG)
  • Equipment code
    gen-d
  • Total Price
  • Per Unit Price
    $ 566,500.00
Whatsapp

Short Description

MWM TCG 2032V16 dual-fuel power plant comprising two V16 gas/diesel engines rated at 4 MW each. Water-cooled, high-efficiency engines with integrated control and fuel flexibility. Installed in 2005.

Description

MWM TCG 2032V16 Power Plant – 8 MW (2 x 4 MW) Dual-Fuel Generator Set - 2005

The MWM TCG 2032V16 Power Plant is a robust, high-output generator system designed for continuous or peak-load operations in industrial, utility, and remote settings. Installed in 2005, this configuration includes two V16-cylinder, four-stroke engines, each rated at 4,000 kW, delivering a total capacity of 8 MW.

Designed for dual-fuel operation, the TCG 2032V16 supports either natural gas or diesel, making it adaptable to variable fuel availability and site requirements. It is equipped with an advanced integrated control system that ensures automated operation, diagnostics, and performance optimization, contributing to high reliability and fuel efficiency.

With a compression ratio optimized per fuel type, water-cooling for thermal stability, and a forced lubrication system, this engine model is engineered for long service life and reliable operation under varying load conditions. The engines are compliant with regional emissions standards depending on configuration.

Specifications:

Make: MWM (Motoren-Werke Mannheim)
Model: TCG 2032V16
Engine Type: 4-stroke, V16-cylinder
Number of Units: 2 engines
Total Output Capacity: 8 MW (2 × 4,000 kW)
Engine Speed: 1500 rpm (for 50 Hz operation)
Fuel Type: Natural Gas or Diesel
Cooling System: Water-cooled
Emission Compliance: Meets local/regional emission regulations (varies by fuel and setup)

Engine Technical Details:
Bore x Stroke: 160 mm × 190 mm
Displacement per Cylinder: Approx. 33.5 liters
Compression Ratio: Approx. 14:1 (Diesel), variable for gas
Ignition System:
 – Diesel: Compression ignition
 – Gas: Spark ignition
Lubrication System: Forced lubrication with oil pump

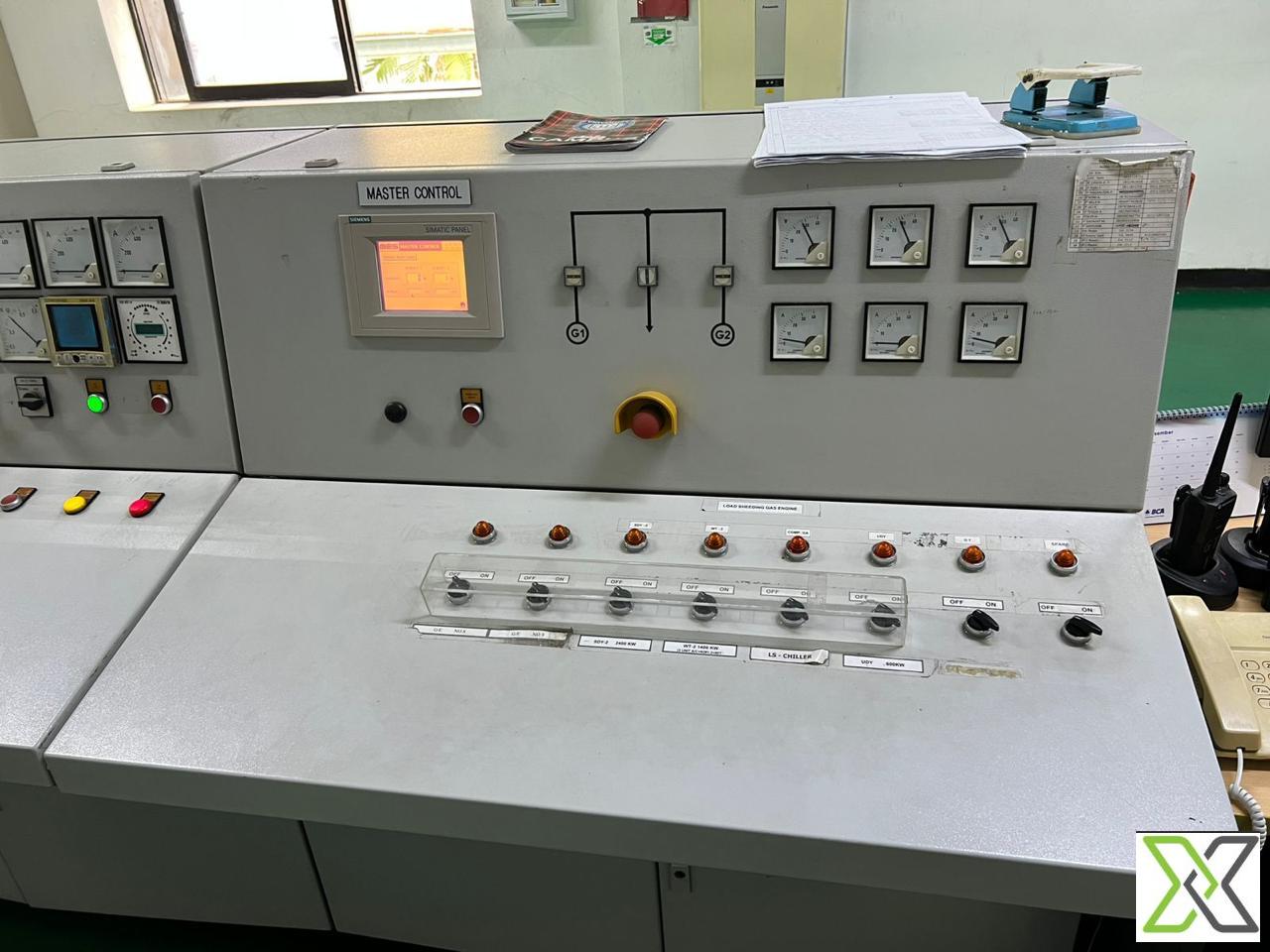

Control System: Advanced MWM integrated automation system with remote monitoring, diagnostics, and performance management

Performance Data:
Rated Output per Engine: 4,000 kW (~5,360 hp)
Power Factor: Stable operation at part and full loads
Fuel Consumption:
 – Gas: ~0.33–0.40 m³/kWh (depending on composition)
 – Diesel: ~0.23–0.27 L/kWh (depending on load and tuning)

Dimensions & Weight (Per Engine):
Length: ~4,500 mm
Width: ~2,000 mm
Height: ~2,300 mm
Weight: ~20,000–25,000 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height
2,300 mm
Width
2,000 mm
Length
4,500 mm
Weight
20,000 to 25,000 kg
ISO 15926 Pt 4
2353
PCA RDS Code
RDS873359
CFIHOS ID
CFIHOS-30000804
Output Power
4000 kW
Speed
1500 rpm
IFC Class
IfcEngineGenerator
