WOM Adjustable Choke Valve 220M – 2 1/16" – 15,000 PSI - 2014

ReflowX SKU: REF-9914

Product Details

Quantity

5
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Worldwide Oilfield Machine (WOM)
Equipment code

Get Quotation Whatsapp

Short Description

High-pressure adjustable choke valve from WOM, model 220M, rated for 15,000 PSI. Manufactured in 2014 and designed for sour service per NACE MR0175.

Description

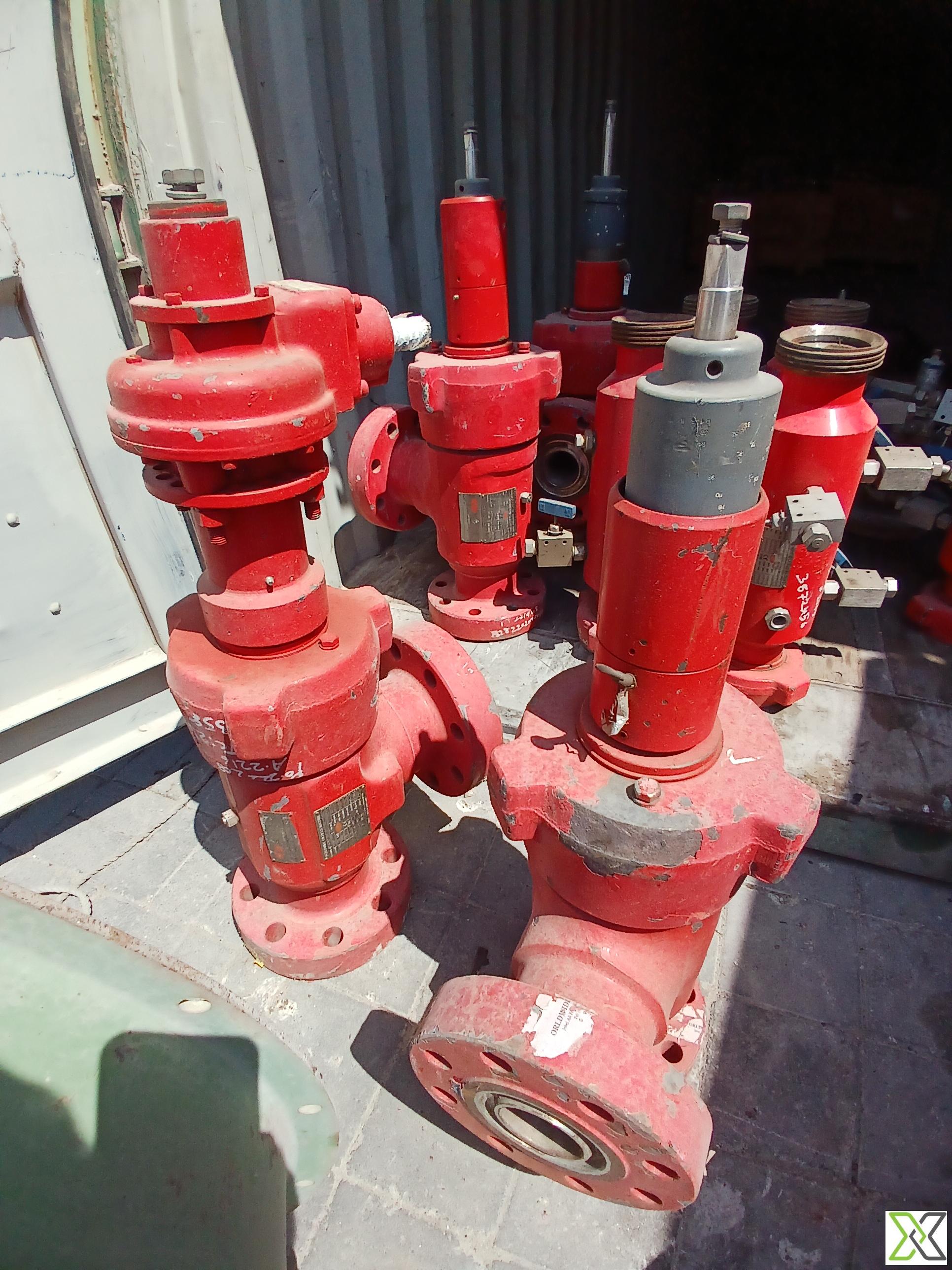

WOM Adjustable Choke Valve 220M – 2 1/16" – 15,000 PSI - 2014

The WOM Adjustable Choke Valve model 220M is engineered for demanding oilfield applications requiring precise flow control under extreme pressure conditions. With a 2 1/16-inch bore size and a pressure rating of 15,000 PSI (1034 bar), this valve meets the highest standards for well control and production choke applications. Constructed from AISI 4130 alloy steel and equipped with Inconel gate and stem components, the valve is optimized for performance in corrosive environments, complying with NACE MR0175 for sour service. The valve's flanged RTJ ends ensure secure high-pressure connections, and it is certified under API 6A and ISO 10423, with CE marking (0496). Manufactured in May 2014, this unit is PSL 3 and PR2 rated, with a temperature class P for operation up to 250°F (121°C).

Specifications:

– Component Type: Adjustable Choke Valve
– Manufacturer: Worldwide Oilfield Machine (WOM)
– Model: 220M

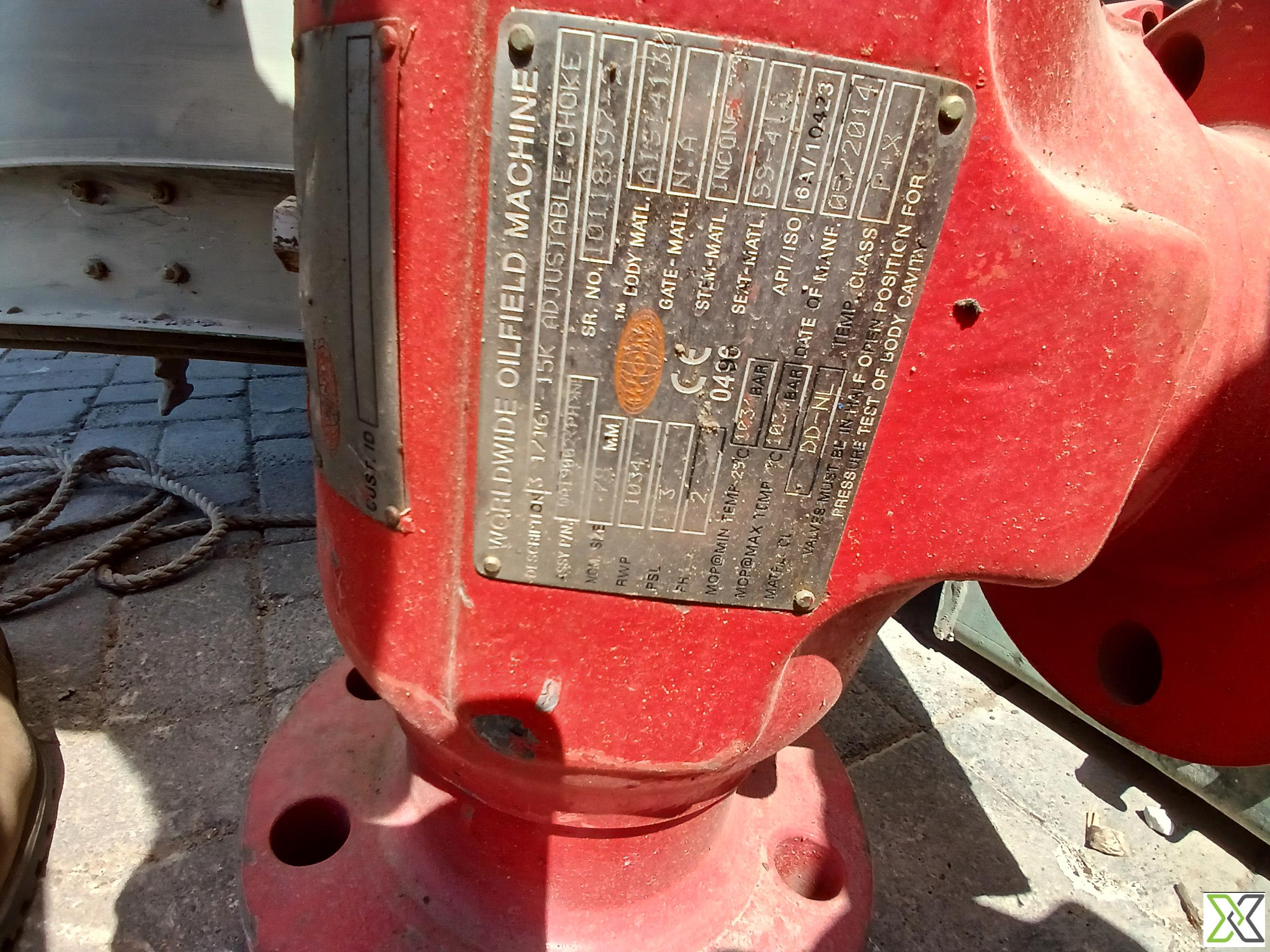

– Serial Number: 10118397
– Manufacture Date: 05/2014
– Valve Size: 2 1/16 inches
– Pressure Rating: 15,000 PSI (1034 bar)
– Temperature Class: P (Max 250°F / 121°C)
– Product Specification Level (PSL): 3
– Performance Requirement (PR): 2
– Body Material: AISI 4130 Heat-Treated Alloy Steel
– Gate Material: Inconel
– Stem Material: Inconel
– Seat Material: Elastomer
– Material Class: DD-N (NACE MR0175 Compliant)
– End Connections: Flanged – RTJ (Ring Type Joint)
– Standards Compliance: API 6A / ISO 10423
– CE Certification: Marked 0496
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	220M
Height	2-1/16"
Width	2-9/16"
Length	4-1/16"
Weight	50–70 kg
Color	Red
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Needle & Seat Adjustable Choke Valve
Failure Action	last set position
Full Opening Valve	full opening
Normal Operating Pressure	15,000 PSI
Normal Operating Temperature	–60°C to +121°C
Piping Class	API 6A 6BX
UNSPSC Code	40141600
