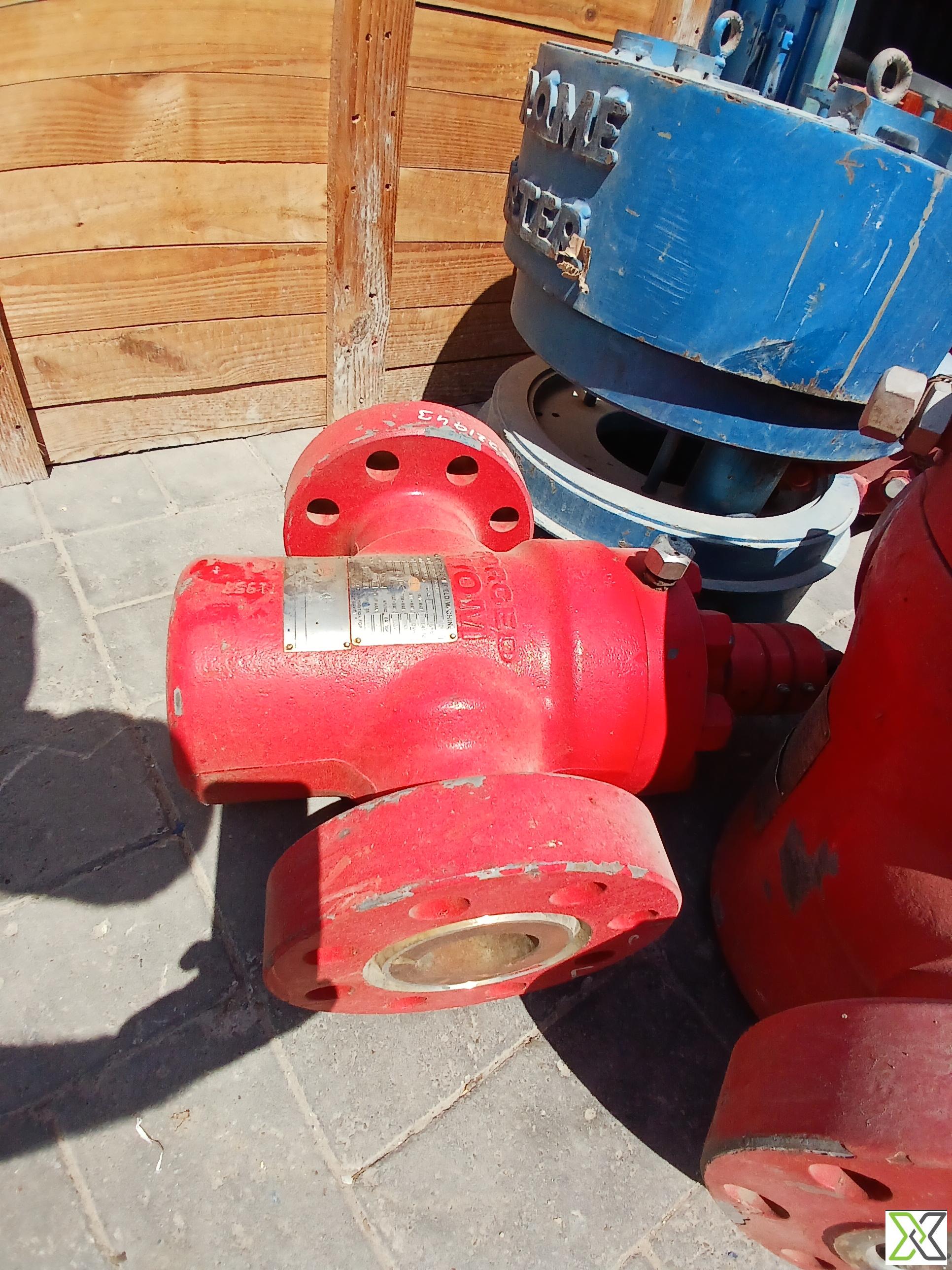

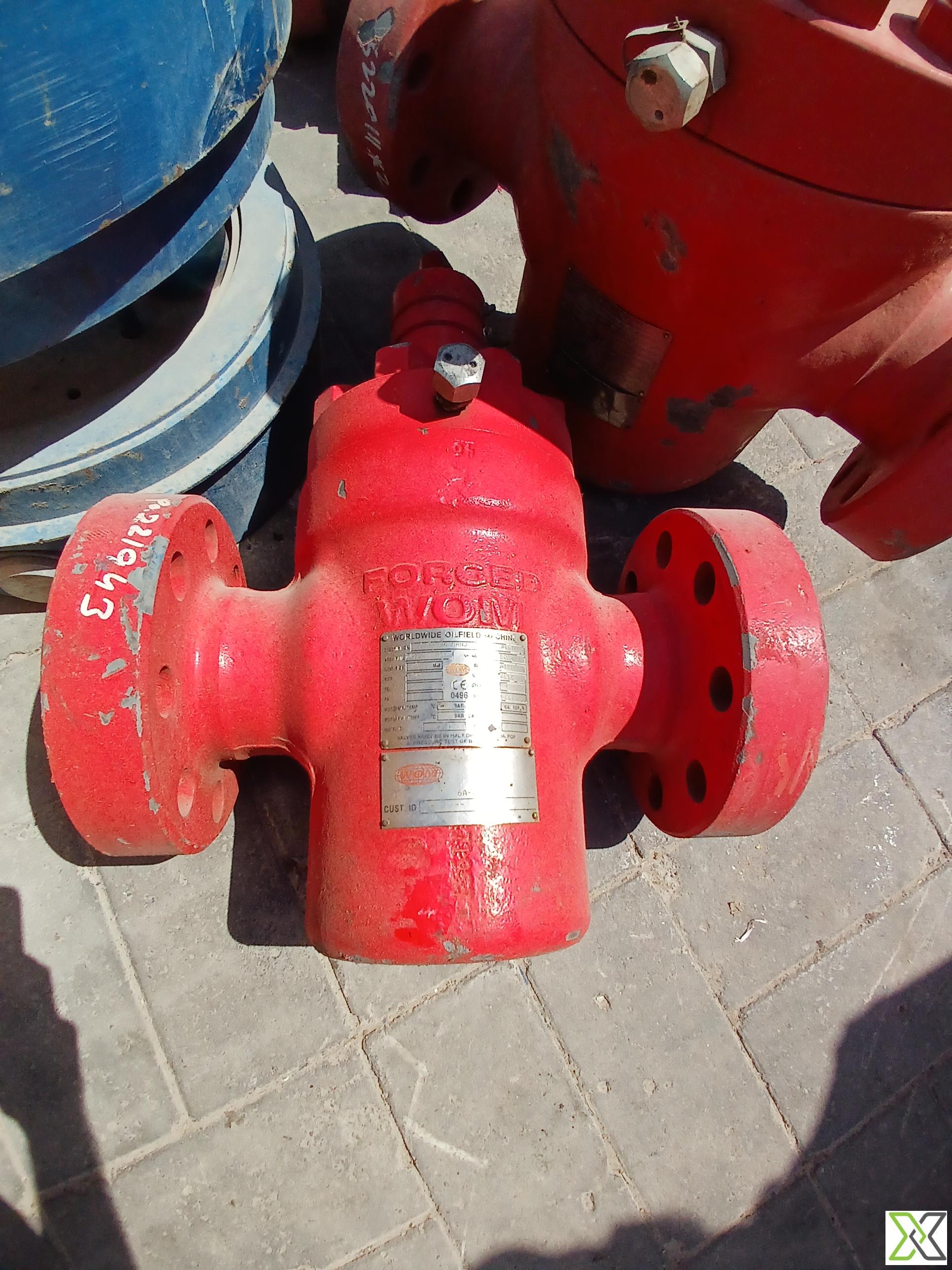

Red Gate Valve – Manual 3" 1502 RTJ, 15,000 PSI

ReflowX SKU: REF-3318

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Worldwide Oilfield Machine (WOM)
Equipment code

Get Quotation Whatsapp

Short Description

Manual 3-inch Red Gate Valve with RTJ connections, rated to 15,000 PSI for high-pressure oilfield service. Built to API 6A PSL-3 / PR-2 with a durable AISI 4130 body and Inconel stem.

Description

Red Gate Valve – Manual 3" 1502 RTJ, 15,000 PSI

The Red Gate Valve Manual Gate Valve 3" – 1502 is a high-performance, manually operated valve engineered for reliable shut-off control in critical high-pressure oil and gas operations. Featuring a 3-inch size with RTJ (Ring-Type Joint) flange connections, this valve is capable of handling pressures up to 15,000 psi (1,034 bar) and temperatures up to 250°F (121°C). It is constructed with a heat-treated AISI 4130 alloy steel body, a corrosion-resistant Inconel stem, and a high-strength alloy steel gate to ensure longevity and integrity under extreme service conditions. The elastomer seat ensures a tight seal even at high pressures. Fully compliant with API 6A / ISO 10423 standards, the valve meets PSL-3 and PR-2 ratings, offering superior reliability, quality, and tested performance for demanding flow control in wellheads, manifolds, and fracturing systems.

Specifications:

– Product Name: Red Gate Valve – Manual
– Model: 1502
– Size: 3 Inches
– End Connection: RTJ (Ring-Type Joint Flange)
– Maximum Pressure: 15,000 psi (1,034 bar)
– Temperature Rating: Up to 250°F (121°C)
– Standard Compliance: API 6A / ISO 10423
– Product Specification Level (PSL): 3
– Performance Requirement (PR): 2
– Body Material: AISI 4130 Heat-Treated Alloy Steel
– Gate Material: High-Strength Alloy Steel
– Stem Material: Inconel (Corrosion & High-Temp Resistant)
– Seat Material: Elastomer (High-Pressure Sealing)
– Serial Number: 1019824
– Design Features: Manual Operation, High Integrity Sealing, High Durability
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	1502
Color	Red
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Manual Gate Valve
Failure Action	fail-in-place
Nominal Diameter	3 inches
Normal Operating Pressure	15,000 PSI
Normal Operating Temperature	-20°F to +250°F
Piping Class	API 6A
UNSPSC Code	40141600
